LUOM OZK7 2-Port USB-C KVM Switch 8K 100W PD
Share two USB-C computers on one 8K display with 100W charging and three USB 2.0 ports
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share two USB-C computers on one 8K monitor with one-button switching
- Charge the active laptop at up to 100 W while you work
- Connect keyboard, mouse and printer to three USB 2.0 ports shared across both PCs
- Extract stereo sound through the 3.5 mm jack when switching sources
- Choose DisplayPort 1.4 or HDMI 2.1 output to match your display
Two-computer USB-C KVM

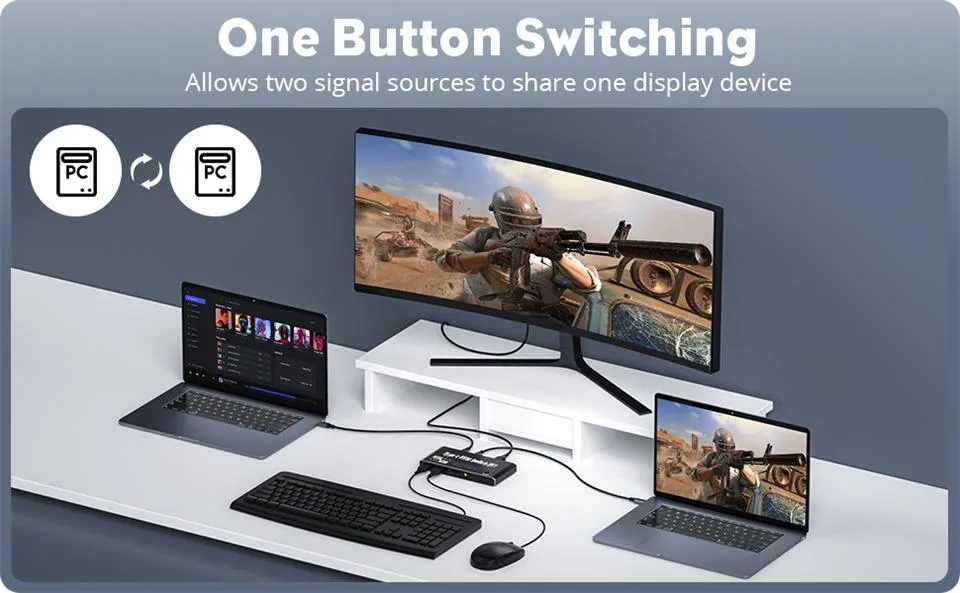

The LUOM OZK7 lets two USB-C laptops or desktops share a single 8K monitor, keyboard, mouse and up to three USB 2.0 peripherals. A front-panel button switches the active system instantly while keeping the display and accessories connected. Audio passes through a 3.5 mm jack so headsets or speakers stay wired once.
Build integration and cabling

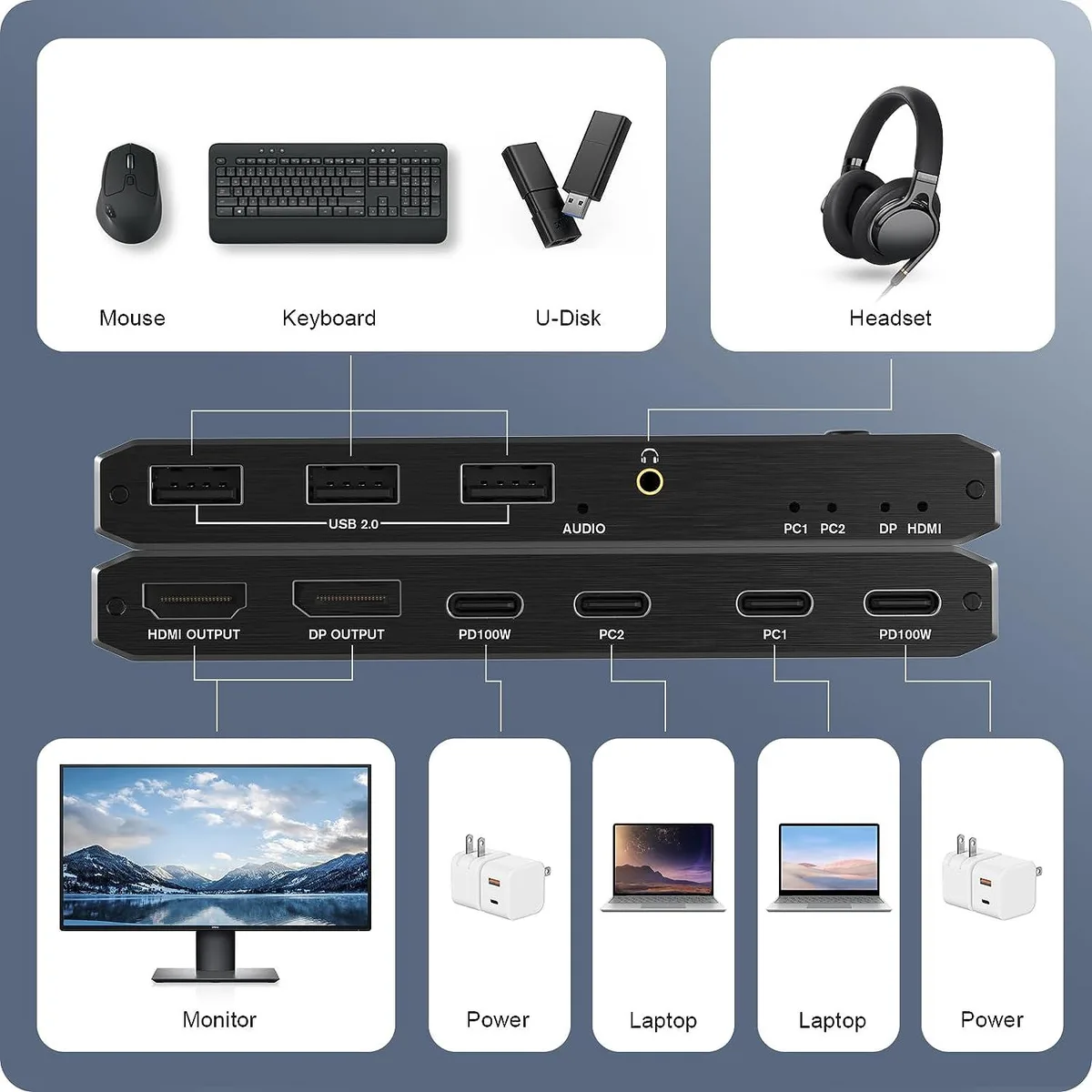

Each computer connects with the included 1.2 m USB-C Gen 2 cable and draws up to 100 W Power Delivery for charging while in use. The switch itself requires the supplied USB-A to USB-C power cable to operate. Video leaves the box over either a DisplayPort 1.4 or HDMI 2.1 port, so you choose the cable that matches your monitor. Three downstream USB 2.0 ports handle input devices, printers or flash drives without re-plugging.
Sustained-operation behaviour
The unit supports 7680×4320 at 60 Hz and 4K at up to 144 Hz with RGB 4:4:4 colour, maintaining full bandwidth during long work sessions. HDCP 2.3 compliance keeps protected content flowing without interruption. Because switching is manual only, there is no automatic handshake delay when you change sources, and the 100 W charge path remains active on the selected port throughout the session.
Highlights
- Share two USB-C computers on one 8K monitor with one-button switching
- Charge the active laptop at up to 100 W while you work
- Connect keyboard, mouse and printer to three USB 2.0 ports shared across both PCs
- Extract stereo sound through the 3.5 mm jack when switching sources
- Choose DisplayPort 1.4 or HDMI 2.1 output to match your display
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK7 |
| Model | OZK7 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3 x USB 2.0 Output Port,two Computers share one set,you can connect 3 x USB2.0 Outp |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
What resolution and refresh rate does the HDMI 2.1 output support?
The HDMI 2.1 port delivers 8K at 60 Hz or 4K at 120 Hz and 144 Hz.
Does the KVM switch need its own power supply for all-day operation?
Yes, the included USB-C to USB-A cable must be connected to power the unit while it runs.
Which cables come in the box to connect two USB-C computers?
Two 1.2 metre USB-C Gen 2 cables are supplied for the computer links.
