LUOM
LUOM OZK7 2 Port USB-C 8K KVM Switch
A dual-PC USB-C KVM switch driving one DisplayPort 1.4 or HDMI 2.1 monitor at 8K 60 Hz or 4K 144 Hz, with 100 W power delivery, three USB 2.0 ports and a 3.5 mm audio jack
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Switch two USB-C computers with one button
- Drive an 8K 60 Hz or 4K 144 Hz display via DP 1.4 or HDMI 2.1
- Charge the active laptop at 100 W while working
- Share three USB 2.0 peripherals across both PCs
- Extract stereo sound through the 3.5 mm audio jack
Two-computer USB-C KVM switch

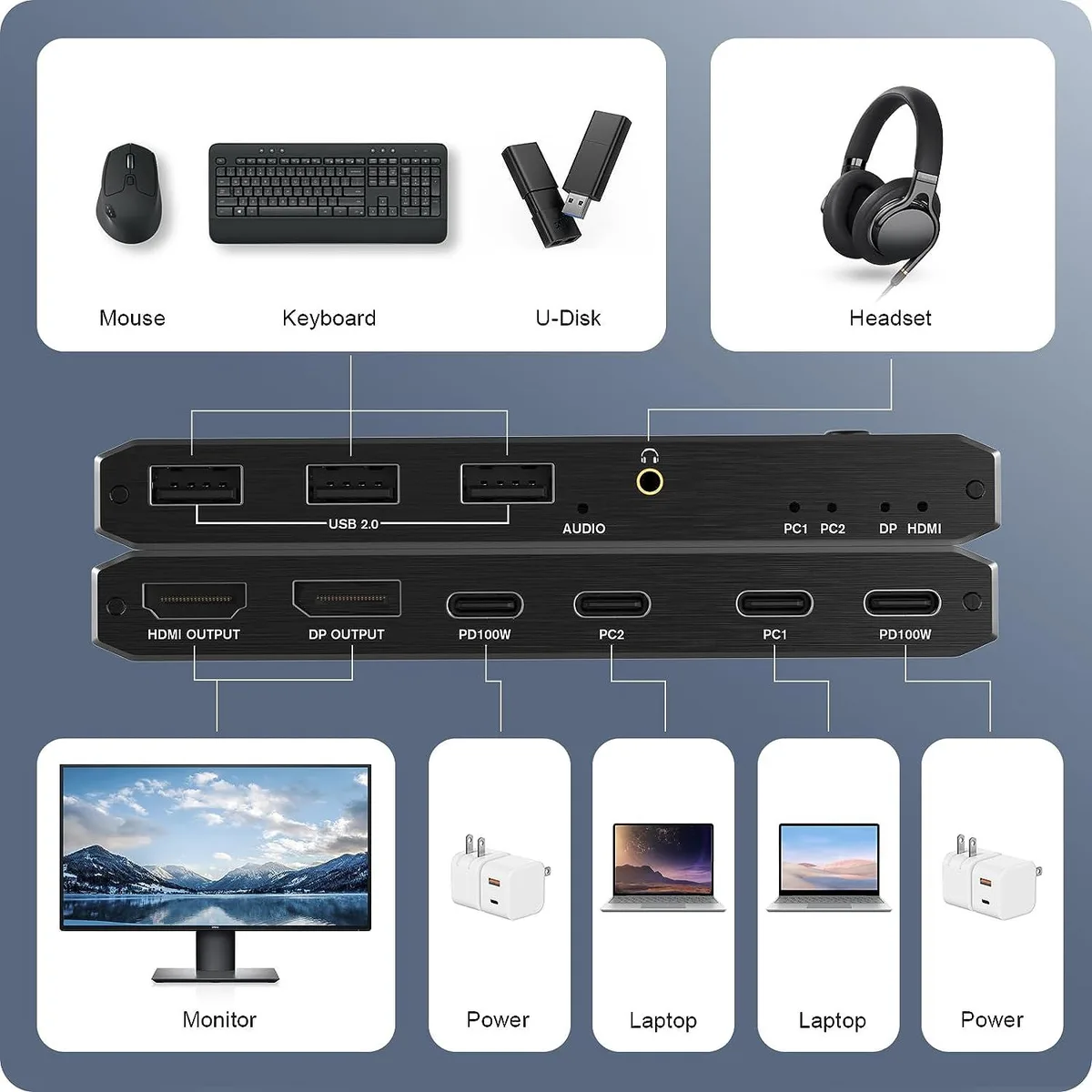

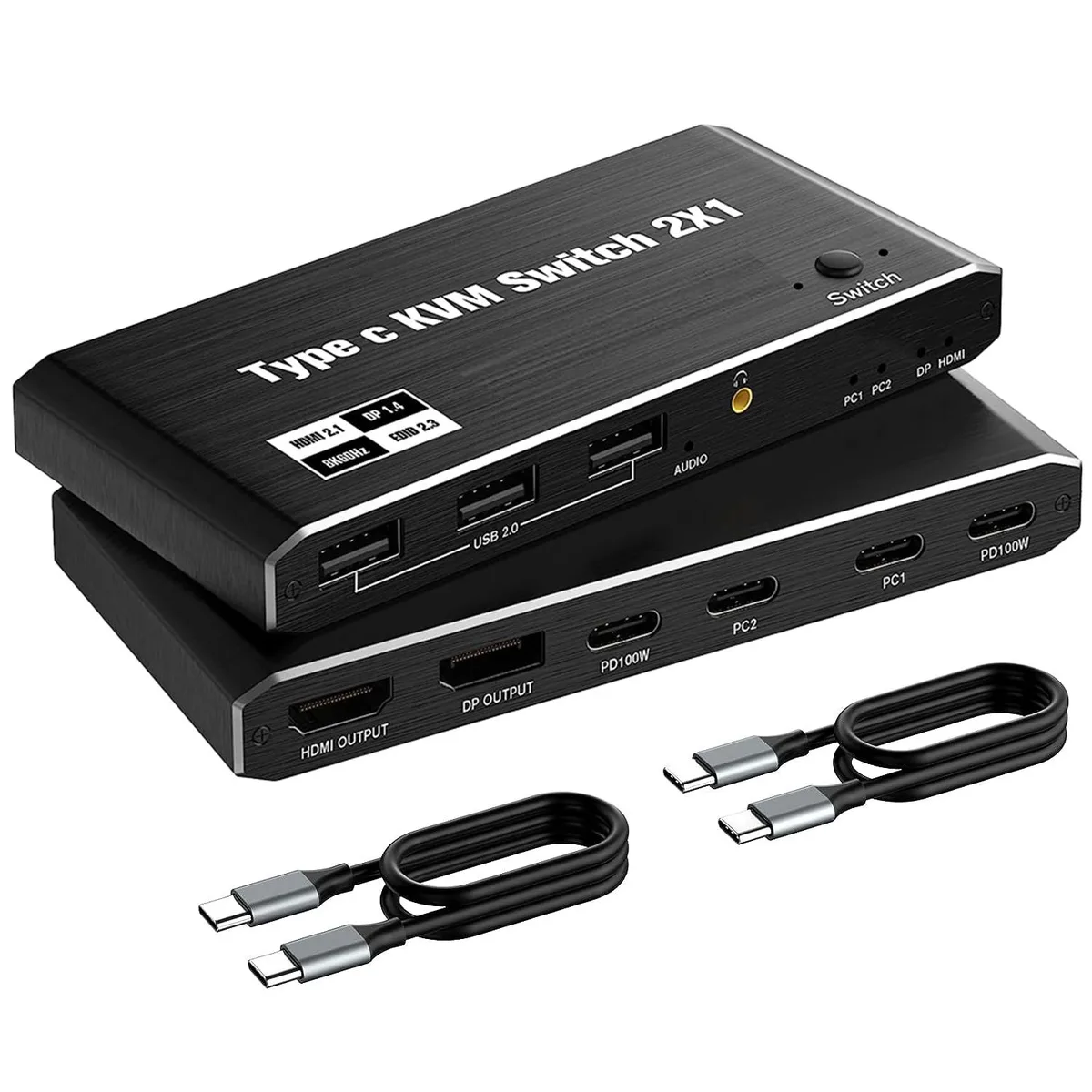

The LUOM OZK7 lets two USB-C laptops or desktops share one DisplayPort 1.4 or HDMI 2.1 monitor, three USB 2.0 peripherals and a 3.5 mm audio jack. Press the front button to swap sources in about three seconds. The package includes two 1.2 metre USB-C Gen 2 cables and a USB-A-to-C power cable that must be connected for operation.
Passive cooling and 100 W power delivery
No fans are present, so the unit runs silently while drawing power from the supplied USB-A-to-C cable. Each upstream port can deliver up to 100 W to its connected computer, keeping both laptops charged during long sessions. HDCP 2.3 compliance ensures protected 8K60 or 4K144 content plays without interruption.
Desktop footprint and cable needs
At 5.43 by 5.35 by 1.46 inches and 9.52 ounces, the switch sits unobtrusively on a desk. You supply the monitor cable for either DisplayPort or HDMI output, and the included cables reach most side-by-side laptops. It does not support hot-key switching, so hands-on button presses are required, and it cannot drive two monitors simultaneously.
Highlights
- Switch two USB-C computers with one button
- Drive an 8K 60 Hz or 4K 144 Hz display via DP 1.4 or HDMI 2.1
- Charge the active laptop at 100 W while working
- Share three USB 2.0 peripherals across both PCs
- Extract stereo sound through the 3.5 mm audio jack
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK7 |
| Model | OZK7 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3 x USB 2.0 Output Port,two Computers share one set,you can connect 3 x USB2.0 Outp |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
How do I install the LUOM OZK7 and which cable must I connect first?
Connect the supplied USB-C to USB-A power cable to the switch before attaching the two 1.2 meter USB-C Gen-2 cables to your PCs, then link your monitor via DisplayPort 1.4 or HDMI 2.1 and press the front Switch button to change sources.
What maintenance or replacement will the LUOM OZK7 need over time?
No user-serviceable parts are inside; keep the ventilation slots clear of dust and replace only the external USB-C Gen-2 or video cables if they become damaged.
What limit appears first during sustained 8K@60Hz use on the LUOM OZK7?
The 100 W Power Delivery ceiling is reached before thermal throttling, so a laptop drawing more than 100 W will stop charging while the switch continues passing video.
