LUOM OZK5 2-Port USB-C KVM Switch 8K DP 1.4 HDMI 2.1
A two-port USB-C KVM switch shares one DisplayPort 1.4 or HDMI 2.1 monitor plus four USB 2.0 devices between two computers with push-button switching
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one 8K monitor between two USB-C computers via DisplayPort 1.4 or HDMI 2.1
- Switch instantly with top-mounted push buttons and LED status indicators

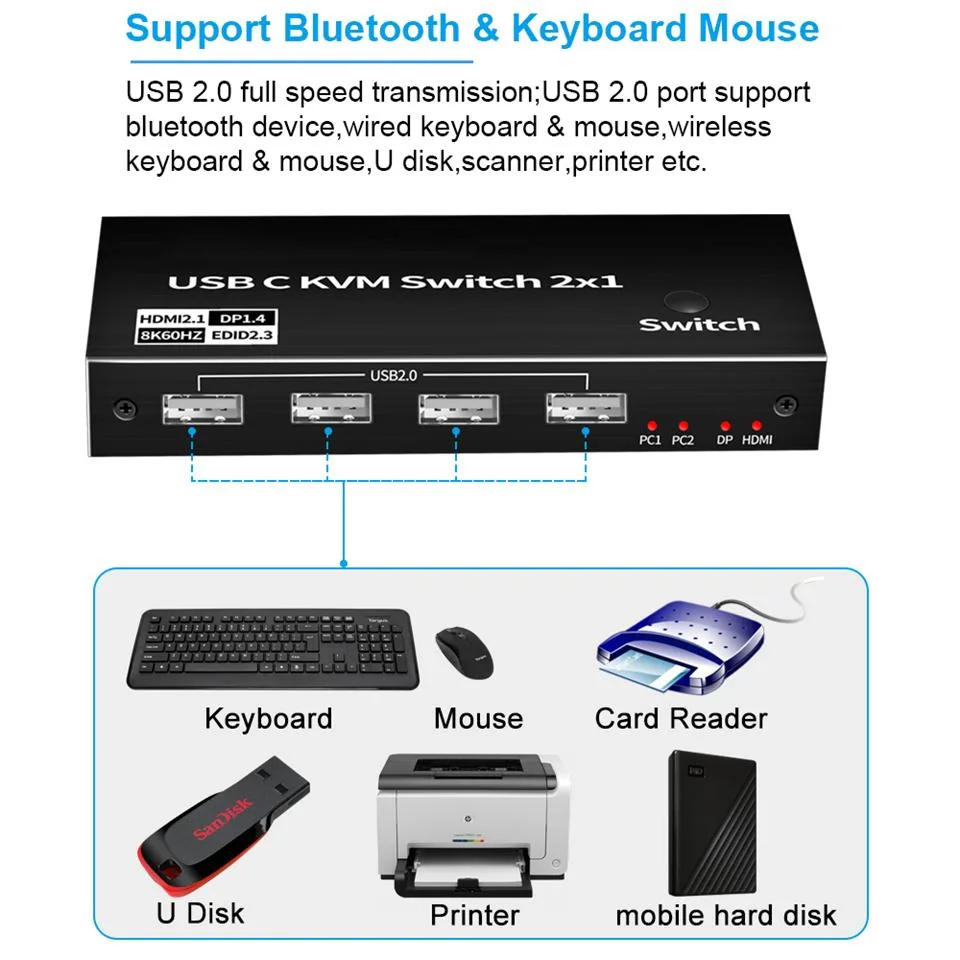

- Connect keyboard, mouse and two USB 2.0 peripherals through four USB-A ports
- Includes two 1.2 metre USB-C Gen 2 cables and a USB-A to USB-C power cable
- Compact 5.43 x 5.35 x 1.46 inch design fits any desk setup
Two-Computer USB-C KVM Switch
This LUOM OZK5 switch lets two USB-C computers share one DisplayPort or HDMI monitor plus four USB 2.0 peripherals. A top-mounted push button toggles the active system, and LED indicators show the current selection. It supports video up to 7680 by 4320 resolution and requires external power via the included USB-A-to-USB-C cable.
Desk Users Needing Simple Dual-PC Control
The switch suits anyone who moves a single keyboard, mouse, printer and 8K monitor between two laptops or desktops. It does not suit buyers who need more than two computer ports, who want automatic switching without pressing a button, or who require USB 3.x or Thunderbolt peripheral bandwidth beyond 480 megabits per second.
Build Integration With Included Cables

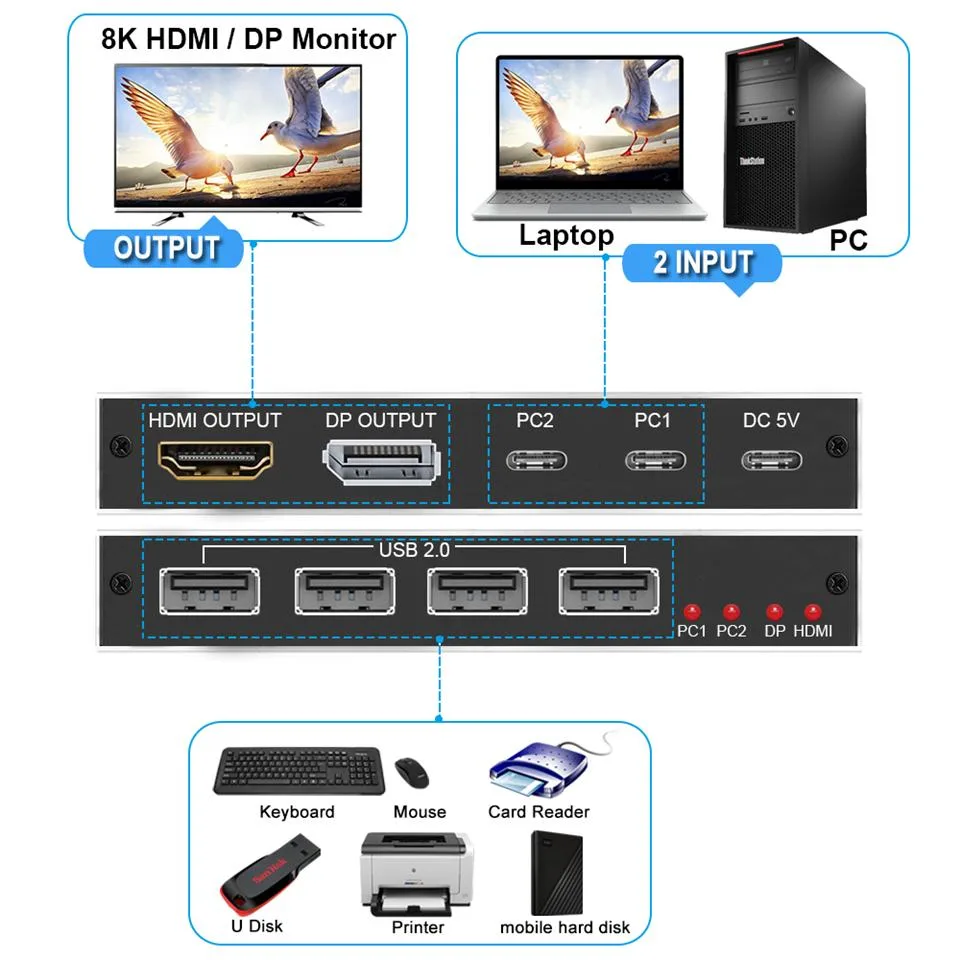

Two 1.2-metre USB-C Gen 2 cables connect the host systems, while the power cable draws from any USB-A charger or port. The unit provides one DisplayPort 1.4 and one HDMI 2.1 output — choose either for the monitor — and four USB 2.0 Type-A ports for peripherals, freeing the computers from extra dongles.
Highlights
- Share one 8K monitor between two USB-C computers via DisplayPort 1.4 or HDMI 2.1
- Switch instantly with top-mounted push buttons and LED status indicators
- Connect keyboard, mouse and two USB 2.0 peripherals through four USB-A ports
- Includes two 1.2 metre USB-C Gen 2 cables and a USB-A to USB-C power cable
- Compact 5.43 x 5.35 x 1.46 inch design fits any desk setup
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
My computers only have USB-C ports — will the included 1.2 meter USB Gen 2 cables connect them directly to the LUOM OZK5?
Yes, the package contains two 1.2 meter USB-C 3.1 Gen 2 cables that plug straight into the switch's two USB-C PC input ports.
I plan to keep my 4K 120 Hz monitor — can the OZK5 drive it over HDMI 2.1?
The HDMI 2.1 output supports 4K at 120 Hz and 144 Hz when the host USB-C port provides Thunderbolt 4 alternate mode.
After I press the push button on top, how do I know the OZK5 has actually switched to the second computer?
LED indicators on the unit light up to show which of the two USB-C inputs is currently active.
