LUOM
LUOM OZK5 2-Port USB-C KVM Switch 8K 60Hz DP/HDMI
Share one 8K 60 Hz monitor and four USB 2.0 devices between two USB-C computers with push-button switching
- TypeDisplayPort, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one 8K monitor between two USB-C computers via DP 1.4 or HDMI 2.1 output
- Switch instantly with front push buttons and LED indicators for clear active-port status

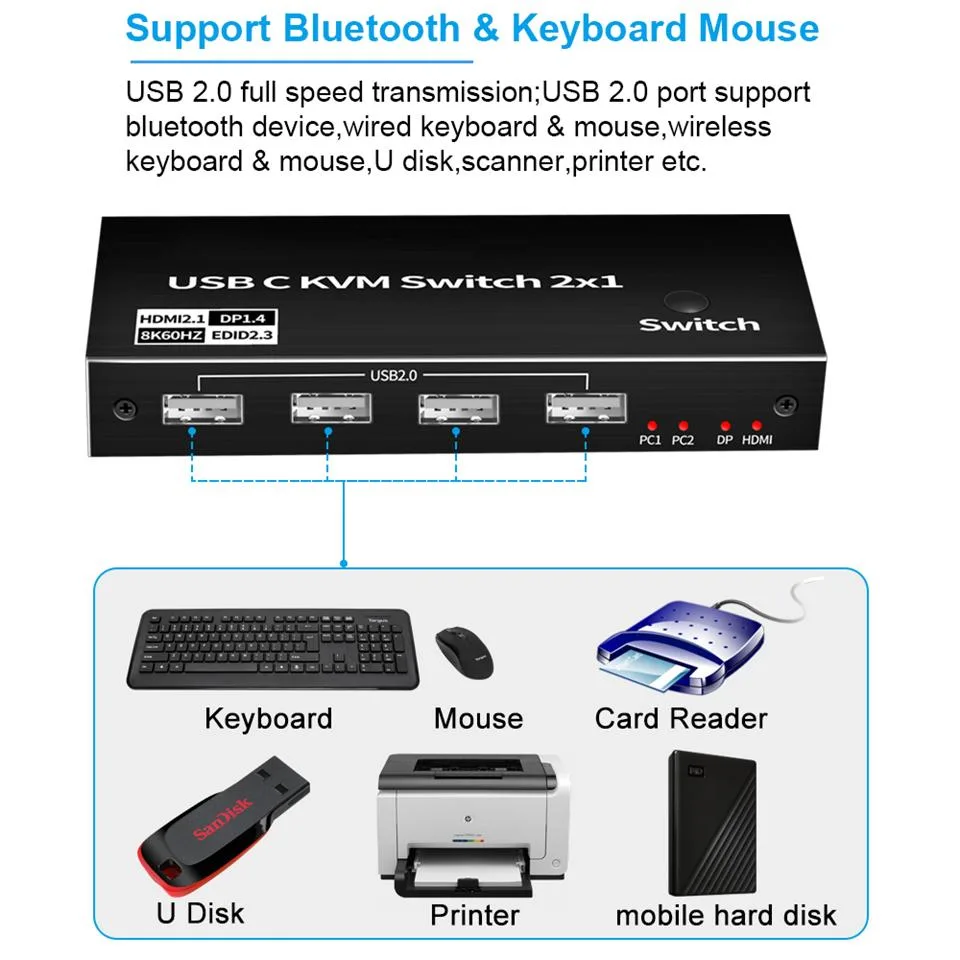

- Connect four USB 2.0 peripherals once and access them from either system
- Includes two 1.2 metre USB-C Gen 2 cables and a USB-A to USB-C power cable
- Compact 5.43 x 5.35 x 1.46 inch design fits tight desk spaces
What it is and who it's for
The LUOM OZK5 is a two-port USB-C KVM switch that lets two computers share one DisplayPort or HDMI monitor plus four USB 2.0 peripherals. It supports resolutions up to 7680 x 4320 at 60 Hz with DSC and handles 4K at 120 Hz or 144 Hz. The unit is aimed at users who want a single desk setup for dual-system control in home offices, test benches or study spaces.
What to check before ordering
Both computers must provide video and data over USB-C with DisplayPort Alternate Mode. Thunderbolt 4 ports are required for 8K 60 Hz or 4K 120 Hz operation; Thunderbolt 3 or USB-C Gen 2 ports max out at 4K 60 Hz. The switch needs external power via the included USB-A to USB-C cable, and your monitor cables must not exceed 2.0 metres for 8K signals.

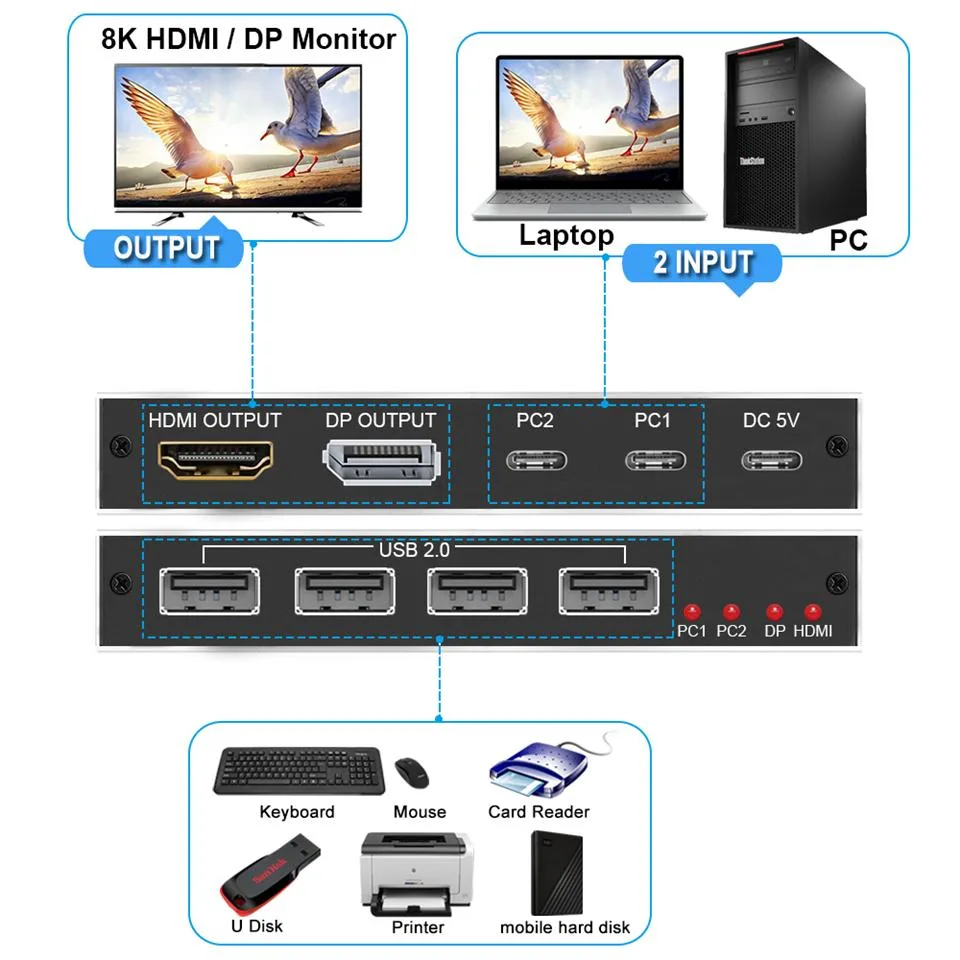

How it fits into a build
The switch sits between the two USB-C hosts and the display, freeing desk space by eliminating a second monitor, keyboard and mouse. Four USB 2.0 ports accommodate a keyboard, mouse and two extra devices such as a printer or storage drive. A front push-button toggles the active system, while LED indicators show the selected port. The supplied 1.2 metre USB-C Gen 2 cables connect each computer to the switch.
Highlights
- Share one 8K monitor between two USB-C computers via DP 1.4 or HDMI 2.1 output
- Switch instantly with front push buttons and LED indicators for clear active-port status
- Connect four USB 2.0 peripherals once and access them from either system
- Includes two 1.2 metre USB-C Gen 2 cables and a USB-A to USB-C power cable
- Compact 5.43 x 5.35 x 1.46 inch design fits tight desk spaces
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | DisplayPort, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
What comes in the box and what cables do I still need to buy?
The box includes the KVM switch, a USB-A-to-C power cable, two 1.2 m USB-C Gen 2 cables and a manual. You must supply your own DisplayPort 1.4 or HDMI 2.1 monitor cable.
Which USB-C host capability do I need for 8K 60 Hz?
Thunderbolt 4 hosts can drive 8K 60 Hz over either DP 1.4 or HDMI 2.1. Thunderbolt 3 or USB-C Gen 2 hosts are limited to 4K 60 Hz.
What does the 8K 60 Hz rating mean once the switch is in my system?
With a Thunderbolt 4 laptop you can run one monitor at 7680×4320 60 Hz with DSC; otherwise the highest supported mode is 4K 60 Hz.
