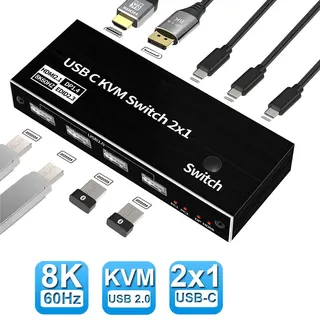

LUOM OZK5 2-Port USB-C 8K KVM Switch
A 2-port USB-C KVM switch shares one 8K DisplayPort or HDMI monitor, keyboard, mouse and four USB 2.0 devices between two computers with push-button switching
- TypeHDMI, USB
- PC ConnectorsUSB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680*4320
- PC SelectionPush Buttons
- Share one 8K monitor and four USB 2.0 devices between two USB-C computers
- Switch instantly with top-mounted push buttons and LED status indicators
- Supports 8K at 60 Hz via DisplayPort 1.4 or HDMI 2.1 with DSC
- Includes two 1.2 m USB-C Gen 2 cables and a USB-A to USB-C power cable
- Compact 5.43 × 5.35 × 1.46 in design weighing 9.52 oz
Two-Computer USB-C KVM
This LUOM OZK5 switch lets two USB-C computers share one DisplayPort or HDMI monitor plus a keyboard, mouse and two USB 2.0 peripherals. It supports resolutions up to 7680 x 4320 at 60 Hz with DSC and 4K at 144 Hz. A top-mounted button toggles the active system and LED indicators show the current selection.
Replaces Manual Cable Swapping
Instead of unplugging video and USB cables each time you change machines, the switch routes everything through a single press. The jump is worth it when you move between two laptops or a laptop and a desktop several times a day and need 8K@60Hz or 4K@144Hz without re-cabling. Auto-scan can cycle every three seconds for unattended monitoring.

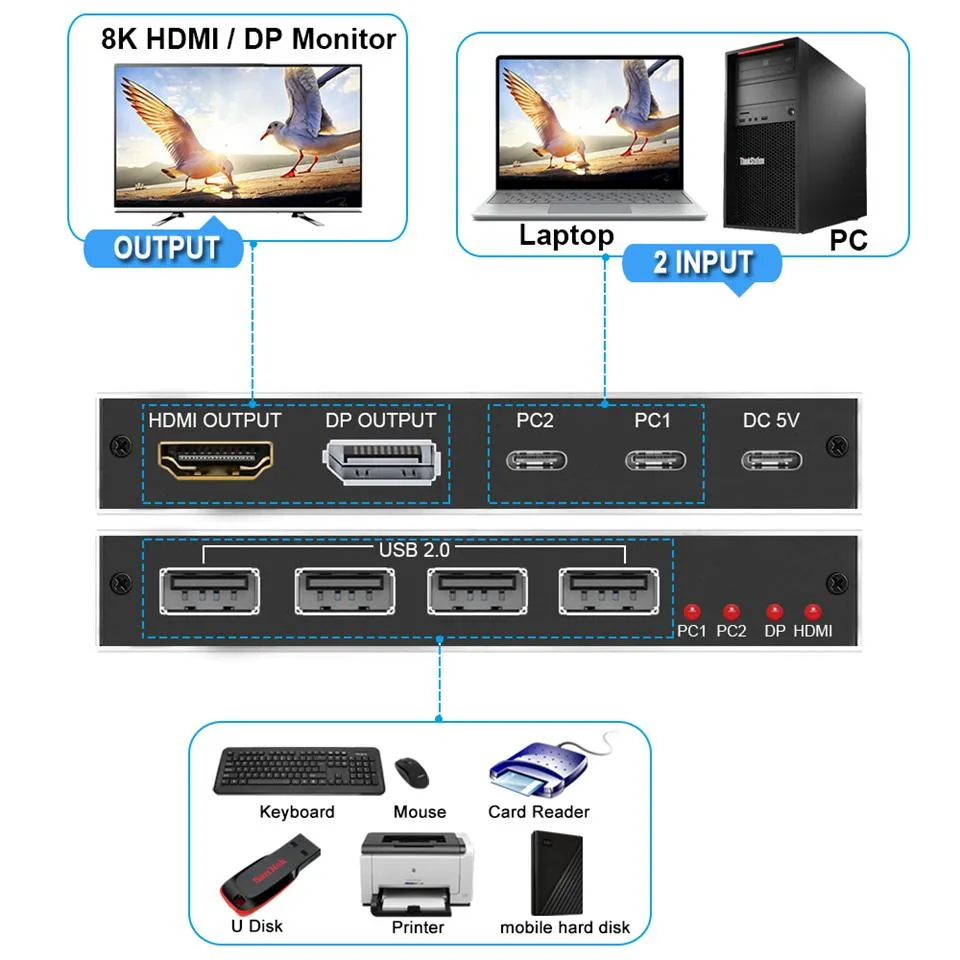

Fits a Dual-System Desk

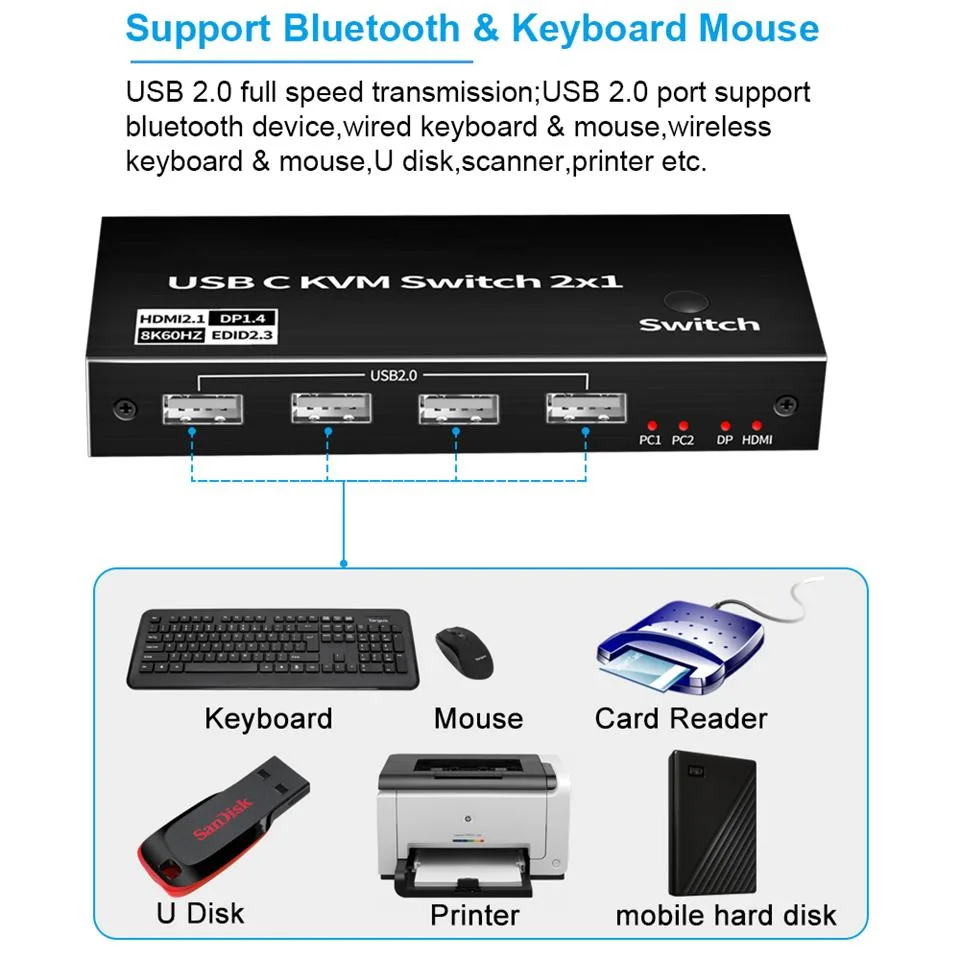

Each computer connects with the included 1.2 metre USB-C 3.1 Gen 2 cables while the monitor uses your own DisplayPort 1.4 or HDMI 2.1 cable up to two metres. Four USB 2.0 Type-A ports provide 480 Mbps bandwidth for keyboards, mice, flash drives or other low-speed devices. External power is required via the supplied USB-A to USB-C cable from any USB charger or port.
Highlights
- Share one 8K monitor and four USB 2.0 devices between two USB-C computers
- Switch instantly with top-mounted push buttons and LED status indicators
- Supports 8K at 60 Hz via DisplayPort 1.4 or HDMI 2.1 with DSC
- Includes two 1.2 m USB-C Gen 2 cables and a USB-A to USB-C power cable
- Compact 5.43 × 5.35 × 1.46 in design weighing 9.52 oz
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK5 |
| Model | OZK5 |
| Type | HDMI, USB |
| PC Connectors | USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680*4320 |
| PC Selection | Push Buttons |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment |
| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 4 x USB2.0 Output Port,two Computers share one set,you can connect 4xUSB2.0 Output to |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | • 1 x USB C Thunderbolt 4 KVM Switch • 1 x USB Power Cable(Type A to Type C) • 2 x 1.2 meter USB Gen 2 Cable(Type C to Type C) • 1 x User Manual |
Questions about this item
What cables come in the box to connect two laptops and power the OZK5?
The package includes two 1.2 metre USB-C 3.1 Gen 2 cables for the computers and one USB-A to USB-C cable for external power.
How do you switch between the two connected PCs, and what mistake should be avoided?
Press the push button on top of the unit; the common error is forgetting to plug the USB-A to USB-C power cable so the switch never receives power.
Which USB ports on the switch will need replacement cables first under heavy peripheral use?
The four USB 2.0 Type-A ports run at 480 Mbps and their cables wear fastest when flash drives or hubs are swapped frequently.
