LUOM
LUOM OZK4 2-Port HDMI 2.1 KVM Switch 8K@60Hz
Share one keyboard, mouse and display between two computers with 8K 60 Hz, 4K 120 Hz and 1080p 240 Hz support via HDMI 2.1 and USB 3.0
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution7680×4320
- PC SelectionManual Switch
- Control two computers with one keyboard, mouse and monitor via 2-port HDMI 2.1 KVM
- View 8K@60Hz, 4K@120Hz and 1080P@240Hz on a single display with HDCP 2.3 support
- Switch instantly between PCs using front button or Ctrl+Shift hotkeys without moving between workstations
- Connect HDMI 2.1 and USB-C sources plus four USB 3.0 peripherals through one compact 111.8×63.2×24.5 mm unit
- Plug-and-play operation across Windows, macOS, Linux and Unix with high-current drive support
Two-computer HDMI 2.1 KVM

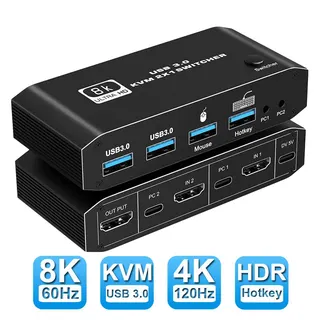

The LUOM OZK4 is a new KVM switch that lets one keyboard, one mouse and one display control two computers. It accepts two HDMI 2.1 inputs and two USB-C inputs, plus four USB 3.0 ports for peripherals, and sends a single HDMI 2.1 signal to the monitor. A front-panel button and a Ctrl+Shift hotkey both change the active system. HDCP 2.3 is supported.
Replaces dual-cable desk clutter
Instead of swapping cables or running two monitors, the switch consolidates video and USB traffic through one box. The jump is worth it when you regularly move between a desktop and a laptop, or a workstation and a game console, and want instant switching without unplugging devices. Auto-scan cycles every 3 seconds if you prefer hands-free rotation.
Suits multi-system creators and gamers
Users who need 8K at 60 Hz, 4K at 120 Hz or 1080p at 240 Hz on a single screen will benefit from the HDMI 2.1 bandwidth. It works with Windows, macOS and Linux without drivers. Buyers who need more than two computer ports, remote management or USB-C video alt-mode on the output should look at a different class of switch.
Highlights
- Control two computers with one keyboard, mouse and monitor via 2-port HDMI 2.1 KVM
- View 8K@60Hz, 4K@120Hz and 1080P@240Hz on a single display with HDCP 2.3 support
- Switch instantly between PCs using front button or Ctrl+Shift hotkeys without moving between workstations
- Connect HDMI 2.1 and USB-C sources plus four USB 3.0 peripherals through one compact 111.8×63.2×24.5 mm unit
- Plug-and-play operation across Windows, macOS, Linux and Unix with high-current drive support
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK4 |
| Model | OZK4 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680×4320 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Application | HDMI 2.1 KVM USB switch: KVM Switch allows control 2 computer with one set of controls (keyboard and mouse) and display screen. Realizes 2 in and 1 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.1 HDCP 2.3 Resolution: Support 1080P/1080@240Hz, 3840x2160p, 4K/60Hz/120Hz,8K@60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Two Switching method: 1.Press the "Select" button on the KVM switch panel to switch between the two source devices;2.use hotkey switch(Ctrl+Shift+ 1 / 2 to PC1 / PC2); Highly integrated digital chip combination, plug and play |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
Questions about this item
What cables and ports does the OZK4 need to connect two computers and one monitor?

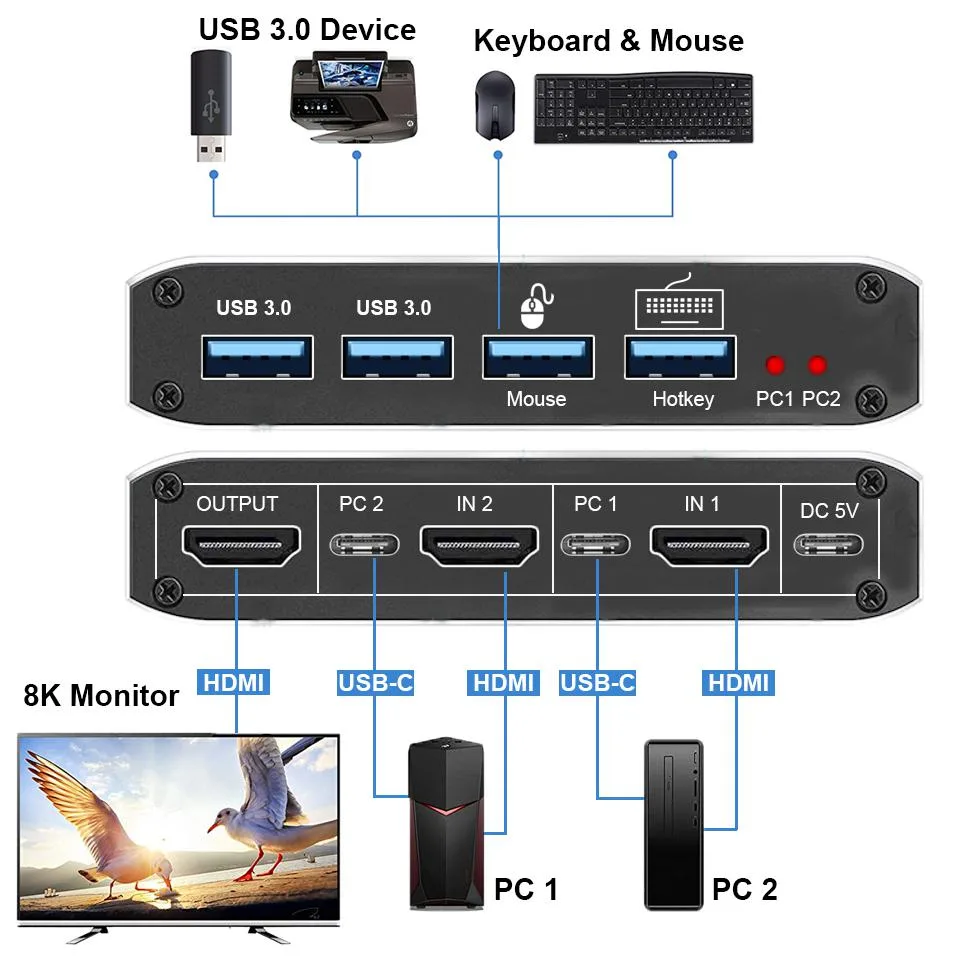

Each computer connects with one HDMI 2.1 cable and either a USB-C or USB 3.0 cable for keyboard and mouse. The monitor plugs into the single HDMI 2.1 output.
How do I switch between the two PCs, and what is the common mistake?
Press the Select button on the front panel or use the Ctrl+Shift+1/2 hotkeys. The common mistake is forgetting to connect the USB cable for the second PC, so keyboard and mouse do not switch with the video.
What might need replacement after heavy daily use?
The HDMI 2.1 and USB 3.0 cables can wear from frequent plugging. The front-panel Select button is mechanical and may lose click feel over time. The unit itself has no user-serviceable parts.
