LUOM

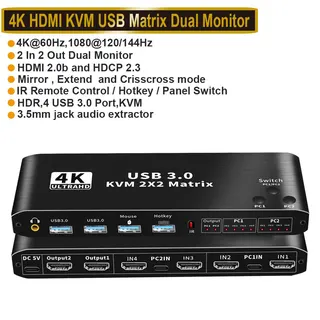

LUOM OZK3-1 2×2 HDMI KVM Switch 4K 60Hz
Lets you control two computers with one keyboard, mouse and dual monitors at 4K 60 Hz with USB 3.0 and audio
- TypeHDMI, USB
- PC ConnectorsHDMI and USB-C
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons/Hot Keys
- Control two computers with one keyboard and mouse across dual monitors
- Switch instantly via front-panel buttons, hotkeys or IR remote
- 4K at 60 Hz and 1080p at 144 Hz for sharp, fluid visuals
- HDMI 2.0b and HDCP 2.3 keep protected content flowing
- Two USB 3.0 ports add fast peripheral sharing
Dual-Computer Dual-Monitor Control
The LUOM OZK3-1 is a 2×2 HDMI KVM matrix that lets one keyboard, one mouse and two displays command two computers or laptops. It targets home-office workers and streamers who need simultaneous extended desktops across both screens without unplugging cables. Buyers who require more than two host ports or single-monitor operation should look elsewhere.

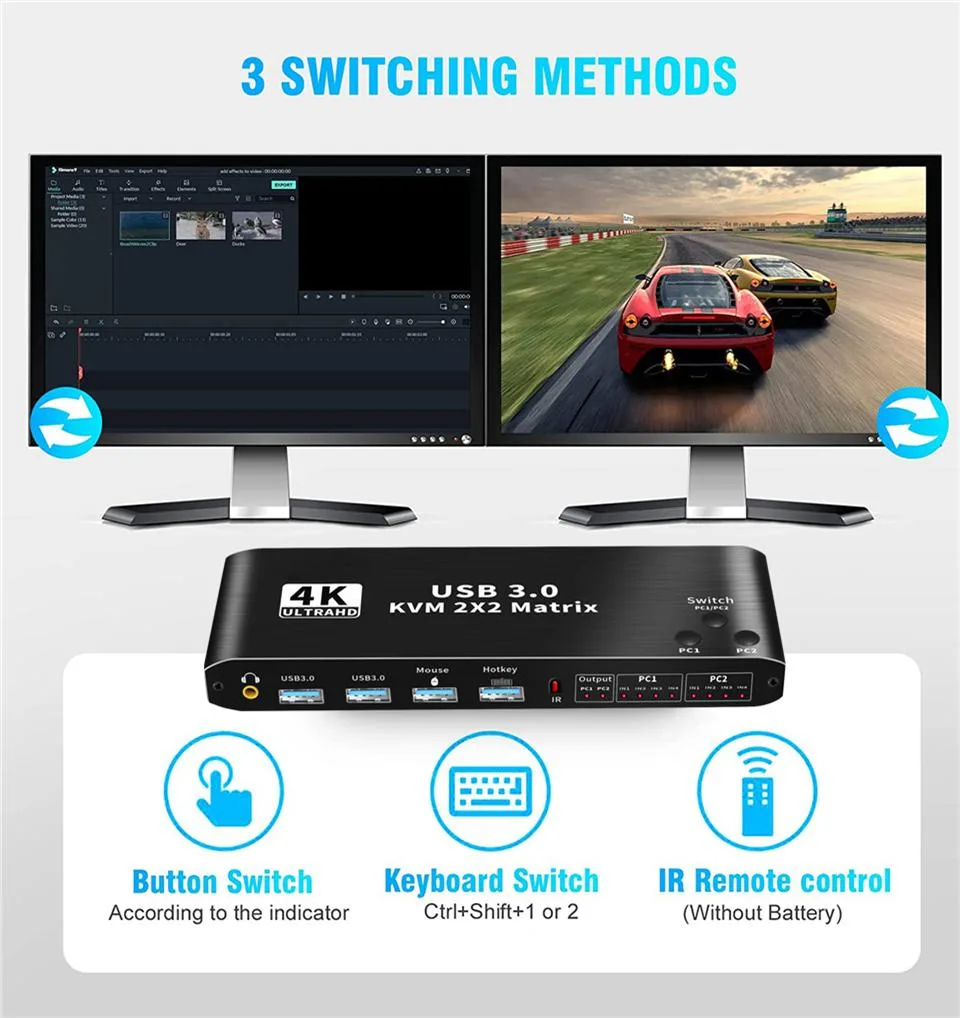

Plug-and-Play With Button Hotkey Remote

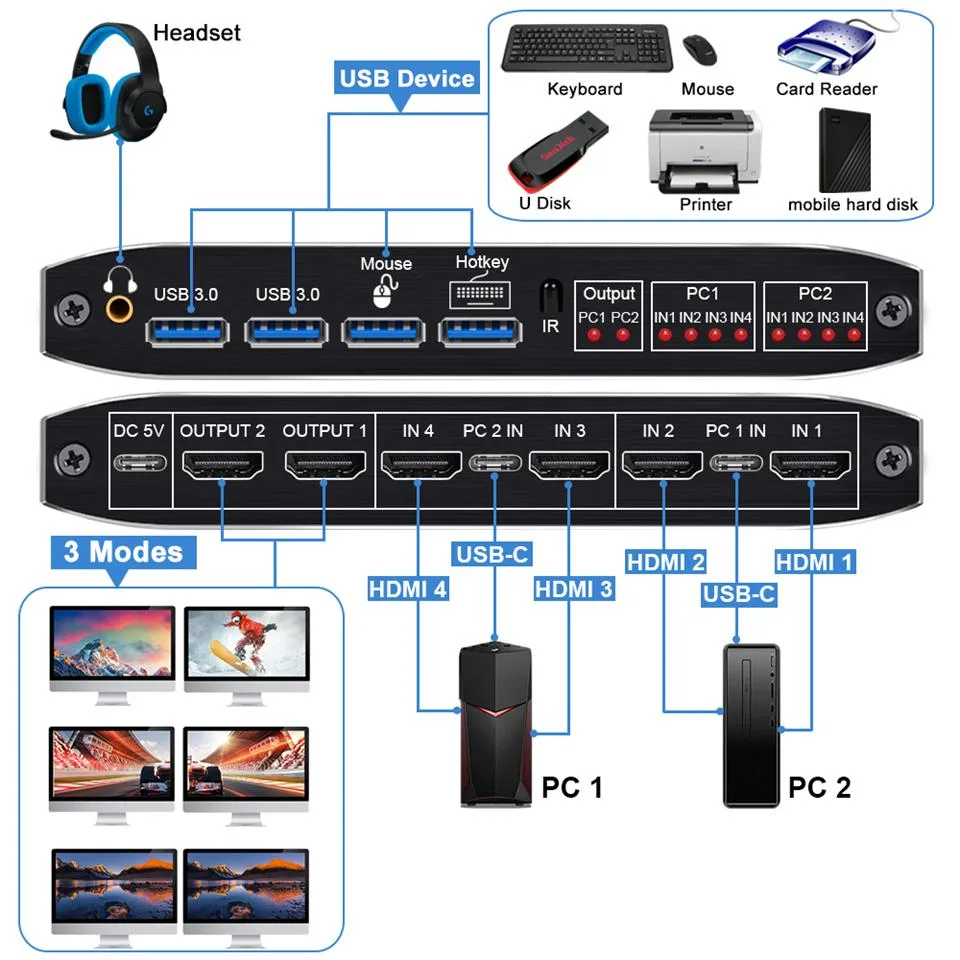

Connect each host via its HDMI and USB-C or USB-A cables, attach two monitors and the bundled USB 3.0 hub, then power the unit. Switching is instant using front-panel buttons, configurable hotkeys or the IR remote. The only common issue is forgetting to enable HDCP 2.3 on a source, which blocks 4K 60 Hz handshake until the setting is changed.
HDMI 2.0b 4K 60 Hz 4:4:4 Support
The decisive spec is HDMI 2.0b with HDCP 2.3 delivering 3840×2160 at 60 Hz in full RGB 4:4:4, plus 1080p at 144 Hz for high-refresh gaming. If your workflow demands 4K above 60 Hz or 10-bit HDR, this matrix cannot meet that need.
Highlights
- Control two computers with one keyboard and mouse across dual monitors
- Switch instantly via front-panel buttons, hotkeys or IR remote
- 4K at 60 Hz and 1080p at 144 Hz for sharp, fluid visuals
- HDMI 2.0b and HDCP 2.3 keep protected content flowing
- Two USB 3.0 ports add fast peripheral sharing
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK3-1 |
| Model | OZK3-1 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB-C |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| Audio Features | with Audio |
| USB Features | with USB support |
| Application | KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another. |
| Features | Support HDMI 2.0b HDCP 2.3 Compliant with DVI to HDMI,DP to HDMI Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Supports Extended / Mirror mode Supports Crisscross/Matrix Mode |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI KVM USB Matrix 2 x USB data cable 1 x USB power cable 1 x IR Remote Control(Without AAA battery) 1 x User Manual |
Questions about this item
How do I confirm the LUOM OZK3-1 is switching both monitors at 4K 60 Hz after setup?
The LED indicators on the front panel show which computer is active on each HDMI output; verify both displays report 3840 x 2160 at 60 Hz in their OS settings.
What cables are included and what must I provide to connect two computers and two monitors?
The box contains two USB data cables, one USB power cable, an IR remote (no AAA battery) and a manual; you must supply two HDMI cables per computer (four total) for the dual-monitor links.
Which version of the OZK3-1 should I choose if I need 1080p at 144 Hz on one screen and 4K 60 Hz on the other?
The single model OZK3-1 handles both simultaneously — it supports 1080p at 144 Hz and 3840 x 2160 at 60 Hz on its two HDMI outputs without any version choice.
