LUOM
LUOM OZK2 HDMI KVM Switch 2-Port 4K 60Hz USB 3.0
A 2-port HDMI KVM switch lets you control two computers with one 4K 60 Hz monitor, keyboard, mouse and four USB 3.0 peripherals
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections2 Ports
- Monitor Connections1 Ports
- Video Resolution3840 x 2160
- PC SelectionManual Switch
- Share one keyboard, mouse and monitor across two computers with a single button press
- 4K 60 Hz output at 18 Gbps bandwidth with HDMI 2.0 and HDCP 2.2
- Four USB 3.0 ports let two PCs share printers, drives and other peripherals
- Works with Windows, macOS, Linux and Unix without installing drivers
- Compact 5.43 × 5.35 × 1.46 in design weighs 9.52 oz for easy desk placement
Two-Port HDMI KVM Switch

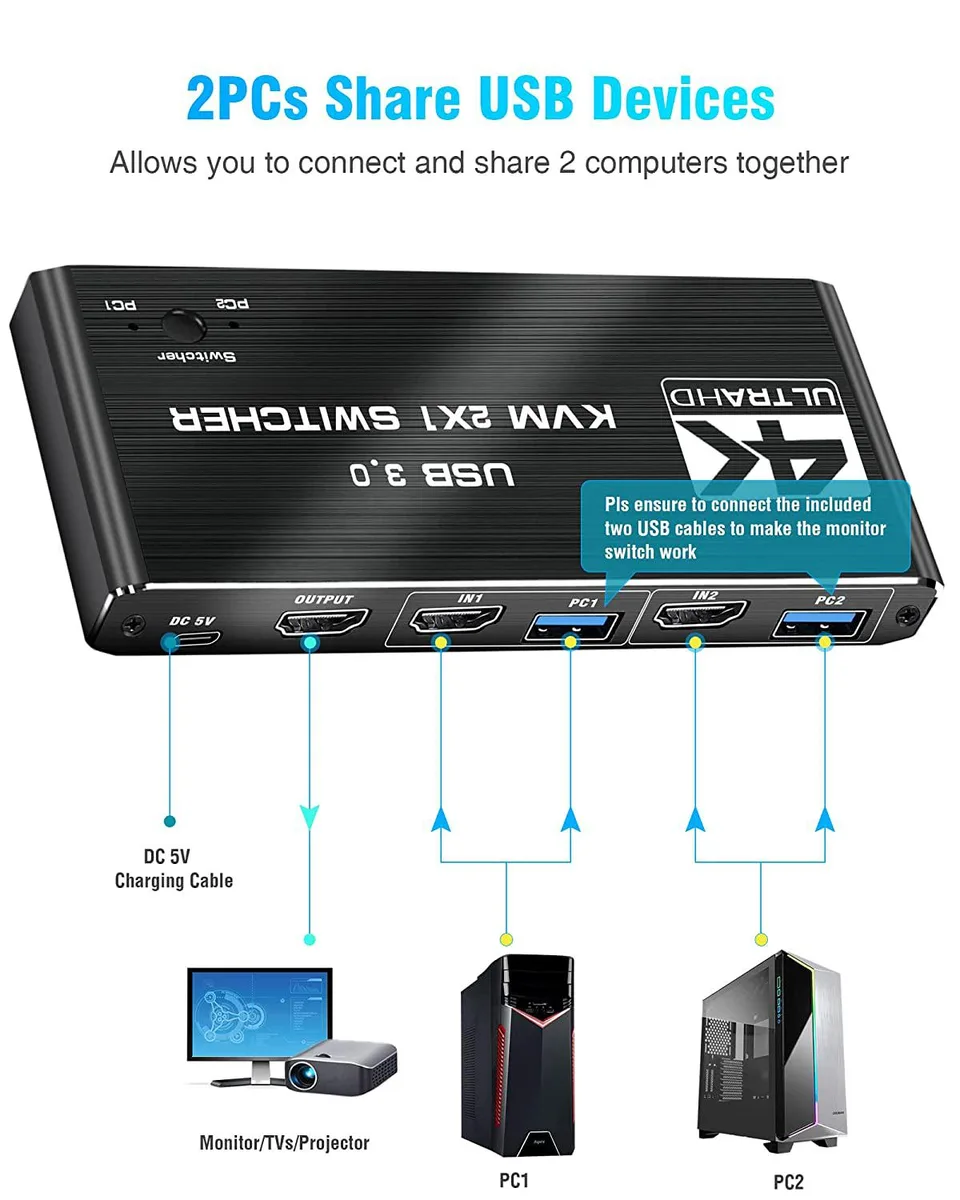

The LUOM OZK2 lets one keyboard, mouse and monitor control two computers through HDMI and USB connections. A front-panel button toggles between the attached systems instantly. No driver installation is required on any supported operating system.
HDMI 2.0 bandwidth limit
The switch passes an 18 Gbps signal, capping output at 4K 60 Hz with 4:4:4 chroma sampling. HDCP 2.2 protected content is supported, but higher refresh rates or 8K resolutions cannot be transmitted through this device.
Two-computer switching only
The unit provides two upstream PC ports and a single downstream monitor port, so it cannot serve setups that need three or more sources. Buyers who need to share peripherals across more than two systems must choose a different KVM model.
Highlights
- Share one keyboard, mouse and monitor across two computers with a single button press
- 4K 60 Hz output at 18 Gbps bandwidth with HDMI 2.0 and HDCP 2.2
- Four USB 3.0 ports let two PCs share printers, drives and other peripherals
- Works with Windows, macOS, Linux and Unix without installing drivers
- Compact 5.43 × 5.35 × 1.46 in design weighs 9.52 oz for easy desk placement
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK2 |
| Model | OZK2 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | USB and HDMI KVM switch allow a one-click swap between 2 computers to share 4 USB 3.0 peripherals and 1 HD monitor without constantly changing cables or setting up complex shareware. Make your work and life easier and more efficient! |
| Features | Support HDMI 2.0 HDCP 2.2 Resolution: Support 1080P, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Switching method: 1.Press the "Select" button on the KVM switch panel to switch between the two source devices; Highly integrated digital chip combination, plug and play |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI 2.0 KVM USB Switch 2 x USB data cable 1 x USB power cable 1 x User Manual |
Questions about this item
Should I pick the two-port model or a four-port version for my dual-PC setup?
The OZK2 is a two-port switch designed for exactly two computers; no four-port variant is listed in the specifications.
Will 4K at 60 Hz actually work on my monitor through this switch?
Yes — the unit supports 3840 x 2160 at 60 Hz with full 18 Gbps bandwidth, HDMI 2.0 and HDCP 2.2, and is backward compatible with 1080p and lower resolutions.
What does the USB 3.0 hub limit me to in real use?
Four USB 3.0 ports share the 5 Gbps bus, so high-speed drives and peripherals run at up to USB 3.0 speeds while keyboard and mouse add negligible load.
