LUOM

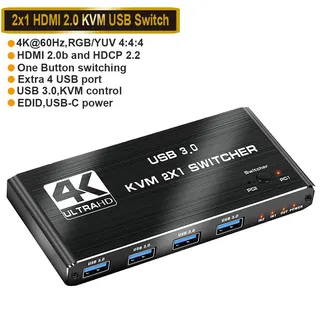

LUOM OZK2 4K@60Hz 2-Port HDMI USB KVM Switch
Share one 4K@60Hz monitor, keyboard, mouse and four USB 3.0 peripherals between two computers with a push-button switch
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections2 Ports
- Monitor Connections1 Ports
- Video Resolution3840 x 2160
- PC SelectionManual Switch
- Control two computers with one keyboard, mouse and monitor
- Switch instantly between systems using the front-panel button
- Share four USB 3.0 peripherals across both connected PCs
- Enjoy 4K resolution at 60 Hz with HDMI 2.0 and HDCP 2.2
- Works driver-free on Windows, macOS, Linux and Unix
Two-Computer KVM Switch
The LUOM OZK2 lets one keyboard, mouse and monitor control two computers through HDMI and USB connections. It is aimed at office workers, educators and home users who need to toggle between a pair of PCs without unplugging cables. The switch handles video and peripheral sharing in a single compact unit. No software installation is required on either machine.
Manual Button Switching with USB 3.0 Hub
A front-panel button selects the active computer and LED indicators show the current port. Four USB 3.0 ports on the output side share printers, flash drives or external storage between both systems. The switch draws auxiliary power from a supplied USB cable to keep the signal stable during sleep or wake cycles. HDMI 2.0 and HDCP 2.2 compliance ensures protected content plays correctly.
4K 60 Hz Video Bandwidth
The link runs at 18 Gbps and supports 3840 x 2160 at 60 Hz with 4:4:4 chroma sampling. Lower resolutions such as 1080p are also accepted automatically. Buyers who need to drive two monitors from the same computers will need a different solution.
Highlights
- Control two computers with one keyboard, mouse and monitor
- Switch instantly between systems using the front-panel button
- Share four USB 3.0 peripherals across both connected PCs
- Enjoy 4K resolution at 60 Hz with HDMI 2.0 and HDCP 2.2
- Works driver-free on Windows, macOS, Linux and Unix
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK2 |
| Model | OZK2 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | USB and HDMI KVM switch allow a one-click swap between 2 computers to share 4 USB 3.0 peripherals and 1 HD monitor without constantly changing cables or setting up complex shareware. Make your work and life easier and more efficient! |
| Features | Support HDMI 2.0 HDCP 2.2 Resolution: Support 1080P, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Switching method: 1.Press the "Select" button on the KVM switch panel to switch between the two source devices; Highly integrated digital chip combination, plug and play |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI 2.0 KVM USB Switch 2 x USB data cable 1 x USB power cable 1 x User Manual |
Questions about this item
What bandwidth does the HDMI 2.0 interface deliver and what resolution does it cap at?
The HDMI 2.0 interface provides 18 Gbps bandwidth and supports up to 3840 x 2160 at 60 Hz.
What are the physical dimensions of the LUOM OZK2 unit?
The switch measures 5.43 x 5.35 x 1.46 inches and weighs 9.52 ounces.

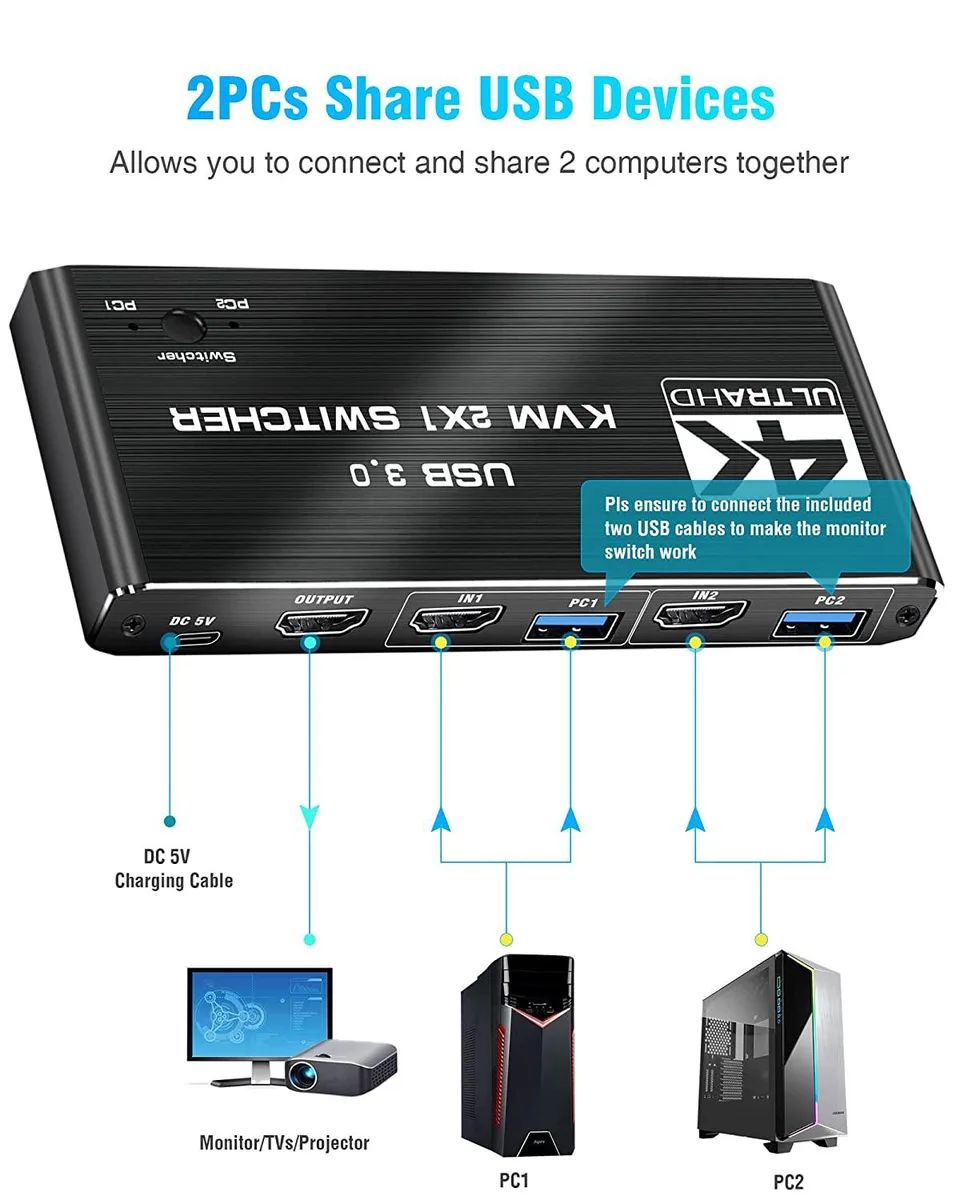

How do you connect the two computers and which step is often missed?
Connect each computer using one HDMI cable and one USB data cable, then attach the USB power cable to a 5 V source for stable operation.
