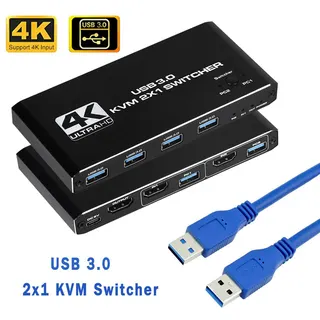

LUOM OZK2 2-Port HDMI 2.0 KVM Switch 4K@60Hz 4×USB 3.0
Share one monitor, keyboard, mouse and four USB 3.0 devices between two computers with 4K 60 Hz HDMI 2.0 switching
- TypeHDMI, USB
- PC ConnectorsHDMI and USB
- Computer Connections2 Ports
- Monitor Connections1 Ports
- Video Resolution3840 x 2160
- PC SelectionManual Switch

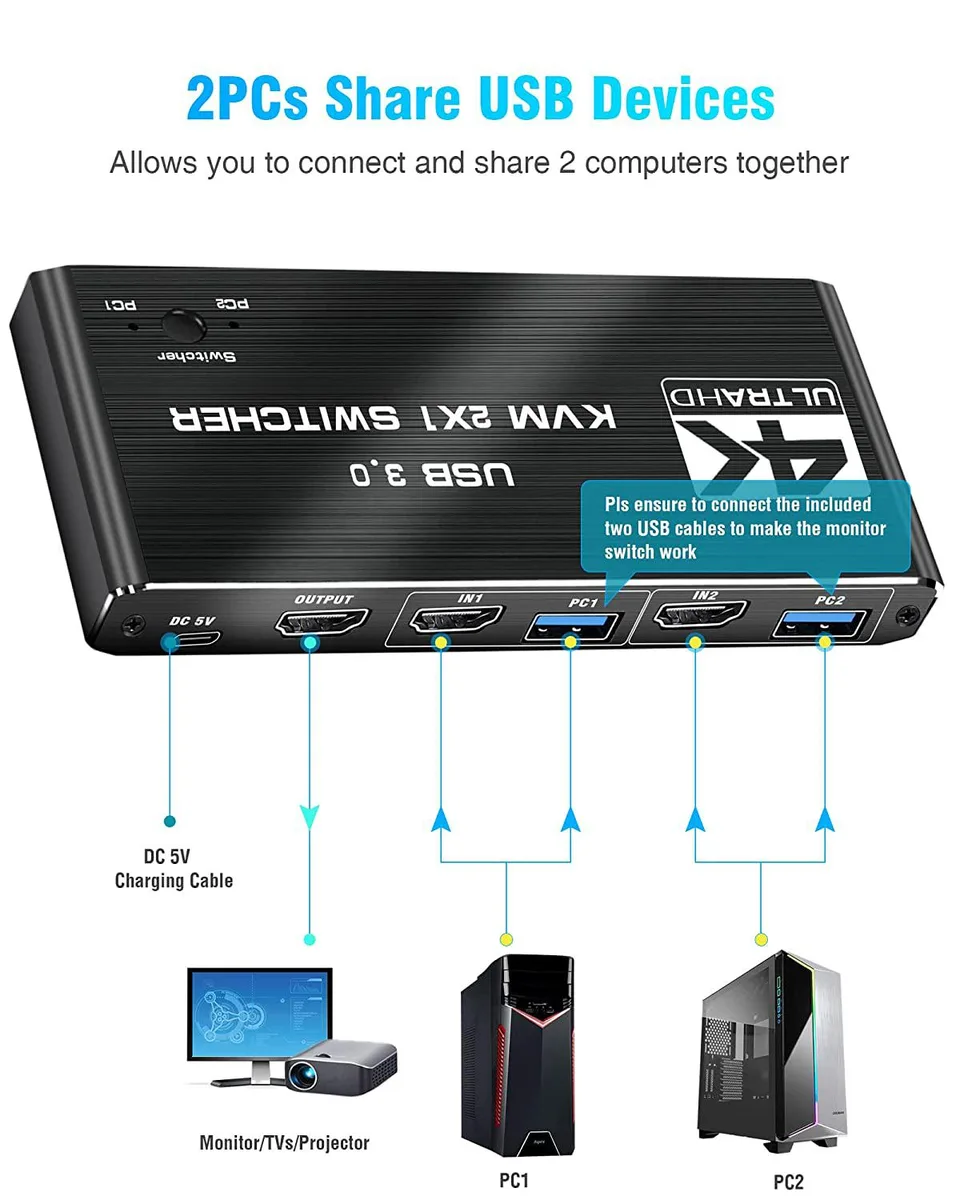

- Control two computers with one keyboard, mouse and monitor
- Share four USB 3.0 peripherals between both systems
- Switch instantly with a front-panel button or 3-second auto-scan
- Enjoy 4K 60 Hz video with HDCP 2.2 and 4:4:4 colour
- Works driver-free on Windows, macOS, Linux and Unix
Two-Computer KVM Switch
The LUOM OZK2 lets you operate two computers from one keyboard, one mouse and a single HDMI monitor. Four USB 3.0 ports on the front share printers, flash drives or external storage between both machines. A push-button on the unit toggles the active PC instantly, and the switch draws power from a supplied USB cable for stable signal handling. No driver installation is required on any supported operating system.
4K@60Hz Video and USB 3.0 Bandwidth
The HDMI 2.0 pathway delivers 18 Gpbs bandwidth, carrying 3840 x 2160 resolution at 60 Hz with 4:4:4 chroma sampling and HDCP 2.2 compliance. Lower resolutions such as 1080p and 4K@30Hz are also supported automatically. Each of the four USB ports runs at USB 3.0 speeds, giving enough throughput for high-capacity external drives or fast document scanners. The single video stream and shared USB hub are the only data paths the switch provides.
Manual Push-Button Switching
A single physical button cycles between the two connected computers; there is no hot-key sequence, IR remote or software utility. LED indicators show which port is active at a glance. An auto-scan mode rotates every 3 seconds if you prefer hands-free monitoring, but it cannot be reprogrammed to a different interval. Buyers who need keyboard hot-keys, scheduled switching or more than two computer ports should look for a different KVM architecture.
Highlights
- Control two computers with one keyboard, mouse and monitor
- Share four USB 3.0 peripherals between both systems
- Switch instantly with a front-panel button or 3-second auto-scan
- Enjoy 4K 60 Hz video with HDCP 2.2 and 4:4:4 colour
- Works driver-free on Windows, macOS, Linux and Unix
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK2 |
| Model | OZK2 |
| Type | HDMI, USB |
| PC Connectors | HDMI and USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Application | USB and HDMI KVM switch allow a one-click swap between 2 computers to share 4 USB 3.0 peripherals and 1 HD monitor without constantly changing cables or setting up complex shareware. Make your work and life easier and more efficient! |
| Features | Support HDMI 2.0 HDCP 2.2 Resolution: Support 1080P, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems Supports high current hard disk devices Switching method: 1.Press the "Select" button on the KVM switch panel to switch between the two source devices; Highly integrated digital chip combination, plug and play |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI 2.0 KVM USB Switch 2 x USB data cable 1 x USB power cable 1 x User Manual |
Questions about this item
Will the LUOM OZK2 pass 4K@60Hz from an older HDMI 2.0 graphics card to my monitor?
Yes — the switch supports HDMI 2.0b and 18 Gbps bandwidth, so a 4K@60Hz source will pass through at full 3840×2160@60Hz with 4:4:4 chroma.
How do I know the switch has selected the correct computer after I press the button?
LED indicators on the front panel light to show whether PC1 or PC2 is active, giving immediate visual confirmation.
Which cables come in the box and what must I supply myself?
Included: two USB data cables and one USB power cable. You must provide two HDMI cables (one per computer) and one HDMI cable to the monitor.
