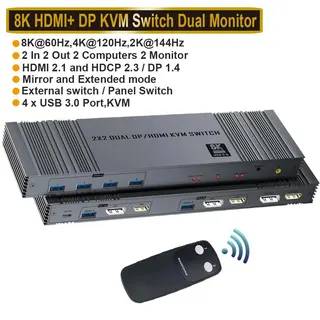

LUOM OZK10 HDMI DP KVM Switch 2 Port 8K@60Hz
Controls two computers across dual monitors at up to 8K 60 Hz with four USB 3.0 ports and remote switching
- TypeHDMI DP USB
- PC ConnectorsHDMI DP USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Remote Control
- Controls two computers with one keyboard and mouse set
- Connects dual HDMI and DisplayPort monitors at 8K@60Hz
- Shares four USB 3.0 devices between both systems
- Switches instantly via push buttons or remote control
- Aluminium alloy shell resists interference and corrosion
Dual-Computer Control
The LUOM OZK10 KVM switch lets a single keyboard, mouse and up to four USB 3.0 peripherals command two computers or laptops across two monitors. Each system connects through one HDMI 2.1 and one DisplayPort 1.4 cable, delivering 8K at 60 Hz or 4K at 120 Hz with HDCP 2.3. Switching is handled by front-panel push buttons or the included remote, and an auto-scan mode cycles inputs every three seconds.
Upgrade From Single-Monitor Or Manual Switching
This unit replaces a basic single-head KVM or the hassle of swapping cables when you need dual-display extended or mirrored modes. The jump is worth it if you run two PCs that each have both an HDMI and a DP output and you want 8K 60 Hz or high-refresh 4K 120 Hz without buying separate switches. It will not help if your laptop lacks a native DisplayPort or if you need signal conversion between HDMI and DP.
Plug-And-Play With External Power

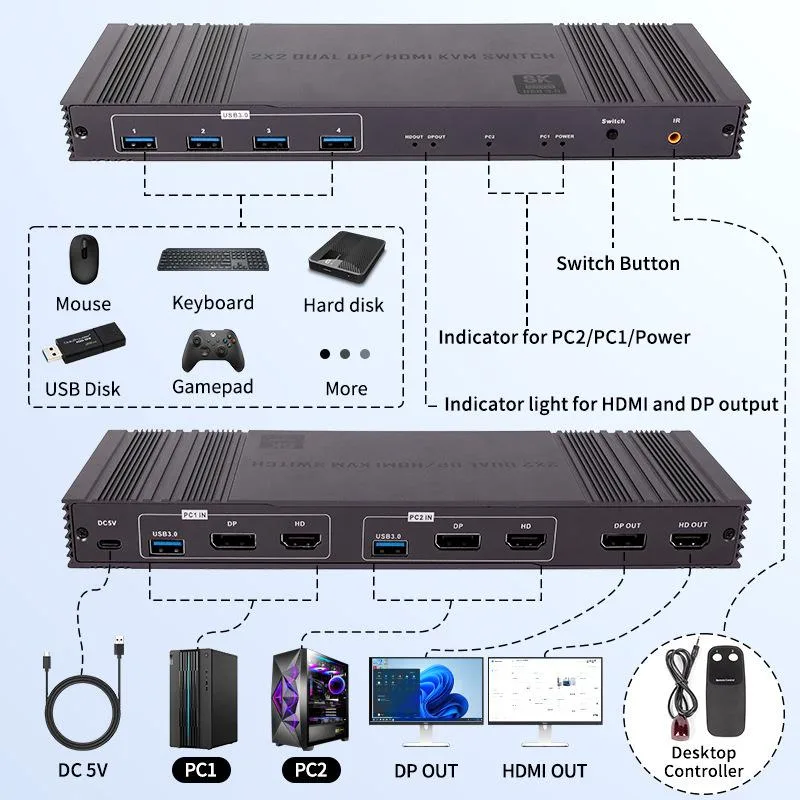

Installation is straightforward: connect the two supplied USB 3.0 data cables, the four video leads and the DC adapter, then select the active system. The aluminium alloy shell resists interference and runs cool. Common issues arise when a computer provides only HDMI or only DP — the KVM does not convert signals, so each input must match its corresponding monitor port. Verify both video outputs on each PC before purchasing.
Highlights
- Controls two computers with one keyboard and mouse set
- Connects dual HDMI and DisplayPort monitors at 8K@60Hz
- Shares four USB 3.0 devices between both systems
- Switches instantly via push buttons or remote control
- Aluminium alloy shell resists interference and corrosion
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK10 |
| Model | OZK10 |
| Type | HDMI DP USB |
| PC Connectors | HDMI DP USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Remote Control |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |

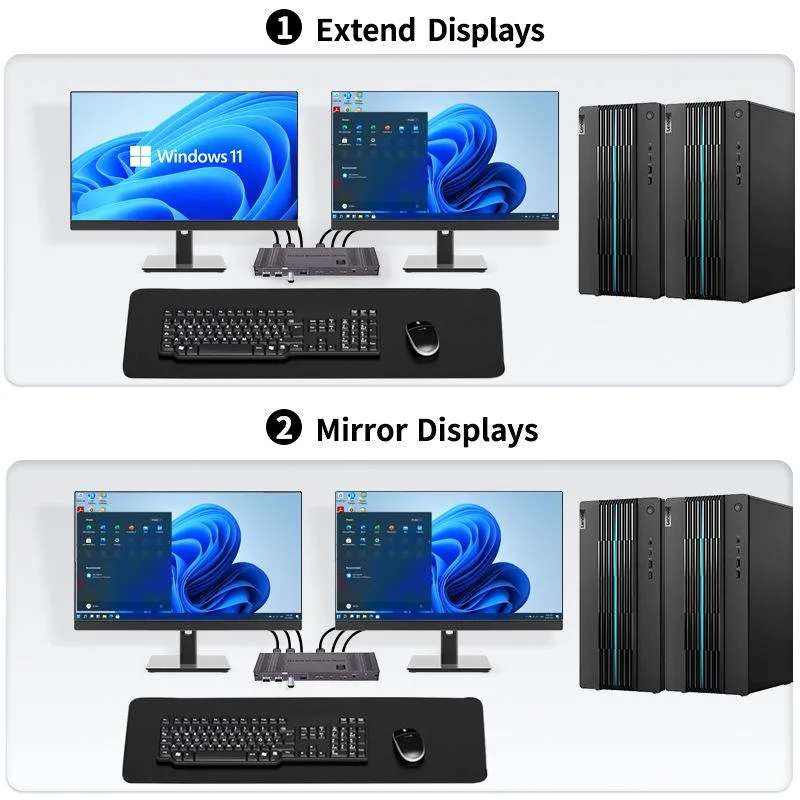

| Features | HDMI+Display Port Dual Monitor KVM Switch:This composite KVM switcher allows you to control two computers or laptops with just one set of wkeyboard and mouse. You can also share up to four USB 3.0 devices and connect two monitors in either extended or copy display mode. (Note: This KVM switch does not support hotkey switching) Ultra HD 8K 60Hz KVM Switch: This KVM switch Dual Monitor supports resolutions up to 7680*4320@60Hz and downward compatible supports 3D,HDR,HDCP.Picture quality is transmitted without delay, resulting in a more realistic and high-definition image display. Note: |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI DP KVM USB Switch, 2 x USB 3.0 data cable, 1x DC power adapter,1 x User Manual. |
Questions about this item
What desk space does the 5.43 x 5.35 x 1.46 inch aluminium-alloy chassis need?
The unit measures 5.43 by 5.35 by 1.46 inches and weighs 9.52 ounces, so a flat area slightly larger than that footprint with room for cable bends is sufficient.
How do I connect both computers so the 8K 60Hz video and USB 3.0 data paths work, and what step is often missed?
Plug each computer's HDMI 2.1 and DP 1.4 outputs into the matching input pairs, attach the two supplied USB 3.0 data cables, then connect the DC power adapter — forgetting the power adapter is the common oversight.
When will the DC power adapter or the two USB 3.0 data cables need replacement?
Replace the DC adapter if the unit loses power or LED indicators fail, and swap a USB 3.0 cable when a shared device drops connection or transfers stall.
