LUOM OZK10 2-Port HDMI DP KVM Switch 8K 60Hz
Controls two computers with one keyboard, mouse and dual monitors at up to 8K 60Hz, plus four USB 3.0 ports
- TypeHDMI DP USB
- PC ConnectorsHDMI DP USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution8K 60Hz
- PC SelectionPush Buttons/Remote Control
- Control two computers with one keyboard and mouse
- Share up to four USB 3.0 peripherals between systems

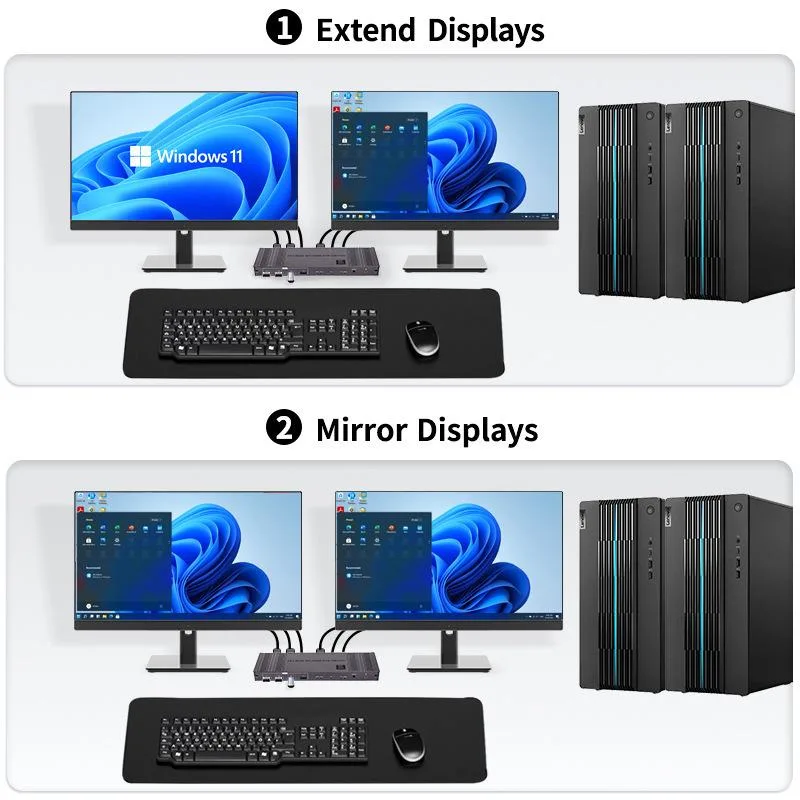

- Dual-monitor extended or copy display modes supported
- Push-button or remote switching with 3-second auto-scan
- 8K 60 Hz video pass-through with HDCP and HDR
Dual-computer KVM for two monitors

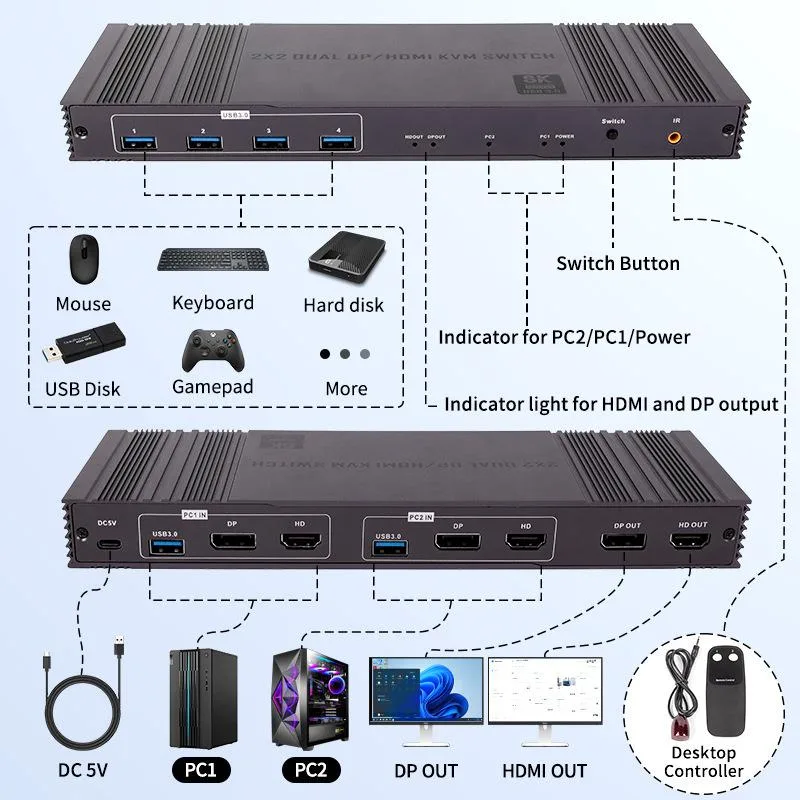

The LUOM OZK10 connects two computers to one keyboard, one mouse, and two displays — one HDMI and one DisplayPort. Each computer must provide both an HDMI and a DP output; the switch does not convert signals between them. Four USB 3.0 ports let you share peripherals such as drives or a printer across both systems. A top-mounted button and an included remote change the active computer.
Suited to dual-head workstations.
This switch targets users who run two machines side by side and need independent extended or mirrored desktops on two screens. It works when every source and every display natively supports the required HDMI and DP connections. Buyers whose laptops offer only one video port, or who need to convert HDMI to DP or vice versa, should look elsewhere because the unit passes each signal straight through without translation.
8K 60 Hz through HDMI 2.1 and DP 1.4
The headline specification is support for 7680×4320 at 60 Hz, with backward compatibility down to 1080p 240 Hz and 720p. Achieving the top resolution demands that both the computer graphics output and the monitor accept 8K 60 Hz, plus the use of an ultra-high-speed HDMI 2.1 cable. If any link in the chain stops at 4K or lower, the switch will simply pass the lower mode.
Highlights
- Control two computers with one keyboard and mouse
- Share up to four USB 3.0 peripherals between systems
- Dual-monitor extended or copy display modes supported
- Push-button or remote switching with 3-second auto-scan
- 8K 60 Hz video pass-through with HDCP and HDR
Specifications
| Brand | LUOM |
|---|---|
| Series | OZK10 |
| Model | OZK10 |
| Type | HDMI DP USB |
| PC Connectors | HDMI DP USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K 60Hz |
| PC Selection | Push Buttons/Remote Control |
| AutoScan Interval | 3 seconds |
| LED Indicators | Yes |
| USB Features | with USB support |
| Features | HDMI+Display Port Dual Monitor KVM Switch:This composite KVM switcher allows you to control two computers or laptops with just one set of wkeyboard and mouse. You can also share up to four USB 3.0 devices and connect two monitors in either extended or copy display mode. (Note: This KVM switch does not support hotkey switching) Ultra HD 8K 60Hz KVM Switch: This KVM switch Dual Monitor supports resolutions up to 7680*4320@60Hz and downward compatible supports 3D,HDR,HDCP.Picture quality is transmitted without delay, resulting in a more realistic and high-definition image display. Note: |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
| Weight | 9.52 Ounces |
| Package Contents | 1 x HDMI DP KVM USB Switch, 2 x USB 3.0 data cable, 1x DC power adapter,1 x User Manual. |
Questions about this item
How much power does the LUOM OZK10 draw and does it get warm when left on all day?
The unit ships with a DC power adapter and runs cool under normal desktop loads; no fan is fitted so operation is silent.
Which cables and ports must my two computers already have to use this KVM?
Each computer needs one HDMI 2.1 output and one DisplayPort 1.4 output, plus a free USB 3.0 port for the supplied data cables.
Will my older 1080p 240 Hz monitor work alongside a new 8K 60 Hz display on the OZK10?
Yes — the switch is backward compatible with 1080p at 240 Hz, 720p and other legacy modes while simultaneously driving an 8K 60 Hz panel.
