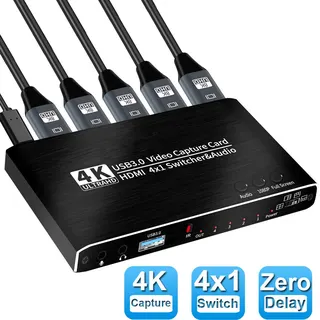

Small black rectangular capture box with four HDMI inputs, one HDMI output, USB 3.0 port, mic jack, audio out and IR remote

LUOM

LUOM OZC7 4x1 HDMI video capturing device 4K@30Hz USB 3.0 seamless switch

SKU CH-7STR-H9514

Four HDMI inputs switch seamlessly to 4K@30Hz loop-out and 1080@60fps USB 3.0 capture with mic mixing, driver-free for streaming or recording

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture four sources simultaneously with four HDMI inputs and a mic port
  • Stream at 1080p 60fps via USB 3.0 for smooth live broadcasts
  • Pass through 4K 30fps on HDMI 1.4 for zero-lag local monitoring
  • Works driver-free with any third-party capture or streaming software
  • Compact 4.45 x 2.2 x .71 in design fits any desk setup

What it is

The LUOM OZC7 is a 4x1 HDMI video capturing device that accepts four HDMI sources and a microphone, then routes them through a single USB 3.0 connection at up to 1080@60fps while passing 4K@30Hz through its HDMI loop-out. It requires no driver installation and works with standard third-party streaming software.

Who it suits

Streamers, educators or conference hosts who need to switch between multiple HDMI cameras, consoles or PCs without re-cabling will benefit from the four-input design and IR remote control. Users who must capture at 4K60 over USB or who require more than four simultaneous sources should consider other options.

Deciding specification

The USB 3.0 capture output tops out at 1080@60fps even though the HDMI inputs and loop-out support 4K@30Hz, so the maximum recorded resolution is the key figure to match against your workflow.

Highlights

  • Capture four sources simultaneously with four HDMI inputs and a mic port
  • Stream at 1080p 60fps via USB 3.0 for smooth live broadcasts
  • Pass through 4K 30fps on HDMI 1.4 for zero-lag local monitoring
  • Works driver-free with any third-party capture or streaming software
  • Compact 4.45 x 2.2 x .71 in design fits any desk setup

Specifications

BrandLUOM
SeriesOZC7
ModelOZC7
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

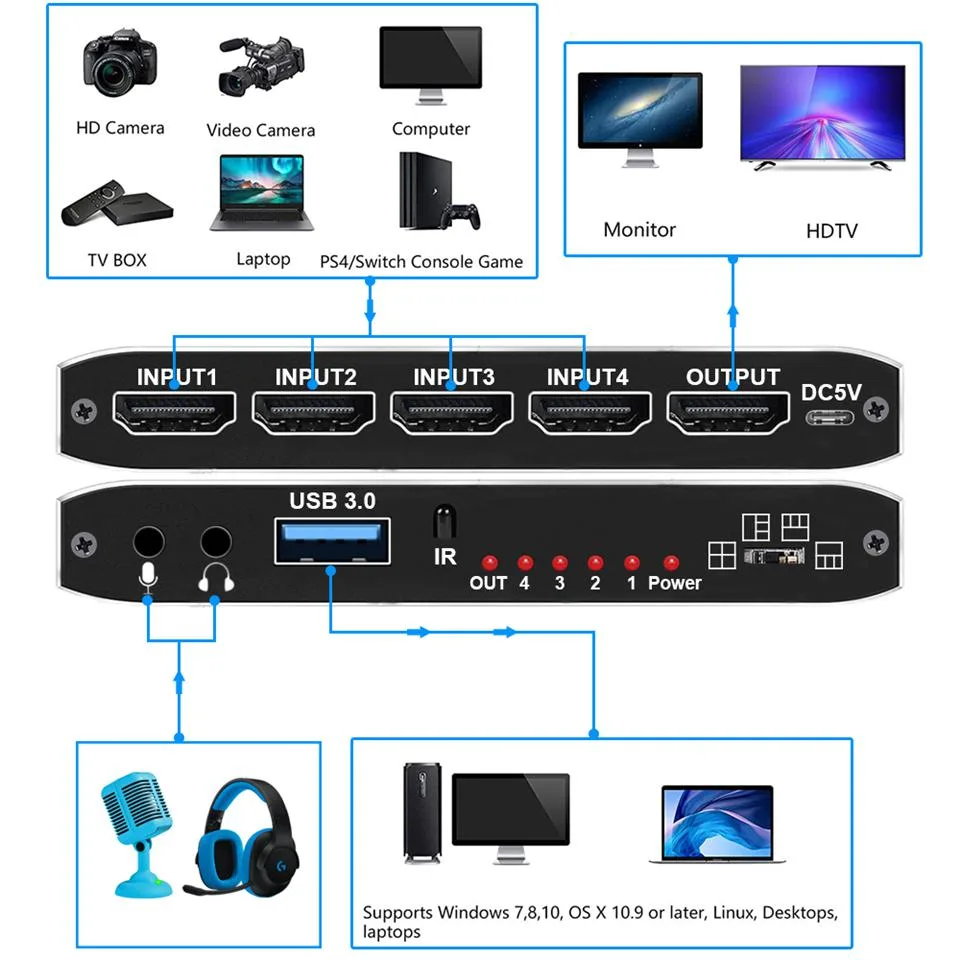

SpecificationInput: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Supp
Feature4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.
4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unp
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4 port HDMI Switch Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

What comes in the box with the LUOM OZC7 4x1 capture device?

The package includes the capture card, a USB 3.0 to USB 3.0 cable, a USB 3.0 to Type-C cable, an IR remote control and a user manual.

Which HDMI version does the LUOM OZC7 support for 4K pass-through?

It supports HDMI 1.4 for 4K at 30 fps pass-through on both the four inputs and the single HDMI loop-out.

What resolution and frame rate does the USB 3.0 output deliver on the LUOM OZC7?

The USB 3.0 output captures at up to 1080p 60 fps, while the HDMI loop-out passes 4K at 30 fps.
