Small black rectangular capture box with four HDMI inputs, one USB 3.0 port and LED indicator

LUOM

LUOM OZC7 4x1 HDMI video capturing device 4K@30Hz USB 3.0

SKU CH-VRM4-ZA8VS

Four HDMI inputs switch to one USB 3.0 capture at 1080@60fps and one HDMI loop-out at 4K@30Hz, with mic and audio ports

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • 4K@30Hz pass-through keeps source quality intact on the loop-out
  • USB 3.0 capture delivers 1080p60 recording for smooth streams
  • Four HDMI inputs switch instantly without signal conflict
  • Driver-free operation works with any third-party capture software
  • Built-in mic and audio ports mix commentary with game sound

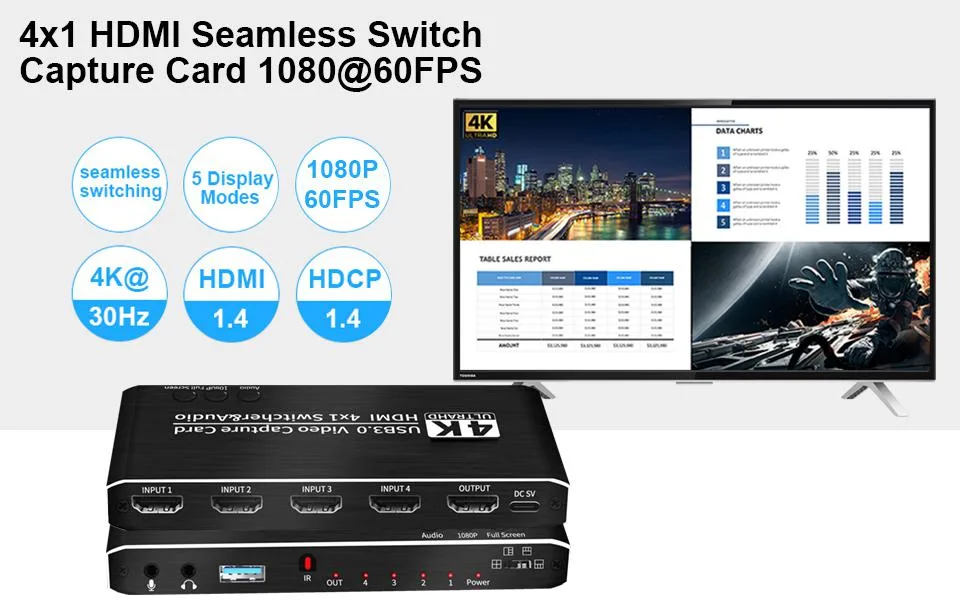

4x1 HDMI capture and switch

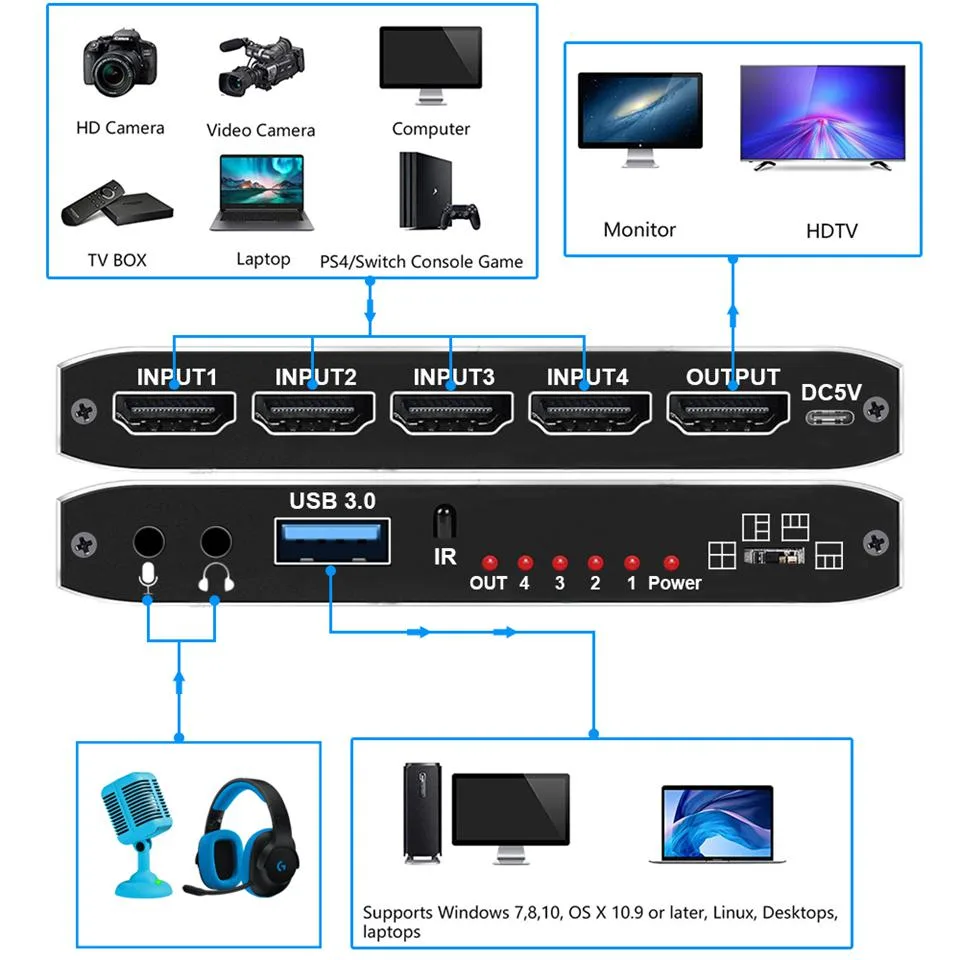

The LUOM OZC7 combines a four-input HDMI switcher with a USB 3.0 capture engine. It accepts four HDMI sources and a microphone, then routes a single programme feed to the USB port for recording or streaming while mirroring the same signal to an HDMI loop-out. Driver-free operation lets it work with any UVC-compatible application on Windows, macOS or Linux.

4K pass-through and 1080p60 capture

Each HDMI input supports 4K at 30 Hz pass-through, so the local display sees the full resolution. The USB 3.0 capture path tops out at 1080p at 60 fps, meaning 4K sources are downscaled for the recording or stream. Four sources can be connected simultaneously and switched without mutual interference, but the device cannot capture more than one input at a time.

Silent passively cooled operation

The aluminium enclosure dissipates heat without a fan, so the unit runs silently during long sessions. Power is drawn entirely from the USB 3.0 bus, eliminating the need for an external adapter. Typical draw stays within the USB 3.0 specification, keeping the host port within its current budget.

Highlights

  • 4K@30Hz pass-through keeps source quality intact on the loop-out
  • USB 3.0 capture delivers 1080p60 recording for smooth streams
  • Four HDMI inputs switch instantly without signal conflict
  • Driver-free operation works with any third-party capture software
  • Built-in mic and audio ports mix commentary with game sound

Specifications

BrandLUOM
SeriesOZC7
ModelOZC7
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes
SpecificationInput: HDMI Port x 4, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@30Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24,MJPEG
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Supp
Feature4K Ultra Game Capture Card: The 4x1 video capture card supports 4K@30fps pass through for HDMI 1.4 input and output. The USB 3.0 output is maximum to 1080@60fps, the max HDMI input and output is up 4K@30Hz. four HDMI input interfaces,which can be inserted in to HDMI video sources individually or at the same time,without mutual influence,video capture is very smooth and no delay.
4 IN 1 Seamless HDMI Switch: 4 Port Video Capture Card/ HDMI Switch allows up to 4input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unp
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4 port HDMI Switch Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

Will the LUOM OZC7 work alongside my older HDMI 1.4 sources and still pass 4K@30Hz through its loop-out?

Yes — the unit accepts four HDMI 1.4 inputs up to 4K@30Hz and its HDMI loop-out mirrors that same 4K@30Hz signal, so legacy sources stay compatible.

How do I confirm the capture is running at 1080p 60 fps over USB 3.0 after I plug it in?

Open your streaming software, check the video properties — the device should report 1080@60fps and the LED indicator on the unit will be lit.

Does the box include cables for both USB-A and USB-C hosts, or do I need to buy one separately?

The package supplies a USB 3.0-to-USB 3.0 cable and a USB 3.0-to-Type-C cable, plus an IR remote and manual — no extra cable purchase required.
