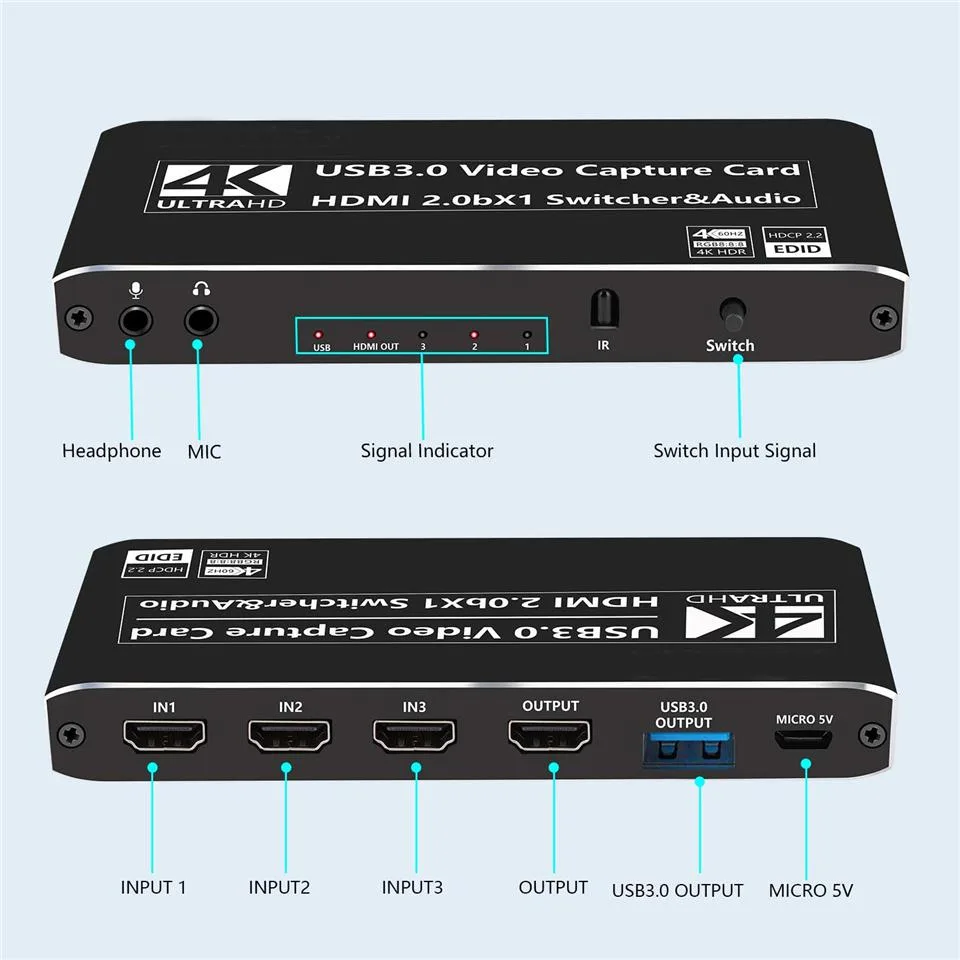

Black rectangular capture box with three HDMI inputs, one HDMI output, USB 3.0 and Type-C cables, microphone and headphone jacks

LUOM

LUOM OZC6 3×1 HDMI 4K@60Hz video capturing device

SKU CH-SB70-62M20

A 3×1 HDMI switch and capture box records 4K 60 Hz gameplay at 2160p 30 fps via USB 3.0 with loop-out, mic input and IR remote

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture three 4K 60 Hz sources with one HDMI output and USB recording
  • Stream up to 2160p 30 fps via USB 3.0 for smooth live broadcasts
  • Plug and play on Windows Mac Linux with UVC UAC standard support
  • Mix microphone chat and game audio through dedicated 3.5 mm ports
  • Switch inputs instantly using front panel buttons or included IR remote

LUOM OZC6 3×1 HDMI capture box

The LUOM OZC6 is a compact video capturing device that accepts three HDMI sources at up to 4K 60 Hz and delivers a single USB 3.0 stream at 2160p 30 fps. It also provides an HDMI loop-out at 4K 60 Hz and a 3.5 mm microphone input with headphone monitoring. The unit is powered over USB and includes an IR remote for input switching.

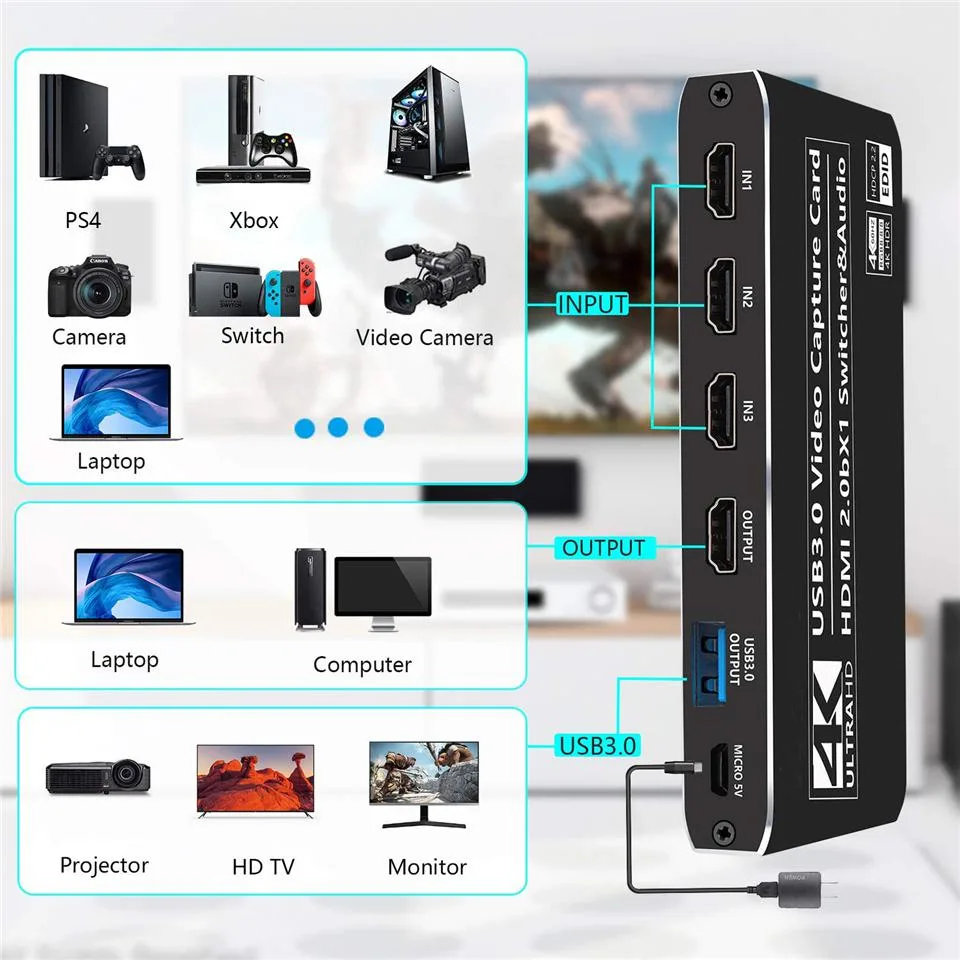

Streamers and educators needing multi-source

This device suits creators who switch between up to three HDMI cameras, consoles or computers during live streams, lessons or recordings. It is not for users who require 4K 60 fps capture over USB, internal PCIe capture, or more than three HDMI inputs.

Check host USB port and software compatibility

Verify your computer has a free USB 3.0 Type-A or Type-C port and runs Windows, macOS or Linux with UVC/UAC support. Confirm your streaming application (OBS, VLC, Vmix, etc.) recognises standard video-class devices. Ensure each HDMI source can output 4K 60 Hz or 1080p 60 Hz for best results.

Highlights

  • Capture three 4K 60 Hz sources with one HDMI output and USB recording
  • Stream up to 2160p 30 fps via USB 3.0 for smooth live broadcasts
  • Plug and play on Windows Mac Linux with UVC UAC standard support
  • Mix microphone chat and game audio through dedicated 3.5 mm ports
  • Switch inputs instantly using front panel buttons or included IR remote

Specifications

BrandLUOM
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes
SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

What type of USB port does my computer need for the LUOM OZC6 to work?

The capture box connects through a USB 3.0 port; both a USB 3.0-to-USB 3.0 cable and a USB 3.0-to-Type-C cable are included so it will fit either style of host socket.

Can I keep my 1080p monitor connected through the HDMI loop-out while the OZC6 captures at 4K 60 Hz?

Yes — the HDMI output passes the incoming 4K 60 Hz signal through unchanged, so a 1080p display will simply show the source at its own native resolution.

How can I confirm the OZC6 is capturing video at 2160p 30 fps after I plug it in?

Open OBS or any UVC-compatible application, add the device as a video capture source, and check that the resolution reads 2160p at 30 fps in the properties or statistics window.
