Black rectangular capture box with three HDMI inputs, one HDMI output, USB 3.0 port, microphone and audio jacks

LUOM

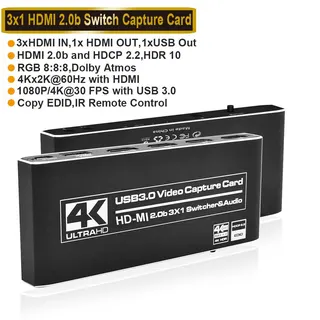

LUOM OZC6 3×1 HDMI 4K@60 Hz Video Capturing Device

SKU CH-C7ZW-2XR66

Captures three 4K 60 Hz HDMI sources plus microphone audio, switches between them, and streams up to 2160p 30 fps over USB 3.0 with zero-driver setup

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture 4K@60 Hz gameplay with three HDMI inputs and USB 3.0 output
  • Switch sources instantly via panel buttons or the included IR remote
  • Pass through 4K@60 Hz HDMI to a monitor while recording at 2160p30
  • Mix microphone and headphone audio with dedicated 3.5 mm ports
  • Plug-and-play UVC/UAC support on Windows, Mac and Linux

Portable 4K capture and switching

The LUOM OZC6 is a compact video capture device that accepts three HDMI sources at up to 4K@60 Hz and routes one selected signal to a USB 3.0 connection for recording or streaming. It suits creators, educators and gamers who need to switch between multiple cameras or consoles without a separate switcher.

Passive cooling and bus power

The aluminium enclosure runs without a fan, so operation is silent and power comes entirely from the USB 3.0 or Type‑C link. No external adapter is required and the unit stays cool during extended capture sessions.

Cables, remote and software freedom

The box includes HDMI, USB‑A and USB‑C cables plus an IR remote for source switching at a distance. UVC and UAC compliance means OBS, VLC, PotPlayer, vMix and major streaming platforms work immediately without driver installation.

Highlights

  • Capture 4K@60 Hz gameplay with three HDMI inputs and USB 3.0 output
  • Switch sources instantly via panel buttons or the included IR remote
  • Pass through 4K@60 Hz HDMI to a monitor while recording at 2160p30
  • Mix microphone and headphone audio with dedicated 3.5 mm ports
  • Plug-and-play UVC/UAC support on Windows, Mac and Linux

Specifications

BrandLUOM
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes
SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.

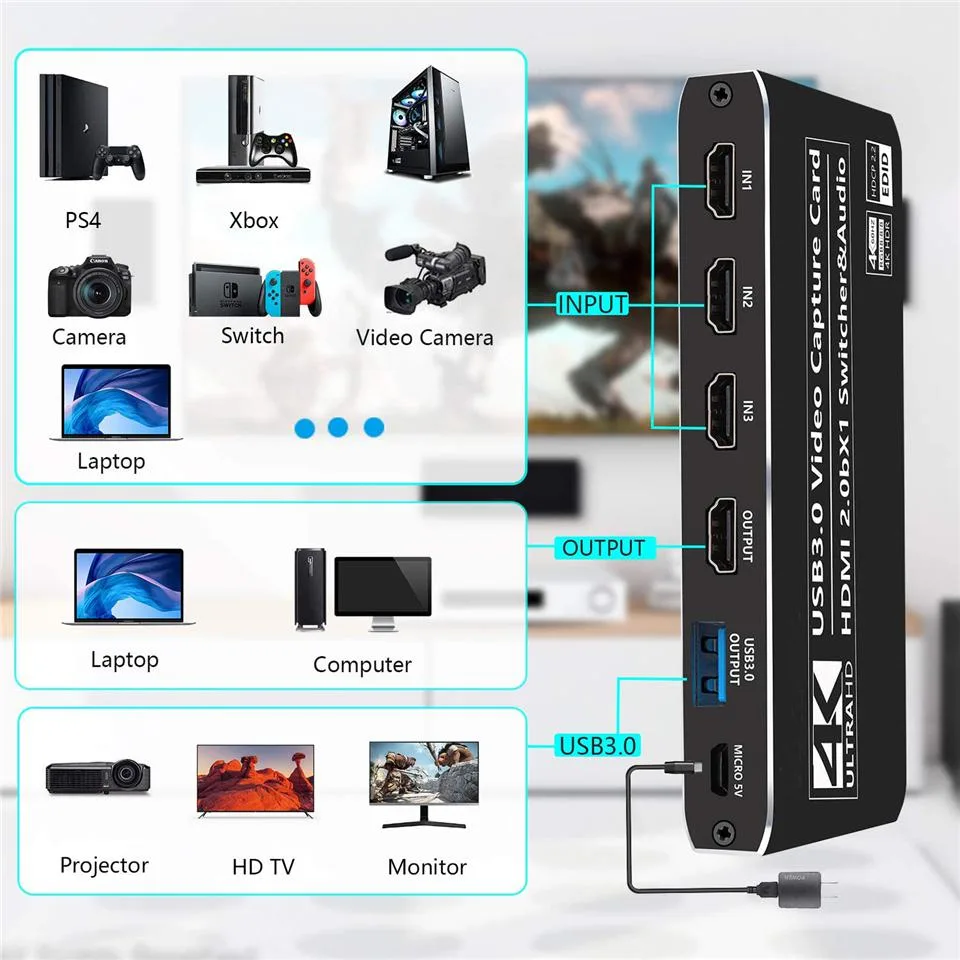

The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

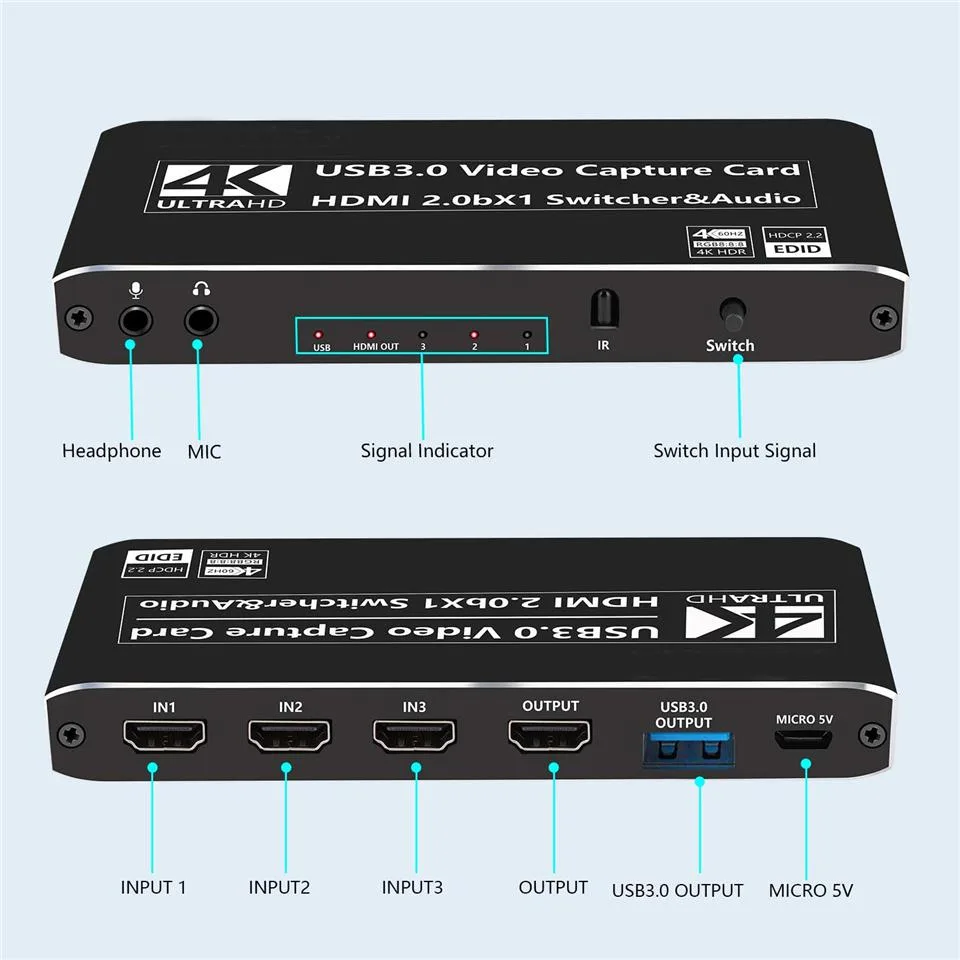

How do I connect the three HDMI sources and the microphone to the LUOM OZC6 capture box?

Plug each source into one of the three HDMI input ports and the microphone into the 3.5 mm mic port; connect the supplied USB 3.0 or USB-C cable to the computer, then use the front button or the IR remote to select the active HDMI input — the step most people miss is forgetting to switch the input after cabling.

What parts will need replacement after extended streaming sessions?

The only wear items are the supplied USB 3.0 and USB-C cables and the HDMI cable; the capture box itself has no fan, battery or consumable filters, so cable fatigue from frequent plugging is the typical long-term maintenance.

At what frame rate does the USB output cap out during long 4K captures?

The USB 3.0 output is limited to 2160p at 30 fps, so sustained 4K recording or streaming will run at 30 fps even though the HDMI loop-out stays at 60 fps.
