Black rectangular capture box with three HDMI inputs, one output, USB 3.0, mic and audio jacks, LED indicator and IR remote

LUOM

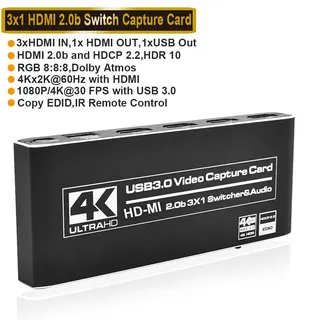

LUOM OZC6 3×1 4K 60Hz HDMI Video Capturing Device

SKU CH-B6Y8-DAGX9

Captures three 4K 60 Hz HDMI sources plus microphone audio, streams up to 2160p 30 fps via USB 3.0, and passes 4K 60 Hz through to a display with IR remote switching

  • InterfaceUSB 3.0
  • Resolution Support4K
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • AudioYes
  • HDMI1 Input/3 Output
  • Capture three 4K 60 Hz HDMI sources and stream at 2160p 30 fps via USB 3.0
  • Switch inputs instantly using the front panel or the included IR remote
  • Pass through 4K 60 Hz HDMI to a monitor while recording
  • Record microphone and headset audio through dedicated 3.5 mm jacks
  • Plug-and-play UVC/UAC support on Windows, Mac and Linux without drivers

What this capture device does

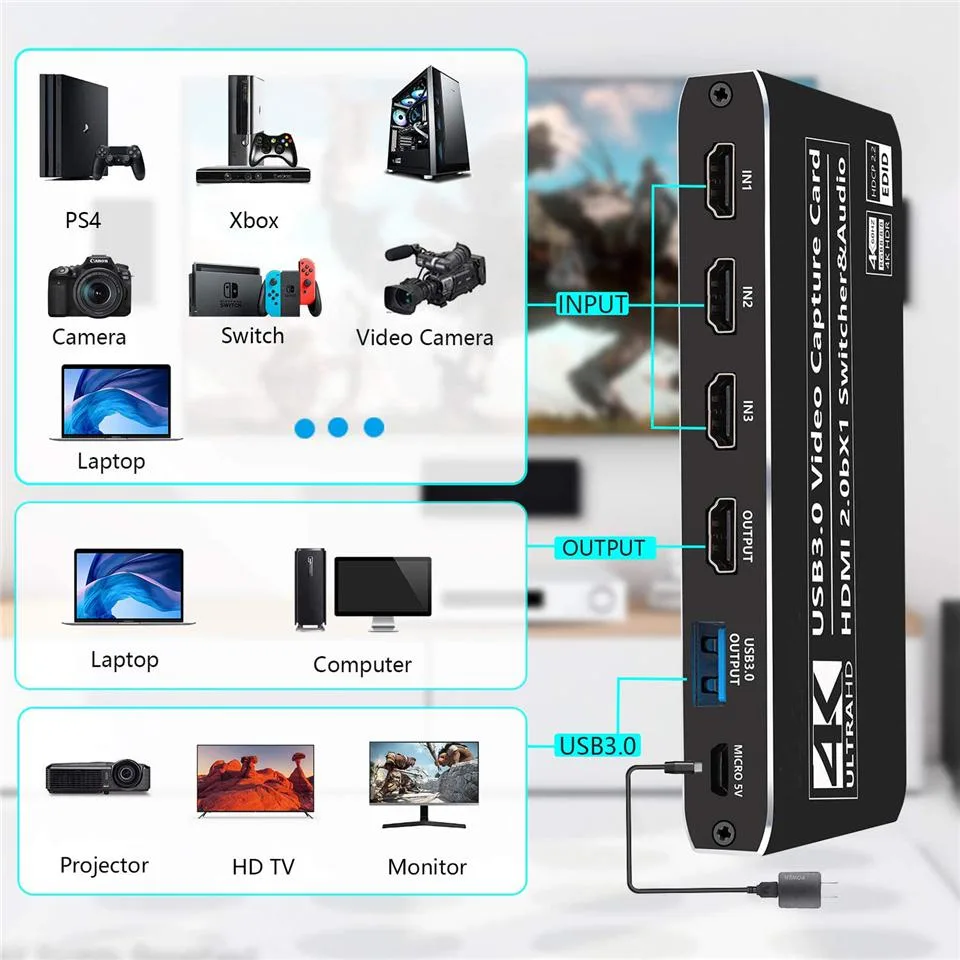

The LUOM OZC6 is a 3×1 HDMI switch and USB 3.0 capture box built for streamers, educators and anyone recording gameplay or presentations. It accepts three 4K@60Hz sources, passes one through to a monitor at the same rate and sends a 2160p30 or 1080p60 stream to a PC, Mac or Linux machine via USB 3.0. A mic input and headphone jack handle party chat or commentary.

The spec that decides fit

You need three HDMI sources running at 4K@60Hz that you want to switch between and capture simultaneously; the box only outputs 2160p30 over USB, so 4K@60Hz recording is not possible. It also requires a free USB 3.0 port and works driver-free on Windows, Mac and Linux. If you only have one source or need 4K@60Hz capture, this is not the right unit.

Thermals noise and power

The aluminium enclosure measures 4.45×2.2×0.71 inches and weighs 0.352 ounces, so it runs passively with no fan and stays silent on a desk. Power comes entirely from the USB 3.0 connection, drawing only what the port supplies. An LED indicator shows active status without adding audible noise.

Highlights

  • Capture three 4K 60 Hz HDMI sources and stream at 2160p 30 fps via USB 3.0
  • Switch inputs instantly using the front panel or the included IR remote
  • Pass through 4K 60 Hz HDMI to a monitor while recording
  • Record microphone and headset audio through dedicated 3.5 mm jacks
  • Plug-and-play UVC/UAC support on Windows, Mac and Linux without drivers

Specifications

BrandLUOM
SeriesOZC6
ModelOZC6
InterfaceUSB 3.0
Resolution Support4K
Camera ResolutionUp to 4K Video
ColorBlack
AudioYes
HDMI1 Input/3 Output
USB Port1
LED IndicatorYes

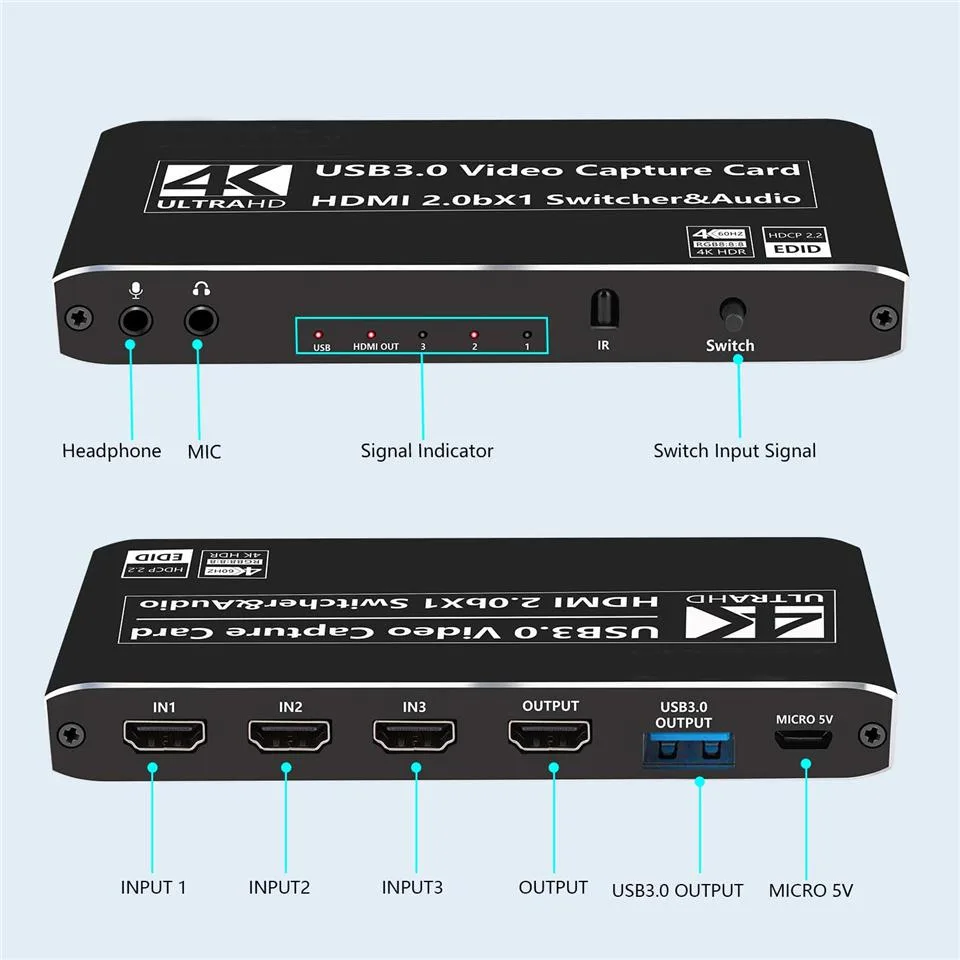

SpecificationInput: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
Support 4K
FeatureEasy to carry and good compatibility: 4K@60Hz HD-MI to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HD-MI input signal
4Kx2K With 30FPS,Support HDCP: The HD video capture card can support HDCP 4Kx2K with 30FPS and 1080P with 60FPS, it is very suitable to use it for game live streaming.
Faster Data Transmition: USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
ZERO Latency HD-MI Loopout: There is no latency when you use th
Dimensions4.45 x 2.2 x 0.71 inches
Weight0.352 ounces
Package Content1 x 4K@60Hz HDMI Audio Video Capture Card
1 x USB 3.0 to USB 3.0 Cable
1 x USB 3.0 to Type-C Cable
1 x HDMI to HDMI Cable
1 x User Manual
1 x IR Remote
OptionHDMI - 4K

Questions about this item

What does the 4K 60 Hz input rating mean for my recorded footage?

The device accepts three HDMI sources at 4K 60 Hz but captures to the computer at a maximum of 2160p 30 fps or 1080p 60 fps via USB 3.0.

How does the USB 3.0 connection limit what I can stream?

USB 3.0 caps the capture output to 2160p 30 fps or 1920 x 1080 at 60 fps while the HDMI loop-out still passes 4K 60 Hz to a display.

What cables and ports do I need to hook this up on my desk?

The box includes HDMI, USB-A-to-A and USB-A-to-Type-C cables; you need three HDMI sources, one HDMI display, a USB 3.0 port on the host and optional 3.5 mm mic or headphones.
