Small black rectangular capture box with HDMI ports and USB-C cable

LUOM

LUOM OZC3-3 4K 30Hz USB 3.0/USB-C Video Capturing Device (Black)

SKU CH-VZTD-73X11

Captures 4K 30 Hz HDMI video and outputs 1080p 60 fps via USB 3.0 or USB-C with zero-latency pass-through and a 3.5 mm mic input

  • InterfaceUSB 3.0/USB-C
  • Resolution Support4K@30Hz
  • Camera ResolutionUp to 4K Video
  • ColorBlack
  • HDMI1 Input/1 Output
  • USB Port1
  • Captures 1080P 60FPS gameplay for smooth recordings
  • 4K 30Hz pass-through keeps your monitor at full resolution
  • Driver-free USB 3.0 connection works instantly on Windows, Linux, Mac
  • 5 mm mic input adds live commentary without extra hardware
  • HDMI loop-out supports 15 m cable runs at 1080P and below

Capture Interface

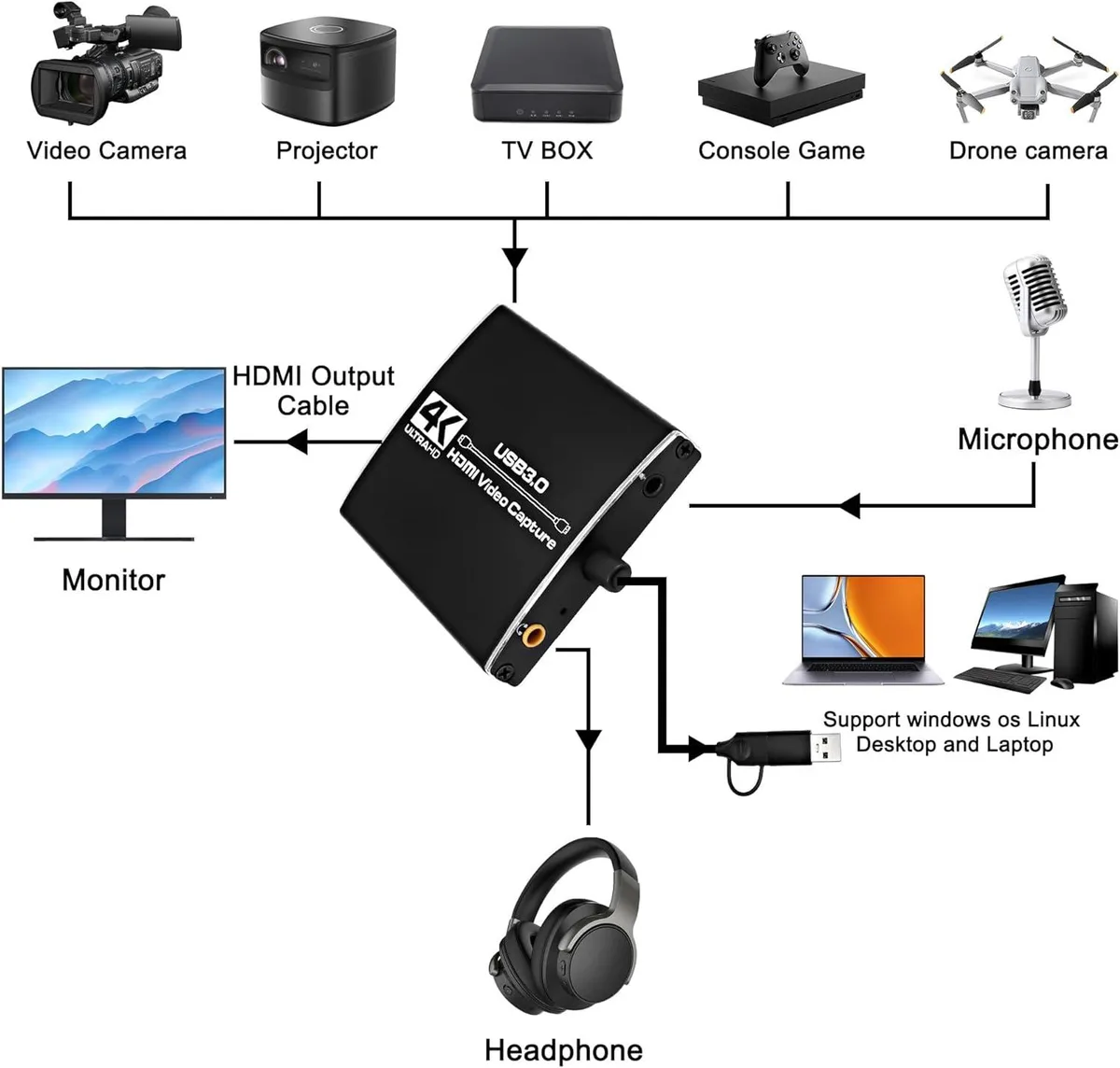

The LUOM OZC3-3 is a USB 3.0 and USB-C video capture device that accepts one HDMI input and provides one HDMI loop-out. It is aimed at streamers and content creators who need to record or broadcast gameplay from consoles such as Switch, PS4, PS5 or Xbox One, as well as from cameras or set-top boxes.

Build Integration

The unit draws power directly from the host USB port and requires no external supply or driver installation on Windows, Linux or macOS. A 3.5 mm microphone jack lets you add live commentary without routing audio through the console. The HDMI pass-through sends the source signal to a display at up to 4K 30 Hz while the USB link delivers captured footage to recording software.

Resolution Headroom

The device can ingest a 4K 30 Hz signal but captures at a maximum of 1080p 60 FPS over USB 3.0. The HDMI output mirrors the input at 4K 30 Hz for zero-latency monitoring. AWG26 cables up to 15 metres are supported for 1080p and lower resolutions. Builders needing 4K 60 FPS capture or multi-channel input will need a different solution.

Highlights

  • Captures 1080P 60FPS gameplay for smooth recordings
  • 4K 30Hz pass-through keeps your monitor at full resolution
  • Driver-free USB 3.0 connection works instantly on Windows, Linux, Mac
  • 5 mm mic input adds live commentary without extra hardware
  • HDMI loop-out supports 15 m cable runs at 1080P and below

Specifications

BrandLUOM
SeriesOZC3-3
ModelOZC3-3
InterfaceUSB 3.0/USB-C
Resolution Support4K@30Hz
Camera ResolutionUp to 4K Video
ColorBlack
HDMI1 Input/1 Output
USB Port1
Option4K

Questions about this item

How long an HDMI cable can I run into the OZC3-3 at 1080p?

The capture device supports AWG26 HDMI cable up to 15 metres for 1080p and lower resolutions.

Does the LUOM OZC3-3 need a fan or external power when streaming all day?

No external power supply is required and the unit has no fan, so it runs silently with low power draw over USB 3.0.

Which connectors must my source and PC already have for this capture card to work?

Your source needs an HDMI output and your computer needs a USB 3.0 or USB-C port; a 3.5 mm mic jack is optional for commentary.
