Small black rectangular capture card with HDMI and USB ports

LUOM

LUOM OZC2 HDMI to USB 3.0 1080p60 Video Capture Device

SKU CH-2V8K-GJ65E

Captures HDMI sources up to 4K@30 fps and streams 1080p@60 fps over USB 3.0 with no drivers or external power needed

  • InterfaceUSB 3.0
  • FormatYUV / JPEG; Support audio format: L-PCM
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • HDMI1 In
  • Capture at 1080p 60 fps for smooth streaming
  • Accepts 4K 30 fps input from consoles or cameras
  • Works with OBS, VLC and Amcap on Windows, Mac and Linux
  • No driver or external power needed — just plug in
  • Compact 5.71 × 4.57 × .59 in design weighs 1.76 oz

What it does and who uses it

The LUOM OZC2 is a compact video capture device that converts an HDMI source to a USB 3.0 signal for a computer. It accepts up to 4K input and delivers a maximum 1080p60 output stream. Streamers, educators and gamers can connect a camera, console or camcorder to record or broadcast live without installing drivers.

The specification that decides fit

The single figure that determines suitability is the 1080p60 maximum capture resolution. If your workflow requires recording or streaming at 4K or at a higher frame rate, this device will not meet that need. It supports 8, 10 and 12-bit colour depth and outputs in YUV or JPEG formats for broad software compatibility.

Thermals noise and power draw

The unit draws power directly from the USB 3.0 port, so no external adapter is required. Its small aluminium enclosure passively dissipates heat during typical capture sessions. There are no moving parts, so operation is silent. The lightweight design adds negligible load to a laptop or desktop USB bus.

Highlights

  • Capture at 1080p 60 fps for smooth streaming
  • Accepts 4K 30 fps input from consoles or cameras
  • Works with OBS, VLC and Amcap on Windows, Mac and Linux
  • No driver or external power needed — just plug in
  • Compact 5.71 × 4.57 × .59 in design weighs 1.76 oz

Specifications

BrandLUOM
SeriesOZC2
ModelOZC2
InterfaceUSB 3.0
FormatYUV / JPEG; Support audio format: L-PCM
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
HDMI1 In
USB Port1
SoftwareSupport most acquisition software, such as VLC / OBS / Amcap, etc
CompatibilityCompatible with Windows, Mac, and Linux. Easily connect your DSLR, camcorder, or action camera to your PC or Mac. Makes it easier for you to have real-time streaming for Twitch, Youtube, OBS, Potplayer and VLC
System RequirementsConnect your DSLR, camcorder or action camera to your Windows, MacOS and Linux.
SpecificationSupport Output Resolution: 1080P@60Hz Max
Support Input Resolution: 4K @60Hz Max
Support Color: 8/10/12bit deep color
Support Cable: AWG26 HDMI standard cable, input up to 15 meters (1080P and below resolution);
Video Output Format: YUV / JPEG; Support audio format: L-PCM
Max Working Current: 0.4A/5V DC
Operating Temperature Range: -10 to +55?
Dimension: 64x28x13 (mm); Weight: 21.4g
FeatureHDMI audio and video signals can be transmitted to the computer and smartphone for preview and storage, now you can enjoy stunning real-time video streaming.

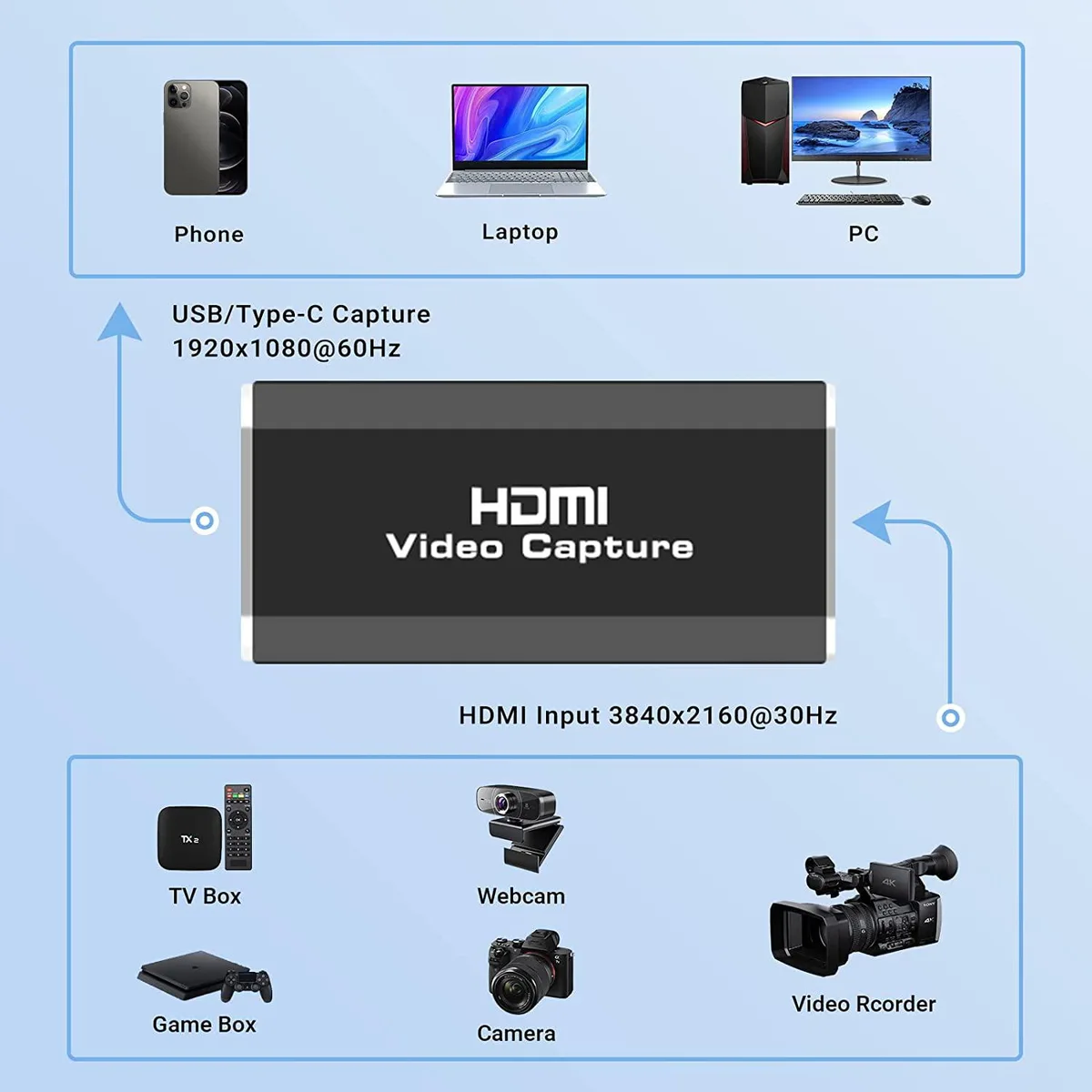

It support HDMI input 3840x2160P and USB output (capture) 1920x1080P video and stereo sound.
Connect (SLR camera, camcorder or motion camera) to (Windows, MacOS, Android or Linux) to easily get real-time streaming media from software such as OBS Studio, Zoom, Potplayer, Twitch, Youtube, and VLC.
No driver or external power supply, suitable for high-definition acquisition, teaching recoding, Gaming, medical imaging, live streamin
Dimensions5.71 x 4.57 x 0.59 inches
Weight1.76 ounces
Package ContentAudio Video Capture Cards 1PCSUser Manual 1PCS
OptionHDMI and USB - 1080p

Questions about this item

What does 1080P@60FPS output mean when I plug this capture card into my computer?

The card captures HDMI sources at up to 4K@30FPS and delivers a 1080P@60FPS YUV or JPEG stream over USB 3.0, so recording or streaming software sees smooth 60-frame 1080p video.

How does the USB 3.0 interface limit what I can actually record?

USB 3.0 bandwidth caps the captured stream to 1080P@60FPS max, even though the HDMI input can accept 3840x2160@30FPS; higher frame rates or resolutions cannot pass through the USB link.

What physical space and cable length do I need to install the LUOM OZC2?

The unit measures 5.71 x 4.57 x 0.59 inches and weighs 1.76 ounces; it works with AWG26 HDMI cables up to 15 meters at 1080P and below.
