LUOM
LUOM KW208 12V 100-2000CCA 1.8" Color Screen Electronic Battery Tester
Tests 12V batteries from 100 to 2000 CCA with a 1.8-inch colour screen and shows health, cranking and charging data
- FeaturesFunction : System voltage 12 Volts and Voltage test in wavef
- Height5.98 inch
- Width3.39 inch
- Length1.77 inch
- Weight0.46 pounds
- FitmentKONNWEI KW208 Auto Battery Analyzer For All 12V Cars
- Tests 100–2000 CCA across multiple battery standards
- 8″ colour screen shows voltage waveform and health %
- Checks cranking and charging systems for starter and alternator
- Compact 1.77″ × 3.39″ × 5.98″ design weighs .46 lb
- Lifetime free firmware updates keep readings current
12V Battery Analyser with 1.8" Colour Screen
The LUOM KW208 is a 12V automotive battery tester that measures cold cranking amps from 100 to 2000 CCA. It evaluates battery health, cranking performance and charging system output on a 1.8 inch colour display. The unit weighs 0.46 pounds and measures 5.98 by 3.39 by 1.77 inches. It suits owners of cars, boats, motorcycles and trucks who want a handheld diagnostic tool.
Suited for 12V lead-acid batteries only

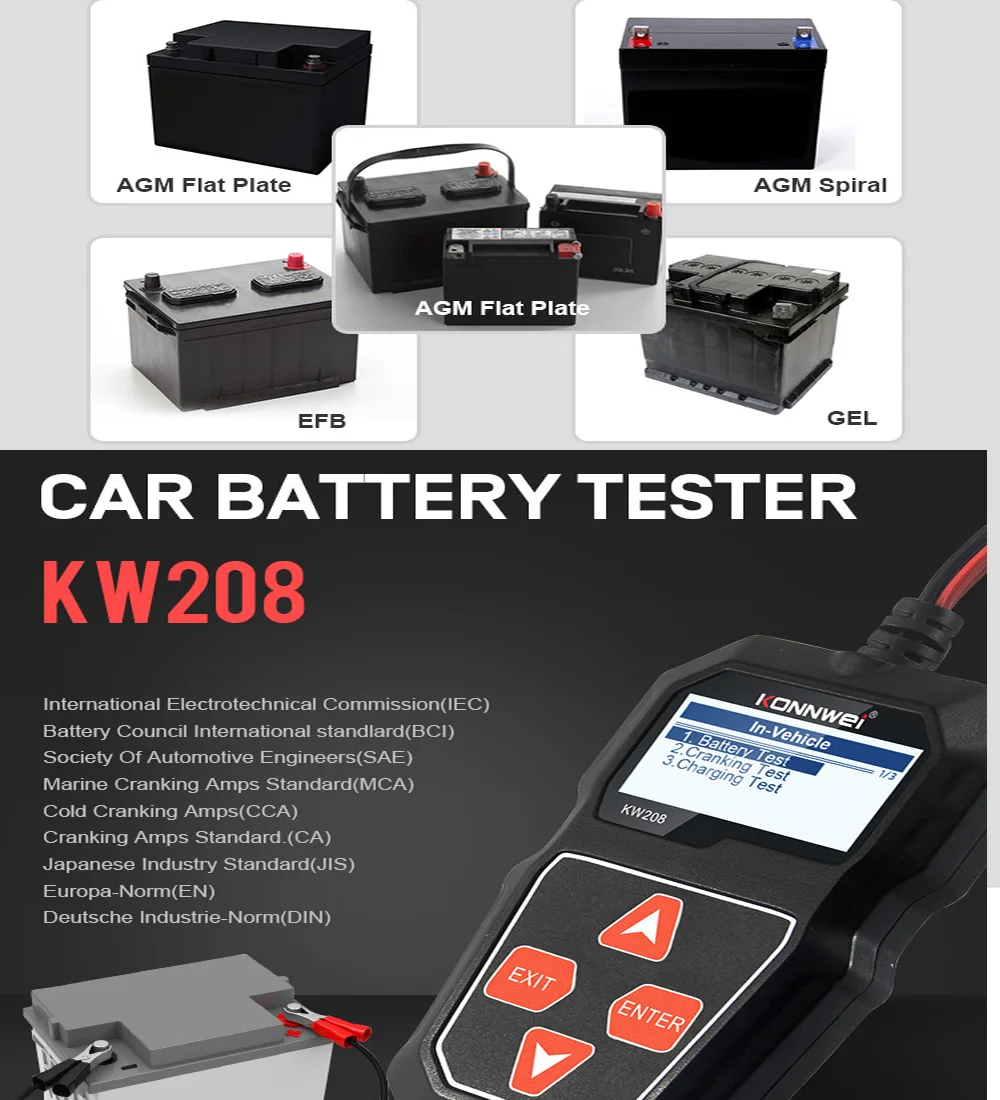

This tester covers regular flooded, AGM flat plate, AGM spiral and gel batteries rated between 100 and 2000 CCA under SAE, EN, DIN, IEC, BCI, CA, MCA and JIS standards. It does not support 6V, 24V or high-voltage EV packs. Buyers needing lithium-specific algorithms or voltages above 16V DC should look elsewhere. The operating temperature range is 0°C to 50°C.
TPU case and lifetime firmware updates
A protective TPU case is included to shield the device from drops and workshop fluids. The analyser records test data for later replay and offers lifetime free firmware updates via the manufacturer. No additional software licences or subscription fees are required. The package contains the tester, case and connecting leads for immediate use.
Highlights
- Tests 100–2000 CCA across multiple battery standards
- 8″ colour screen shows voltage waveform and health %
- Checks cranking and charging systems for starter and alternator
- Compact 1.77″ × 3.39″ × 5.98″ design weighs .46 lb
- Lifetime free firmware updates keep readings current
Specifications
| Brand | KONNWEI |
|---|---|
| Model | KW208 |
| Features | Function : System voltage 12 Volts and Voltage test in waveform Test Result Good, Recharge or Replace Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mO) and Life in percentage (%) Cranking system and Charging system Record and re-play battery data, Life-time free update service Battery test, cranking test, charging test and other additional functions. The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported. Feature : Measure Standard ,CCA 100-2000 ,BCI 100-2000 ,CA 100-2000 ,MCA 100-2000 |
| Height | 5.98 inch |
| Width | 3.39 inch |
| Length | 1.77 inch |
| Weight | 0.46 pounds |
| Fitment | KONNWEI KW208 Auto Battery Analyzer For All 12V Cars |
Questions about this item
Does the LUOM KW208 need an external 12 V supply to operate?
No, the tester draws power from the 12 V battery under test, so no separate supply is required.
Will the LUOM KW208 work with an AGM spiral battery rated at 1400 CCA?
Yes, the analyser supports all 12 V battery types including AGM spiral and covers the DIN 100-1400 range.
How do I confirm the LUOM KW208 is reading correctly after connecting the clamps?
The 1.8 inch colour screen will show the system voltage waveform and a test result of Good, Recharge or Replace.
