Rectangular black handheld tester with screen and cable clamps

LUOM

LUOM KW208 12V 100-2000 CCA Battery Tester electronic

SKU CH-DKT1-9CBFY MPN KW208

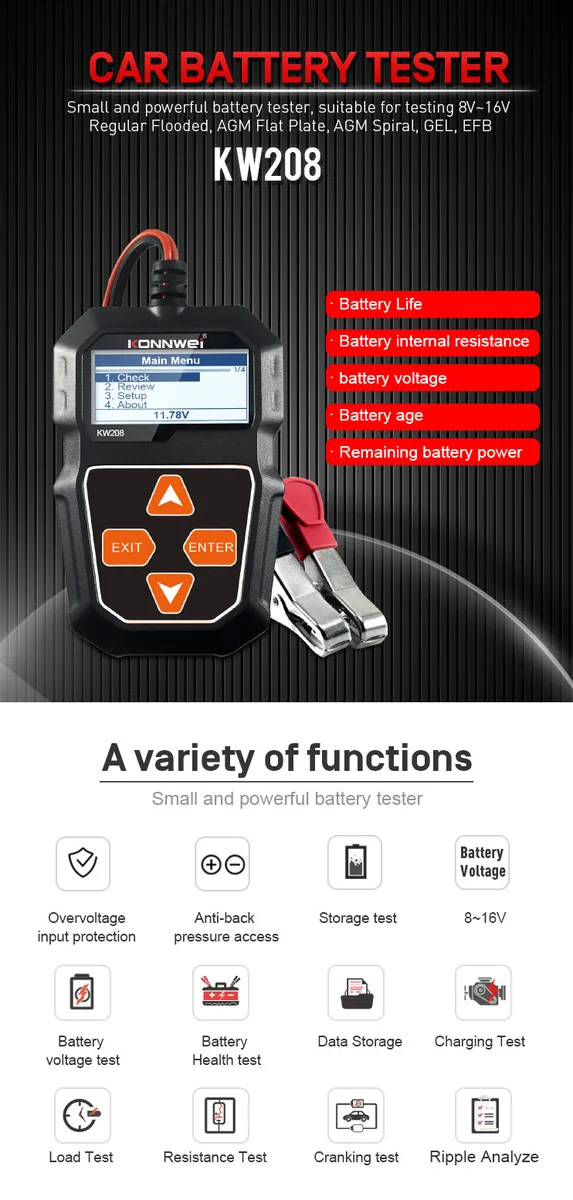

Tests 12 V batteries from 100 to 2000 CCA, plus cranking and charging systems, with waveform voltage display

  • FeaturesFunction : System voltage 12 Volts and Voltage test in wavef
  • Height5.98 inch
  • Width3.39 inch
  • Length1.77 inch
  • Weight0.46 pounds
  • FitmentKONNWEI KW208 Auto Battery Analyzer For All 12V Cars
  • Tests battery health across 100–2000 CCA range
  • Checks cranking system voltage in real-time waveform
  • Analyses charging system output for alternator faults
  • Displays internal resistance and life percentage clearly
  • Free lifetime firmware updates keep tester current

Purpose & Audience

The LUOM KW208 is a 12-volt automotive battery analyser built for technicians and owners who need to assess cranking health, charging output and starter performance on cars, SUVs and light trucks. It reads CCA, DIN, EN, IEC and SAE ratings from 100 to 2000 and displays voltage waveforms, internal resistance in milliohms and remaining life as a percentage.

Who It Suits & Who Should Look Elsewhere

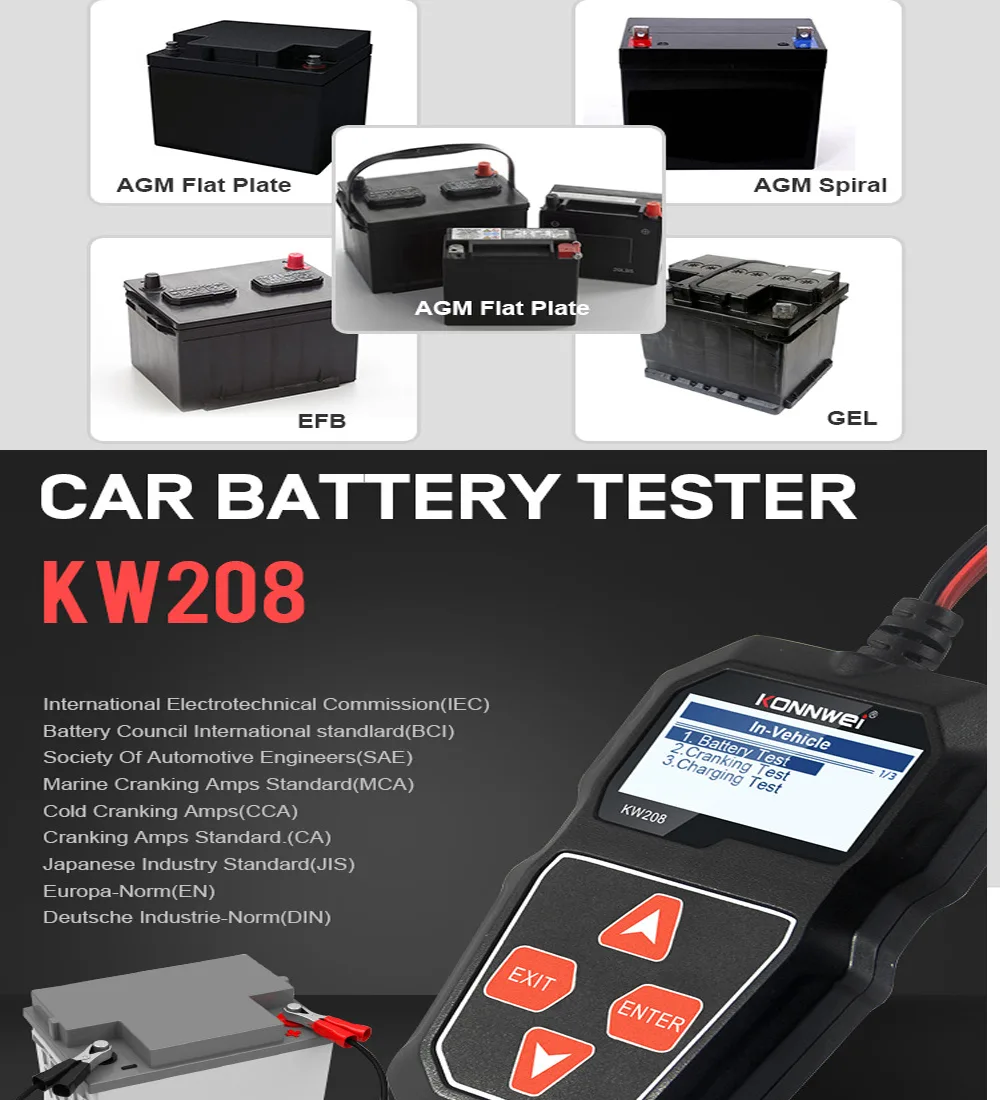

This tool suits anyone testing 12-volt flooded, AGM flat-plate, AGM spiral or gel batteries within the stated CCA range and who wants record-and-replay data with free lifetime updates. It is not for users working on 6-volt or 24-volt systems, nor for those needing to evaluate batteries rated above 2000 CCA or outside the supported DIN, EN, IEC and SAE scales.

Deciding Specification

The single figure that decides fitment is the 100-2000 CCA test window; if your batteries fall inside that range the KW208 will report good, recharge or replace status plus cranking and charging system results, while batteries outside the window cannot be measured by this unit.

Highlights

  • Tests battery health across 100–2000 CCA range
  • Checks cranking system voltage in real-time waveform
  • Analyses charging system output for alternator faults
  • Displays internal resistance and life percentage clearly
  • Free lifetime firmware updates keep tester current

Specifications

BrandKONNWEI
ModelKW208
FeaturesFunction :
System voltage 12 Volts and Voltage test in waveform
Test Result Good, Recharge or Replace
Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mO) and Life in percentage (%)
Cranking system and Charging system
Record and re-play battery data, Life-time free update service
Battery test, cranking test, charging test and other additional functions.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported.
Feature :
Measure Standard ,CCA 100-2000 ,BCI 100-2000 ,CA 100-2000 ,MCA 100-2000
Height5.98 inch
Width3.39 inch
Length1.77 inch
Weight0.46 pounds
FitmentKONNWEI KW208 Auto Battery Analyzer For All 12V Cars

Questions about this item

Does the KW208 generate noticeable heat or noise during extended testing sessions?

The KW208 is a compact handheld analyser weighing .46 pounds with no internal fan; it draws minimal power from the 12 V battery under test and remains cool and silent during normal use.

What must I already have to operate the KW208 battery tester?

You need a 12 V vehicle battery rated between 100 and 2000 CCA; the tester connects directly to the battery terminals and requires no external power source or additional modules.

Will the KW208 work with the older DIN or JIS rated batteries in my classic cars?

Yes, the analyser supports DIN 100-1400 and JIS 26A17-245H2 standards alongside EN, IEC, SAE, BCI, CA and MCA, so it reads older European and Japanese battery ratings directly.
