LUOM
LUOM HDMI2SDI HDMI to Dual SDI Video Capturing Device with Power Supply
Converts HDMI to dual SDI outputs up to 1080p with embedded audio sync and auto format detection for broadcast displays
- InterfaceHDMI to SDI
- 3D SupportYes
- FormatInput HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- Video Sampling4:2:2 and 4:4:4
- Converts HDMI to dual SDI for broadcast workflows
- Auto-detects 3G, HD and SD-SDI formats
- Supports 1080p at 24, 25, 30, 50, 60 Hz
- Embedded audio and video stay in sync
- Plug-and-play on Windows, Android, macOS, Linux
HDMI-to-dual-SDI video converter
This LUOM HDMI2SDI unit converts a single HDMI source into two simultaneous SDI outputs. It is designed for camera operators, broadcast engineers and streaming professionals who need to send 1080p video over long SDI cable runs. The metal enclosure provides shielding and heat dissipation for continuous industrial use. Plug-and-play operation requires no driver installation on Windows, macOS, Linux or Android.
Bundled power supply and manual
The included external power supply ensures stable 2.970 Gbit/s 3G-SDI transmission without drawing current from the HDMI source. A printed manual covers the automatic format detection that selects between 3G-SDI, HD-SDI and SD-SDI standards. Embedded audio travels with the video so sound and picture stay in sync across both SDI outputs. No software licence or additional cabling is supplied.
Maximum 1080p resolution limit
The converter accepts HDMI inputs up to 1080p at 60 Hz but cannot pass 4K or higher frame-rate signals. Output distance reaches 100 metres for 3G-SDI, 200 metres for HD-SDI and 300 metres for SD-SDI. It is not bi-directional and will not convert SDI back to HDMI. Chaining multiple units of this type is discouraged by the manufacturer.
Highlights
- Converts HDMI to dual SDI for broadcast workflows
- Auto-detects 3G, HD and SD-SDI formats
- Supports 1080p at 24, 25, 30, 50, 60 Hz
- Embedded audio and video stay in sync
- Plug-and-play on Windows, Android, macOS, Linux
Specifications
| Brand | LUOM |
|---|---|
| Series | HDMI2SDI |
| Model | HDMI2SDI |
| Interface | HDMI to SDI |
| 3D Support | Yes |
| Format | Input HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color | Black |
| Video | Input HDMI Format: 480P, 576P,720P@50/60Hz,1080p@24/25/30/50/60Hz 800x600P@60Hz,1024x768P@60Hz 1280x800P@60Hz,1280x960P@60Hz,1360x768P@60Hz 1400x1050P@60Hz,1440x900P@60Hz,1600x1200P@60Hz,1680x1050P@60Hz Output SDI Format:720P@50/60Hz, 1080P@24/25/30/50/60Hz |

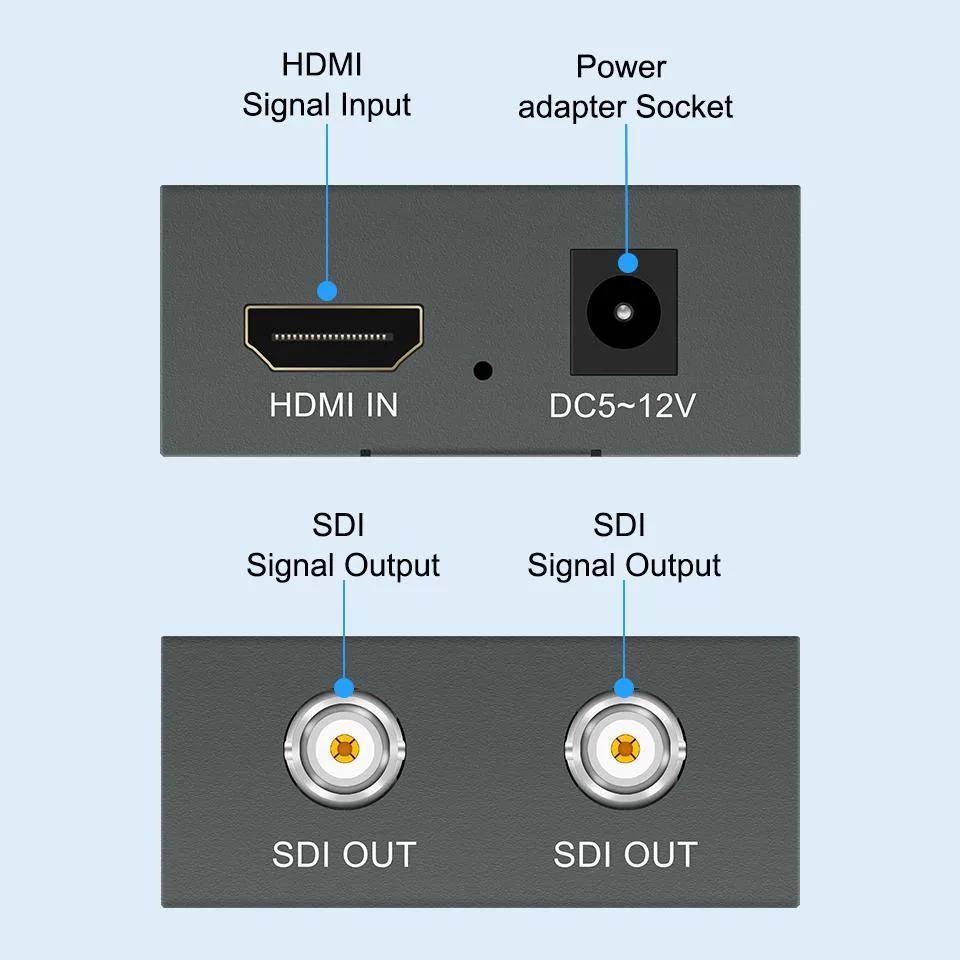

| HDMI | 1 In |
| SDI | 2 Out |
| USB Port | 1 |
| LED Indicator | Yes |
| Display | This HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.97 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Supply | NO need external power supply |
| Feature | 1.Supports 1ch HDMI input, 2ch SDI output 2.Embedded audio and image synchronization output 3.Support HDMI 1.3, HDCP1.3 4.Built-in ESD protection circuitry can effectively prevent electrostatic damage |
| Dimensions | 5.83 x 4.49 x 2.44 inches |
| Weight | 7.8 ounces |
| Package Content | 1 x HDMI to SDI Converter 1 x Power Adapter 1 x Uuse Manual |
| Option | HDMI - 1080p |
Questions about this item
Will the SDI output connectors or internal ESD protection circuitry need replacement after extended professional use?
The unit has built-in ESD protection circuitry designed to prevent electrostatic damage, and the durable metal body is anti-corrosion and rust-proof for long-term reliability.
What is the maximum SDI cable length before signal quality degrades during all-day operation?
SDI output distance is supported up to 100 meters for 3G-SDI, 200 meters for HD-SDI, or 300 meters for SD-SDI at the specified bitrates.
How much heat does the metal enclosure dissipate when converting 1080p60 HDMI to dual 3G-SDI continuously?
Excellent heat radiation from the metal body keeps a favourable working temperature during sustained broadcast-grade conversion at 2.970 Gbit/s.
