LUOM
LUOM E-yield T06 USB 3.0 KVM Switch 4 Ports 2 PCs 1920 x 1080
Share four USB 3.0 peripherals between two computers with a single button press and LED status indication
- TypeUSB
- Computer Connections4 Ports
- Monitor Connections4 Ports
- Video Resolution1920 x 1080
- PC SelectionManual Switch
- AutoScan Interval3 seconds
- Share 4 USB 3.0 devices between two computers with one-button switching
- Supports 1920 x 1080 video resolution for VGA, SVGA and Multi-Sync monitors
- Plug-and-play operation with no driver installation required on Windows, Mac, Linux or Chrome OS
- Bus-powered design needs no external power supply for standard peripherals
- Optional micro-USB power port adds stability for high-draw devices such as HDDs and SSDs
LUOM E-yield T06 USB 3.0 KVM Switch

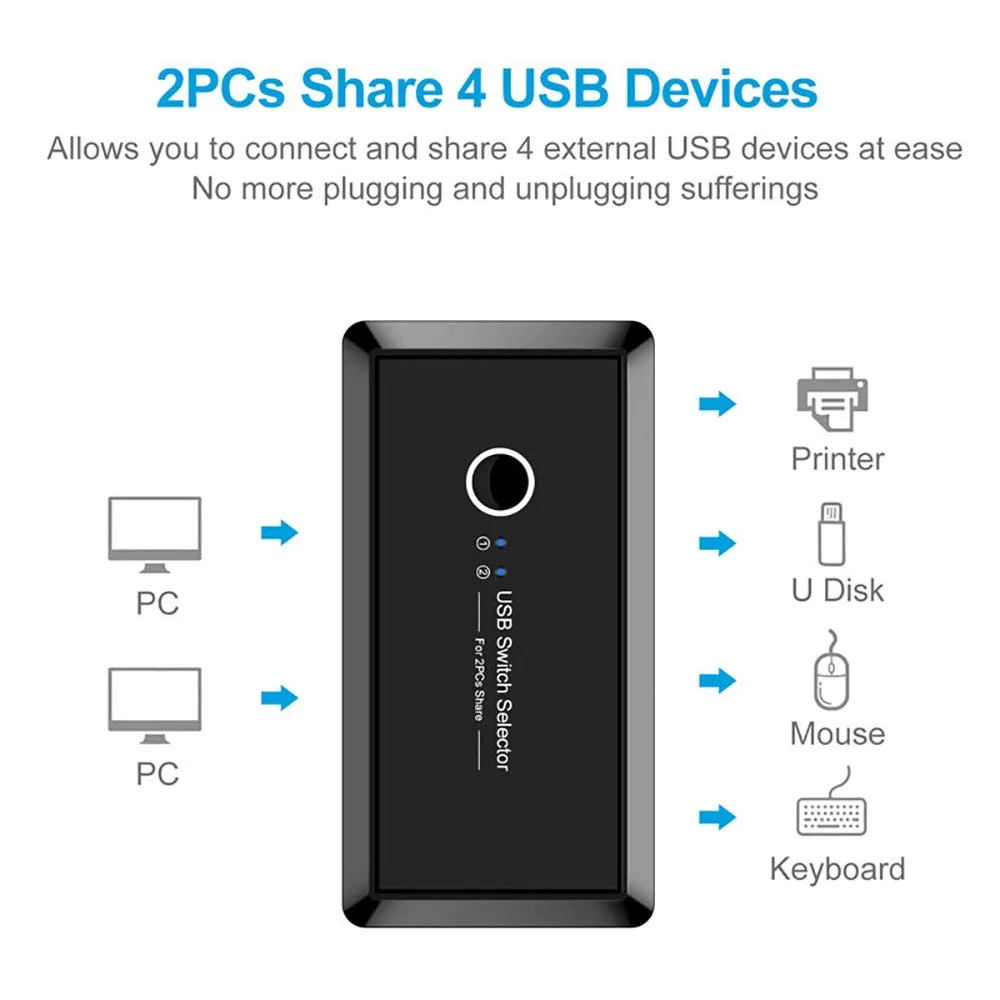

The LUOM E-yield T06 is a USB 3.0 KVM switch that lets two computers share four USB peripheral devices. It supports video resolutions up to 1920 x 1080 at a bandwidth of 150 MHz. The unit operates without an external power supply and uses a manual button for switching between the connected systems.
Suits two-computer setups sharing four USB 3.0
This switch suits users who need to share keyboards, mice, printers, or storage drives between two PCs or Macs. It works with Windows, macOS, Linux, and Chrome OS without driver installation. Buyers who need to connect more than two computers or require automatic timed switching should look at a different solution.

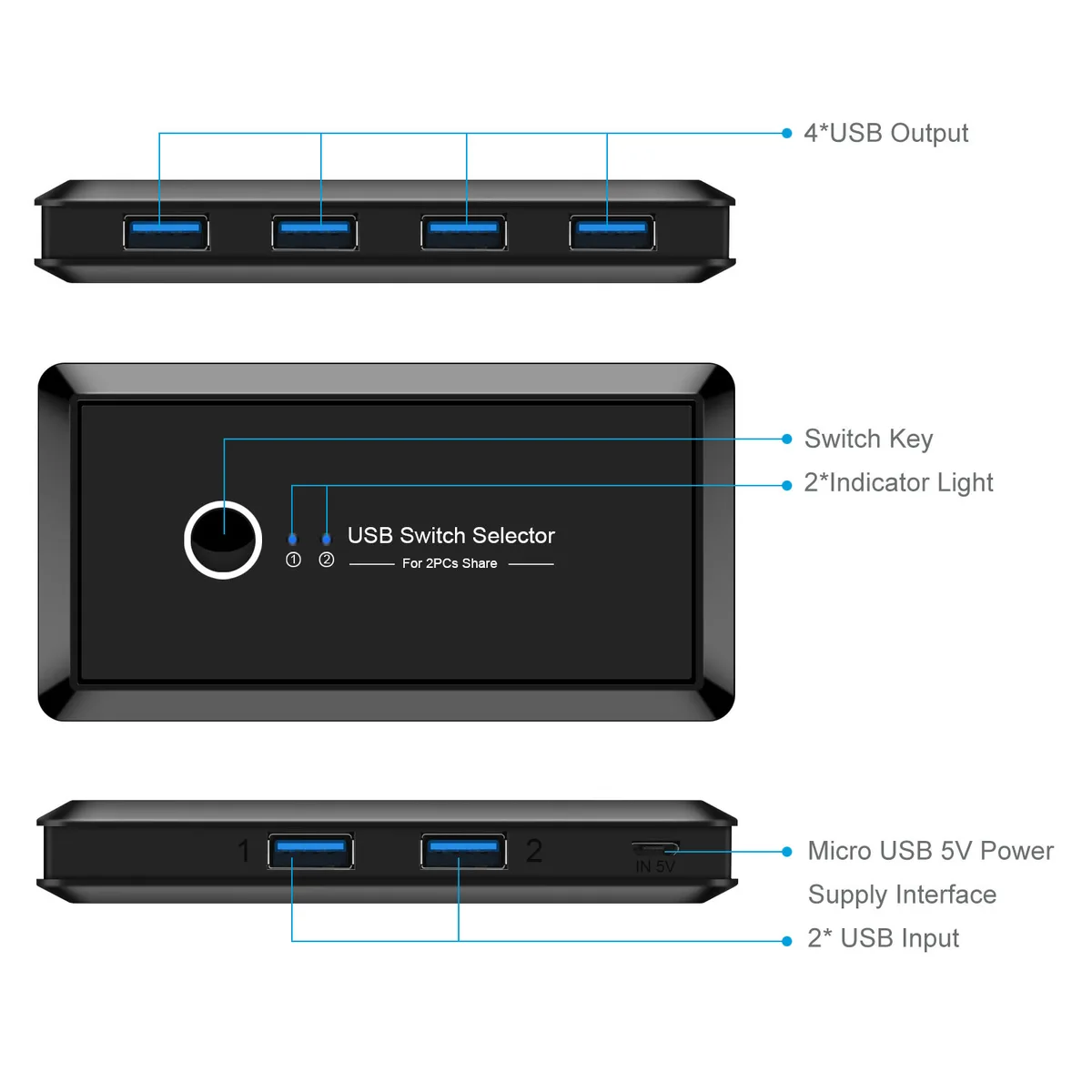

Manual push-button switching with LED indication
The single front-panel button toggles control between the two connected computers. LED indicators show which system is currently active. An optional micro-USB power port is available for high-draw peripherals such as external hard drives. A standard 5 V adapter is required for that function and is not included.
Highlights
- Share 4 USB 3.0 devices between two computers with one-button switching
- Supports 1920 x 1080 video resolution for VGA, SVGA and Multi-Sync monitors
- Plug-and-play operation with no driver installation required on Windows, Mac, Linux or Chrome OS
- Bus-powered design needs no external power supply for standard peripherals
- Optional micro-USB power port adds stability for high-draw devices such as HDDs and SSDs
Specifications
| Brand | LUOM |
|---|---|
| Series | E-yield T06 |
| Model | E-yield T06 |
| Type | USB |
| Computer Connections | 4 Ports |
| Monitor Connections | 4 Ports |
| Video Resolution | 1920 x 1080 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| Bandwidth | 150 MHz |
| Monitors Supported | VGA, SVGA and Multi-Sync |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0% to 90%,Non-Condensing |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| SplitterOnly | Video Switch |
| Weight | 0.3 lbs |
| Package Contents | with Cables |
Questions about this item
What cables come in the box so I can connect both computers right away?
The package includes cables for linking two computers and four USB 3.0 peripherals, so no extra cables are needed for a basic setup.
Will my older USB 2.0 printer and scanner still work through the four USB 3.0 ports?
Yes, the four USB 3.0 ports are backward compatible, so USB 2.0 devices such as printers and scanners will function normally.
How do I know which computer is active after I press the switch button?
LED indicator lights on the unit show which of the two connected computers is currently selected.
