LUOM E-yield T05 USB 2.0 Switch 2 PCs 4 Devices Scanner Hub U-Disk
Shares four USB 2.0 peripherals between two computers with a single button press and no drivers required
- TypeUSB
- Computer Connections4 Ports
- Monitor Connections4 Ports
- Video Resolution1920 x 1080
- PC SelectionManual Switch
- AutoScan Interval3 seconds
- Share 4 USB 2.0 peripherals between two computers with one button press
- No driver installation needed on Windows 10, 8.1, 7, Vista, XP, Mac OS X, Linux or Chrome OS
- Optional micro-USB power port adds stability for hard drives, SSDs and video cameras
- Bus-powered design requires no external power supply for typical devices
- Manual switching with LED indication shows the active computer at a glance
Two-computer USB 2.0 sharing switch
The LUOM E-yield T05 lets two computers share four USB 2.0 peripherals with a single button press. It supports keyboards, mice, printers, scanners and flash drives without cable swapping or network configuration. The switch draws power from the USB bus and includes an optional micro-USB port for a standard 5 V adapter when higher-draw devices are connected. No driver installation is required on Windows, macOS, Linux or Chrome OS.

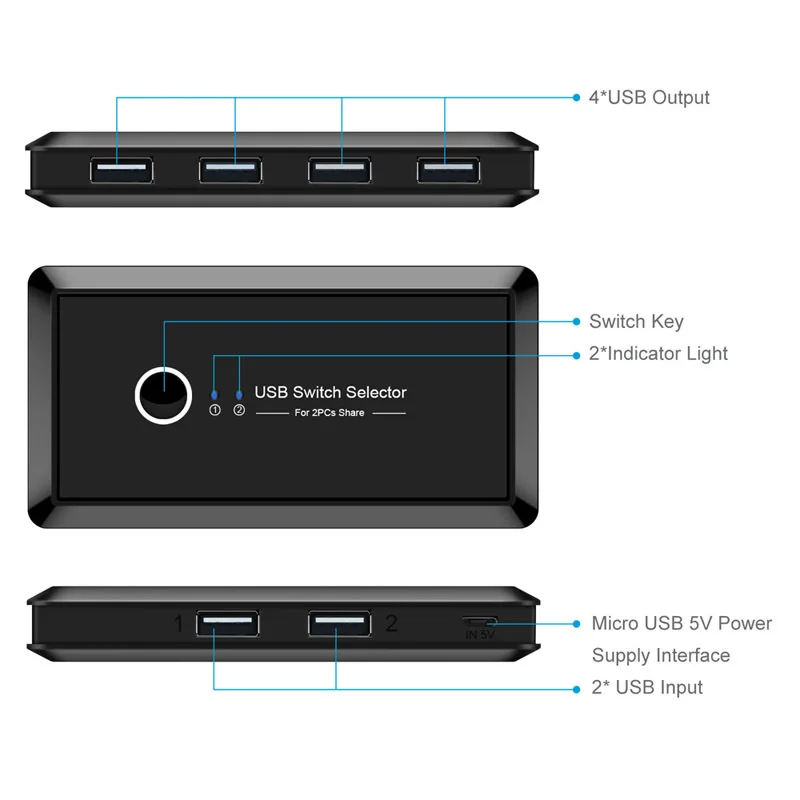

Button switching with LED indication
A front-panel button toggles the active computer while LEDs show which system currently owns the four downstream ports. The optional micro-USB power input stabilises operation with portable hard drives, SSDs or digital video cameras that exceed bus-power limits. Auto-scan cycles every three seconds when enabled, and the 150 MHz bandwidth handles 1920 x 1080 video timing through the VGA, SVGA and Multi-Sync monitor ports. Cables are included in the package.
Small offices and dual-PC home desks
Buyers who need to share a printer, scanner and input devices between two workstations will find the four-port layout and manual switching straightforward. Users who require automatic switching based on peripheral activity, more than two upstream computers, or USB 3.x speeds should look at other solutions. The unit operates from 0 °C to 50 °C in up to 90 % non-condensing humidity and weighs 0.3 lbs.
Highlights
- Share 4 USB 2.0 peripherals between two computers with one button press
- No driver installation needed on Windows 10, 8.1, 7, Vista, XP, Mac OS X, Linux or Chrome OS
- Optional micro-USB power port adds stability for hard drives, SSDs and video cameras
- Bus-powered design requires no external power supply for typical devices
- Manual switching with LED indication shows the active computer at a glance
Specifications
| Brand | LUOM |
|---|---|
| Series | E-yield T05 |
| Model | E-yield T05 |
| Type | USB |
| Computer Connections | 4 Ports |
| Monitor Connections | 4 Ports |
| Video Resolution | 1920 x 1080 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| Bandwidth | 150 MHz |
| Monitors Supported | VGA, SVGA and Multi-Sync |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0% to 90%,Non-Condensing |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| SplitterOnly | Video Switch |
| Weight | 0.3 lbs |
| Package Contents | with Cables |
Questions about this item
Will the optional micro-USB power port need a 5 V adapter later if I add a portable hard drive?
The switch includes a micro-USB female port for optional 5 V power; a standard 5 V adapter (not included) can be connected when bus power is insufficient for devices such as HDDs or SSDs.
What is the highest video resolution the 150 MHz bandwidth can sustain continuously?
The unit supports up to 1920 x 1080 resolution over VGA, SVGA or Multi-Sync monitors within its 150 MHz bandwidth rating.
How warm does the housing get when the switch runs all day at 50 °C ambient?
Operating temperature is rated 0 °C to 50 °C (32 °F to 122 °F) with 0 % to 90 % non-condensing humidity; the fanless, bus-powered design produces minimal heat under normal load.
