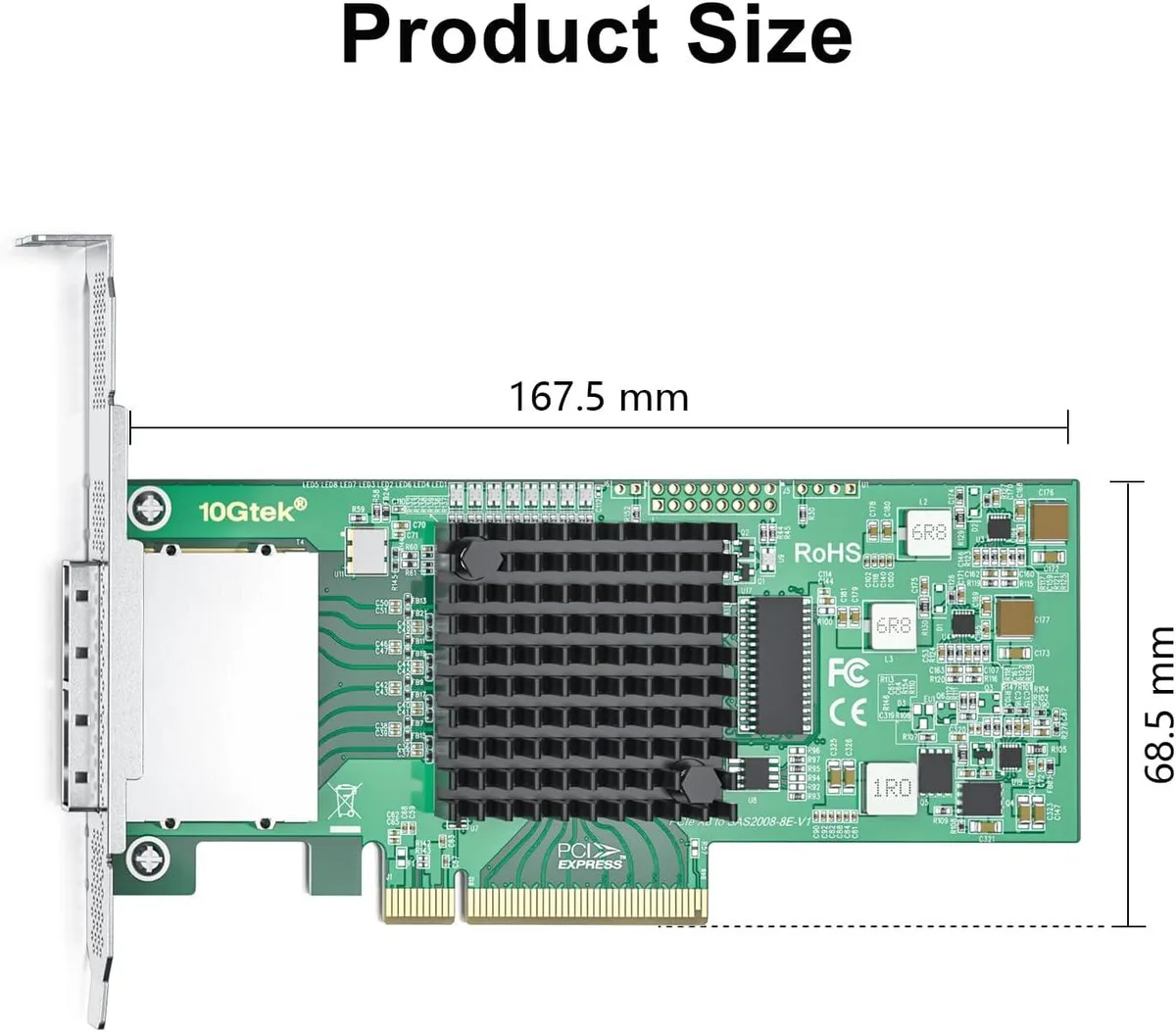

Green circuit board with silver bracket and two external SFF-8088 ports

LSI

LSI SAS 2008 HBA X8 6Gb/s 2x SFF-8088

SKU CH-VSDT-BNW0D

An external PCI Express SAS/SATA host bus adapter with the LSI SAS 2008 controller, eight PCIe 2.0 lanes, two SFF-8088 ports and support for up to 512 non-RAID devices

  • LSI SAS 2008 controller delivers 6.0 Gb/s SAS/SATA connectivity

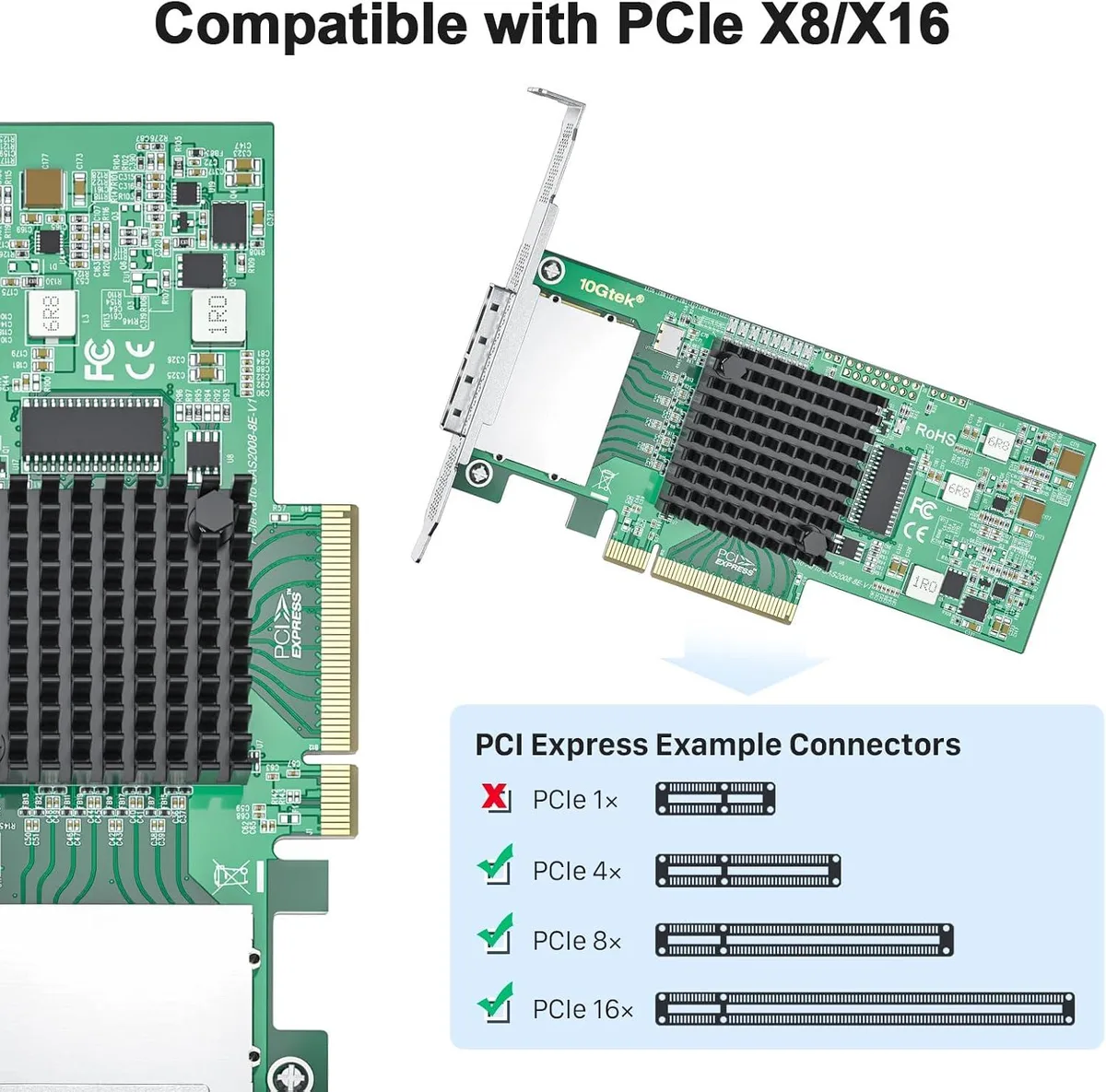

  • PCIe 2.0 x8 lane provides high-bandwidth host interface
  • Two SFF-8088 ports enable external storage expansion
  • Supports up to 512 non-RAID SAS/SATA devices in JBOD mode
  • Includes driver CD and low-profile bracket for flexible installation

External SAS HBA for storage expansion

This LSI SAS 2008 host bus adapter adds two external SFF-8088 ports over a PCIe 2.0 x8 link. It connects up to 512 non-RAID SAS or SATA devices in JBOD mode. The card targets administrators who need to attach external drive enclosures to a server or workstation. A low-profile bracket and driver media are included in the package.

Replaces onboard ports or older HBAs

The adapter upgrades systems that lack external SAS connectivity or that are limited to slower internal controllers. It is worth the change when you must move large arrays outside the chassis or when the existing HBA cannot address the required device count. The 6 Gb/s SAS 2.0 link matches the speed of many current enterprise drives without requiring a full RAID controller.

Sustained throughput across many drives

Under continuous load the PCIe 2.0 x8 interface delivers consistent bandwidth to all attached targets. The SAS 2008 controller manages command queues for hundreds of devices without a RAID overhead penalty. Thermal output remains modest because the chip operates without an onboard processor for parity calculation. Firmware updates are available from the vendor site for long-term compatibility.

Highlights

  • LSI SAS 2008 controller delivers 6.0 Gb/s SAS/SATA connectivity
  • PCIe 2.0 x8 lane provides high-bandwidth host interface
  • Two SFF-8088 ports enable external storage expansion
  • Supports up to 512 non-RAID SAS/SATA devices in JBOD mode
  • Includes driver CD and low-profile bracket for flexible installation

Specifications

No published specifications for this item yet.

Questions about this item

What PCIe slot and bracket does the LSI SAS 2008 HBA need to fit?

The card uses a PCIe 2.0 x8 lane and ships with a low-profile bracket for slim chassis.

How do I install the driver, and what step is often missed?

Install the card, then run the setup from the included CD or the 10Gtek download; the step often missed is installing the driver before connecting any SAS cables.

When will the SAS ports or controller need replacement?

The SAS2008 controller is rated for 6 Gb/s SAS 2.0 operation; replace the card if port errors appear or if you move beyond 512 non-RAID devices.
