LSI PCIe x4 SATA Controller 20 Ports Non-RAID with 20 Cables Low Profile Bracket

20-Port SATA Expansion

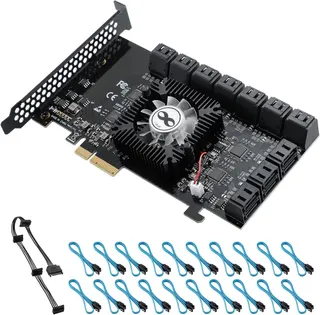

This PCIe x4 controller adds twenty SATA 3.0 ports to a system, allowing up to twenty hard drives to run at the same time. It ships with twenty SATA cables and a low-profile bracket for compact chassis builds. The card targets storage servers and workstations that need dense drive connectivity without RAID overhead. It is not for builders who require on-board hardware RAID functionality.

Sustained Thermal Performance

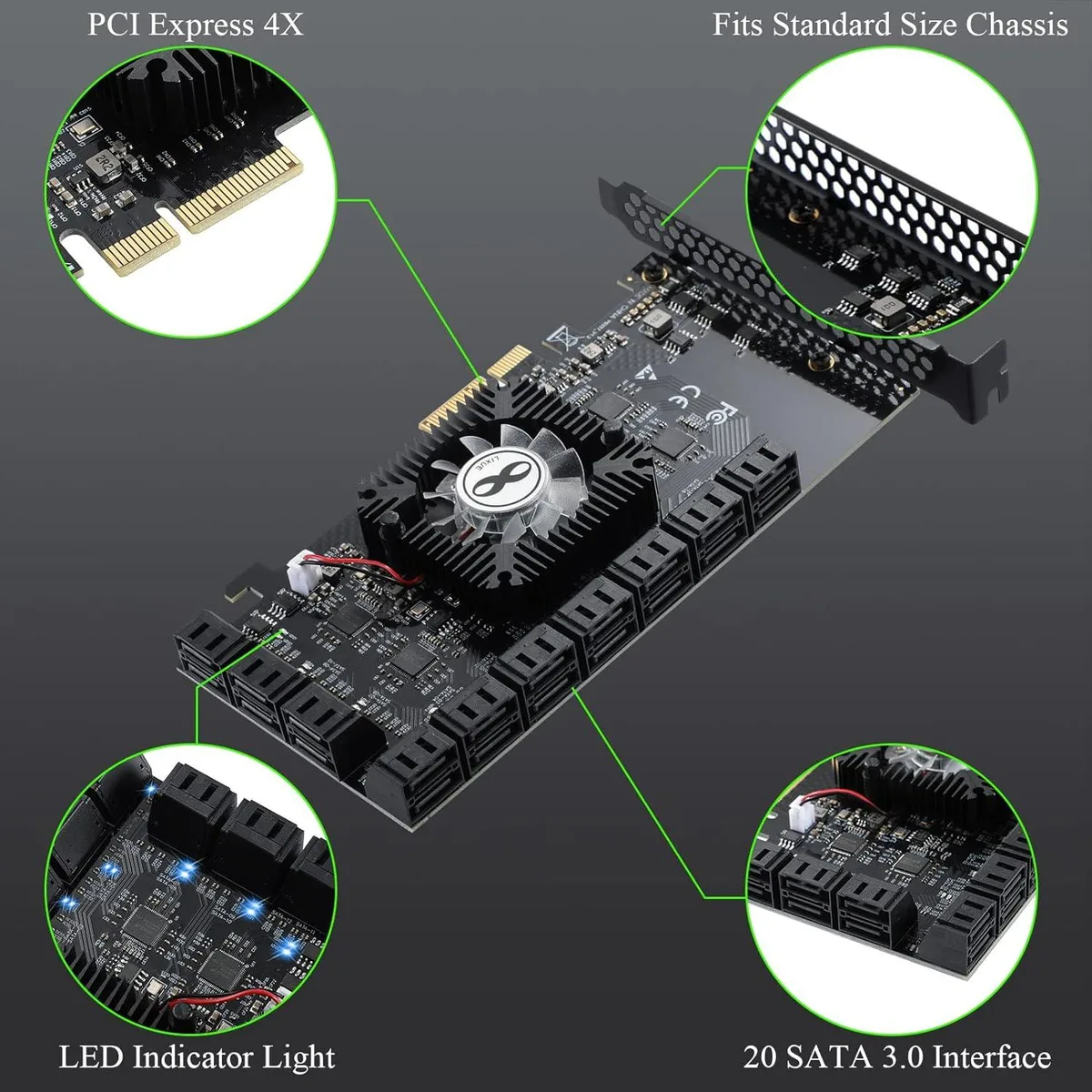

Six ASM1064 controllers paired with an ASM1812 bridge manage the data paths, while a heatsink and cooling fan dissipate heat during continuous multi-drive workloads. The active cooling keeps temperatures in check so that transfer rates remain stable over long sessions. Hot-swap support lets operators replace drives without powering down the host. It is not for environments that rely on passive cooling alone.

Non-RAID JBOD Architecture

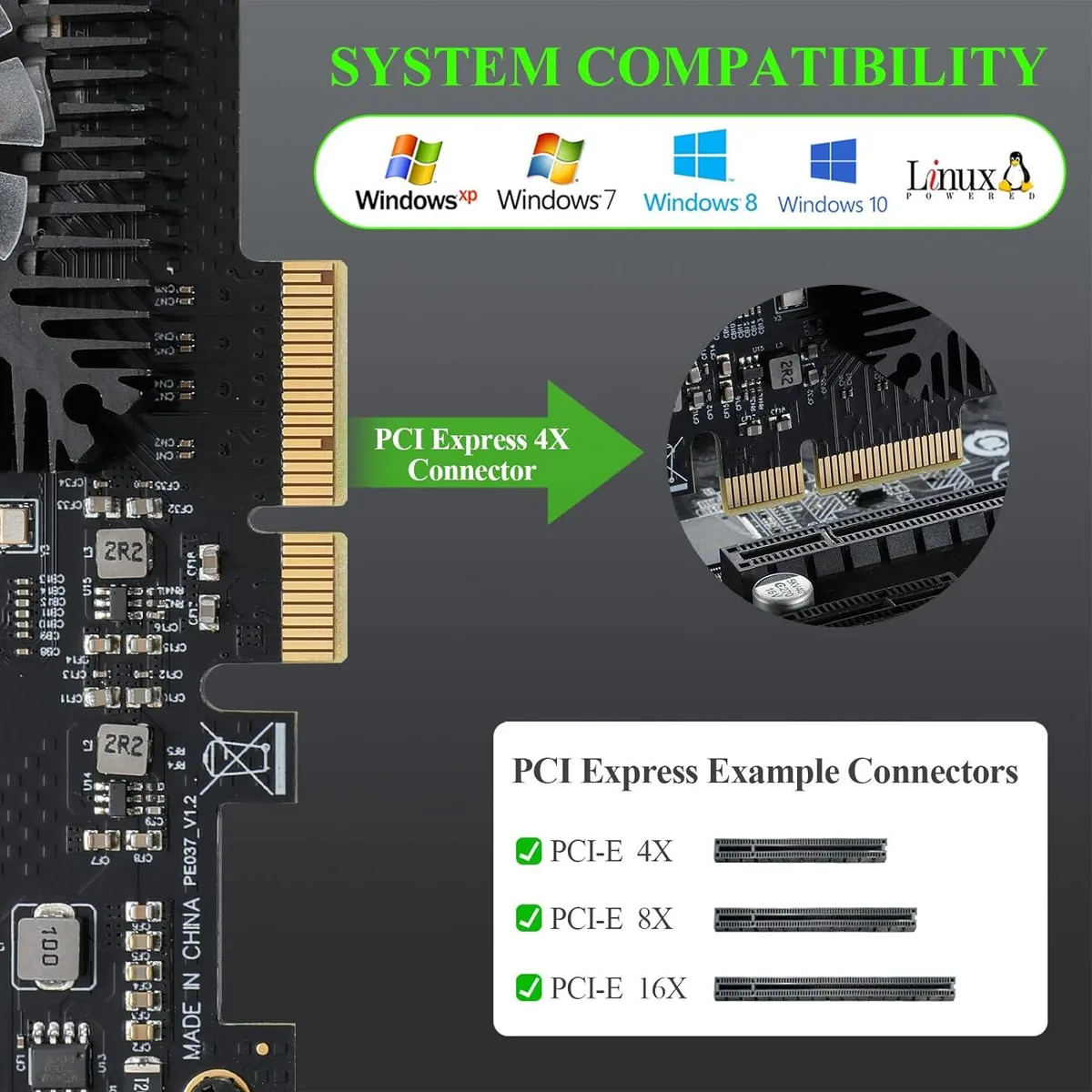

The card operates strictly as a non-RAID host bus adapter, presenting every attached drive individually to the operating system. Compliance with SATA 3.0 at 6 Gbps ensures full per-port bandwidth, while backward compatibility covers SATA 1.0 and 2.0 drives. PCIe 1.0, 2.0 and 3.0 slots at x4, x8 or x16 all accept the card. It is not for arrays that need hardware striping or parity.
