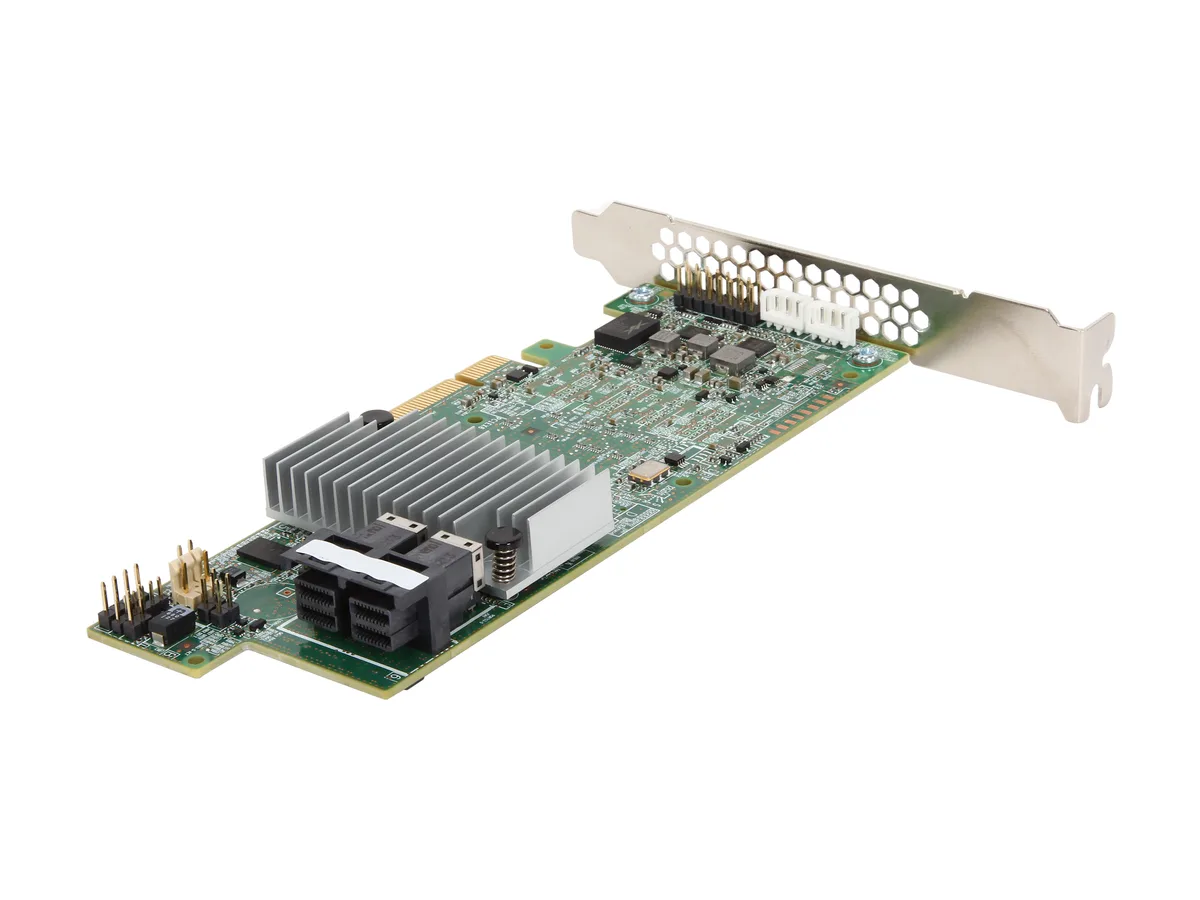

Low-profile RAID card with two horizontal mini-SAS connectors

LSI

LSI MegaRAID SAS 9361-8i LSI00417 12Gb/s RAID controller

SKU CH-1MEF-X1ANW MPN LSI00417

Eight-port 12Gb/s SAS/SATA RAID controller with 1GB DDR3 cache supporting RAID 0, 1, 5, 6, 10, 50, 60 over PCIe 3.0 x8

  • PartLSI00417
  • Form FactorLow Profile
  • TypeSATA / SAS
  • Internal Connectors2 x mini-SAS SFF8643 internal connector (Horizontal mount)
  • InterfacePCI-Express 3.0 x8
  • Transfer RateUp to 12Gb/s

Internal Ports 8i

  • 4i
  • 8i

Struck-through versions exist but are not stocked here.

  • Eight internal ports connect up to 128 drives
  • 12 Gb/s transfer rate accelerates next-generation workloads
  • 1 GB DDR3 1866 cache boosts RAID throughput
  • Supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible protection
  • Low-profile form factor fits space-constrained servers

Eight-port 12 Gb/s RAID controller

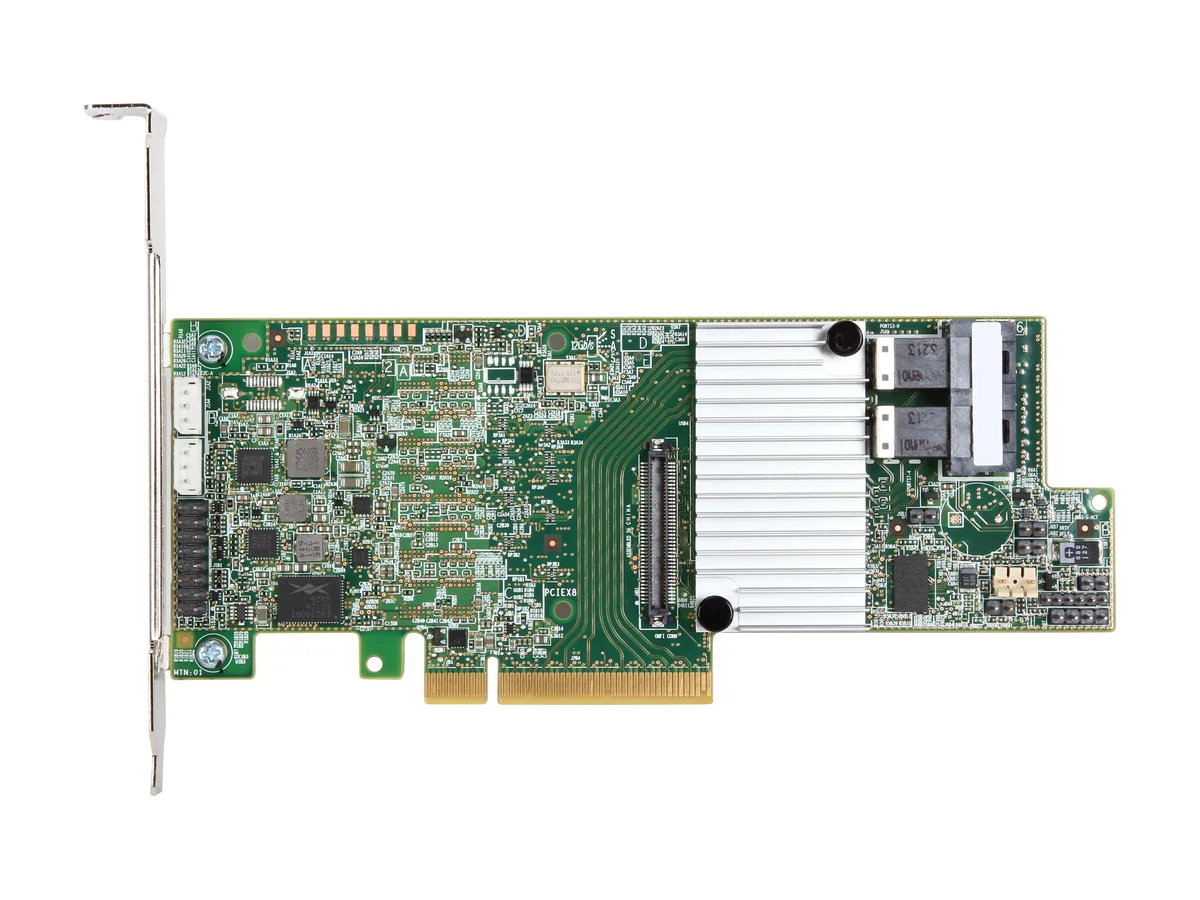

The LSI MegaRAID SAS 9361-8i is a low-profile PCI Express 3.0 x8 card that provides eight internal SAS and SATA ports running at up to 12 Gb/s. It includes 1 GB of DDR3 1866 cache and supports RAID 0, 1, 5, 6, 10, 50 and 60 for servers and storage platforms that need hardware acceleration and data protection across up to 128 drives.

Check PCIe slot and bracket clearance

Verify that your server has a free PCI Express 3.0 x8 slot and enough physical space for a 6.6" by 2.536" low-profile card. The board uses two horizontal mini-SAS SFF8643 connectors, so confirm your backplane or drive cages accept that connector style and that cable routing will not interfere with adjacent components. Operating system support covers Windows Server 2003 through 2012, Linux, Solaris x86, Netware, FreeBSD and VMware.

Low-profile build with horizontal mini-SAS

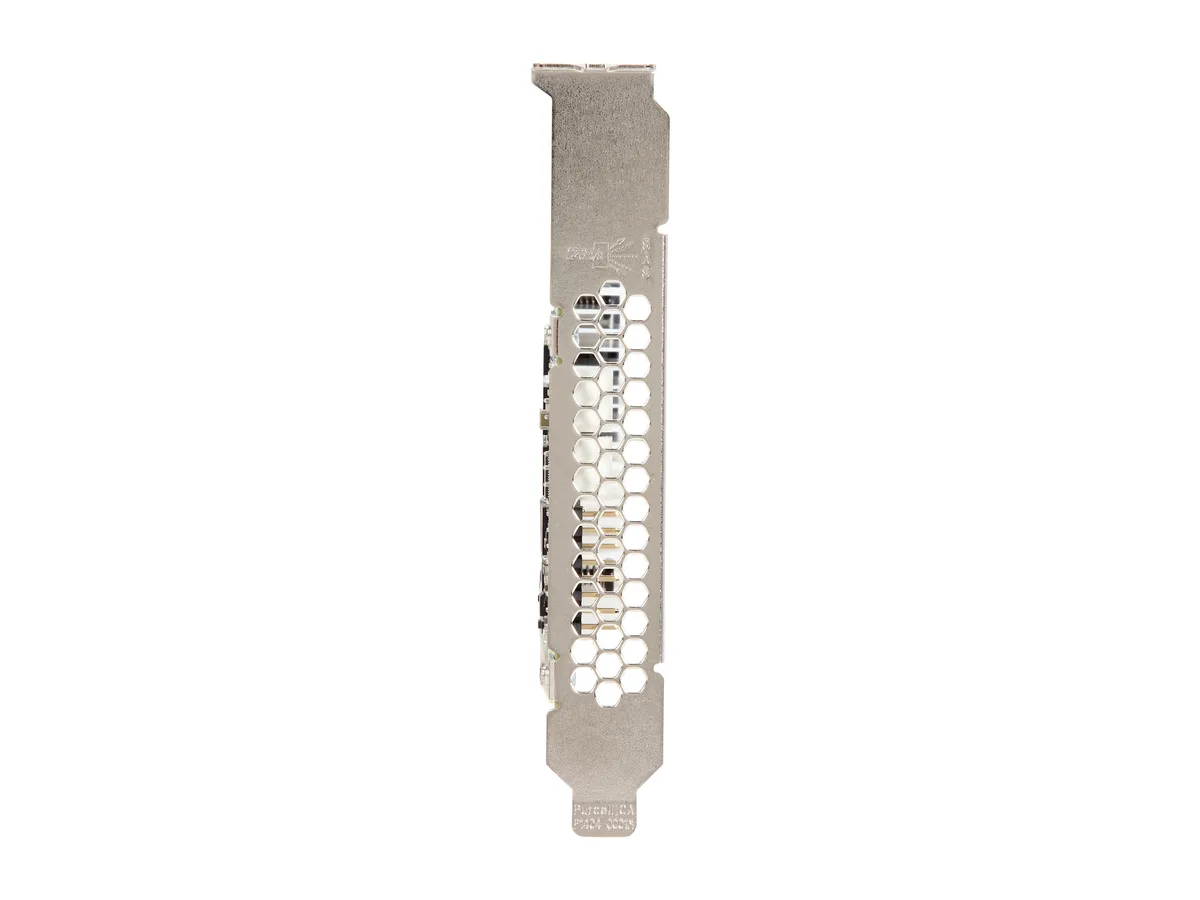

The card ships with a low-profile bracket included, letting it fit in 1U and other slim chassis without a separate bracket purchase. Horizontal SFF8643 ports keep cables running parallel to the motherboard, which eases routing in dense enclosures. Onboard DDR3 cache is soldered, so there is no module to seat or replace, and the controller preserves performance with existing 6 Gb/s and 3 Gb/s drives while supporting advanced software options for added features.

Highlights

  • Eight internal ports connect up to 128 drives
  • 12 Gb/s transfer rate accelerates next-generation workloads
  • 1 GB DDR3 1866 cache boosts RAID throughput
  • Supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible protection
  • Low-profile form factor fits space-constrained servers

Specifications

BrandLSI
Series9300
ModelMegaRAID SAS 9361-8i (LSI00417)
PartLSI00417
Form FactorLow Profile
TypeSATA / SAS
Internal Connectors2 x mini-SAS SFF8643 internal connector (Horizontal mount)
InterfacePCI-Express 3.0 x8
Transfer RateUp to 12Gb/s
Cache Memory1GB DDR3 1866
RAIDRAID 0/1/5/6/10/50/60
Dimensions6.6" x 2.536"
Operating Systems SupportedExtensive support includes Microsoft Windows Server 2012/8 & 7/2008/Vista/2003/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more.
Features12 Gb/s solutions accelerate performance for next-generation
Delivers enterprise-class data protection and security
Preserves investment in 6 Gb/s and 3 Gb/s drives
Support for LSI Advanced Software options
Connect up to 128 3 Gb/s, 6 Gb/s, or 12 Gb/s SATA and SAS devices
Eight internal 12 Gb/s SATA+SAS ports
LSISAS3108: 1.2 GHz PowerPC 476 dual core 12 Gb/s ROC

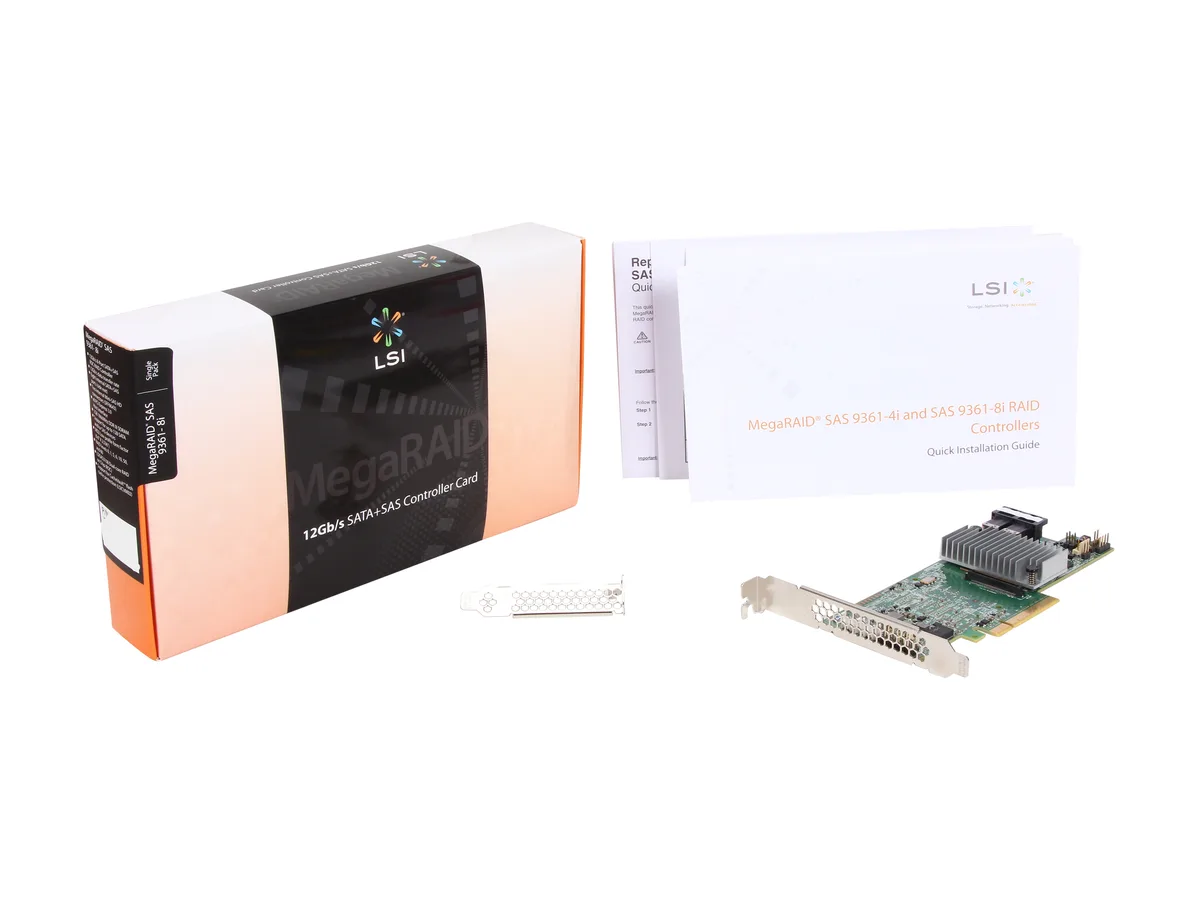

Package ContentsMegaRAID SAS 9361-8i, QIG, LP bracket
Shipping weight0.29 kg
Package size269 × 155 × 48 mm

Questions about this item

Does the box include the cables needed to connect drives to the two mini-SAS SFF8643 ports?

The package contains the MegaRAID SAS 9361-8i card, a quick-install guide and a low-profile bracket; mini-SAS cables for the SFF8643 connectors are not included and must be purchased separately.

The card has 1 GB of DDR3 1866 cache — is that amount fixed or can it be upgraded?

The 1 GB DDR3 1866 cache is soldered on the board and cannot be expanded; choose this model if the built-in capacity meets your workload requirements.

The specification lists up to 12 Gb/s per port — what throughput can I expect with eight SAS drives in RAID 6?

Each of the eight internal ports runs at 12 Gb/s, so the controller can sustain the full 12 Gb/s lane speed to every drive in a RAID 6 array, limited only by the drives themselves and the PCIe 3.0 x8 host link.
