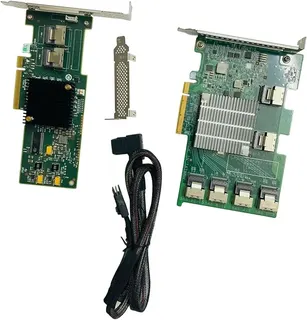

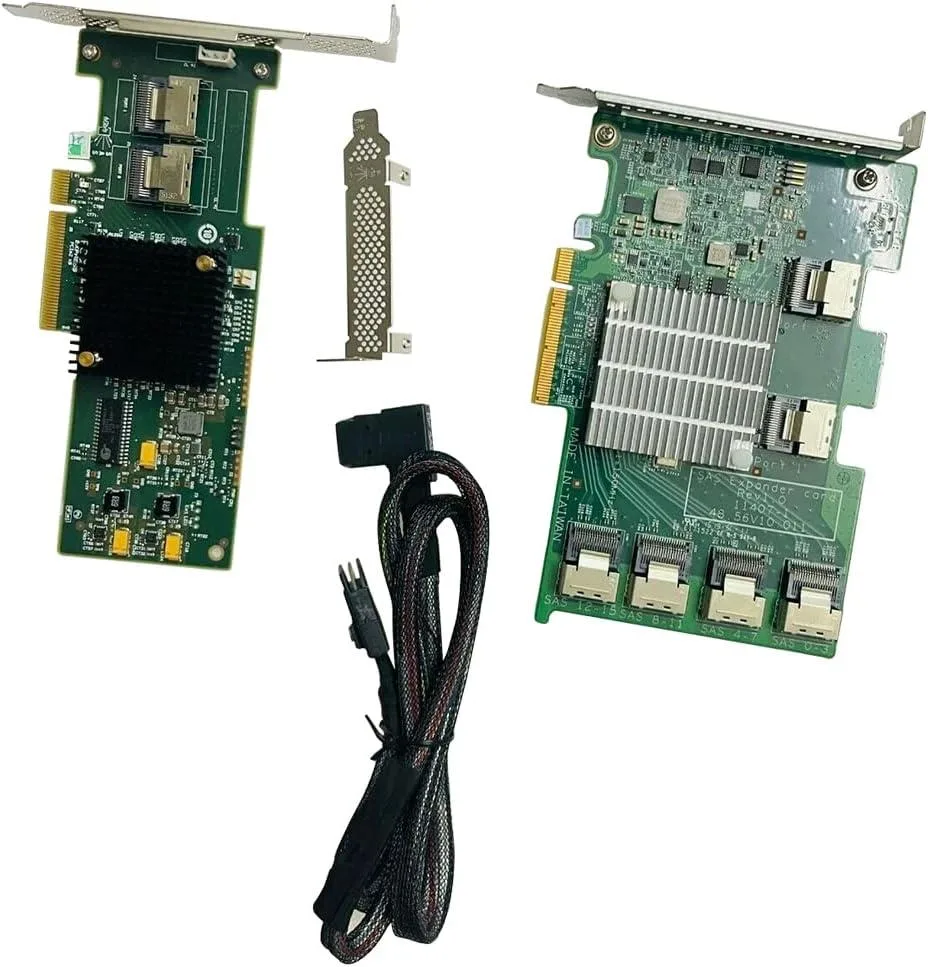

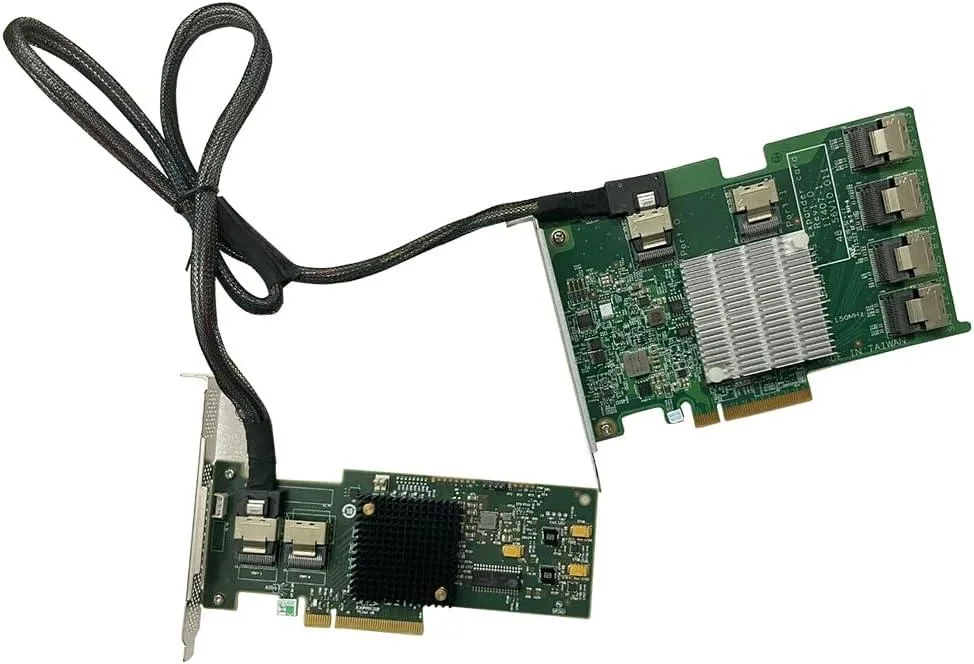

Green circuit board with two silver Mini-SAS ports and gold PCIe edge connector

LSI

LSI M1015 9220-8i SAS SATA 6Gbps PCIe 2.0 HBA

SKU CH-G480-YXXJ0 MPN M1015

Adds eight 6 Gbps SAS or SATA ports through two Mini-SAS connectors on a PCIe 2.0 card flashed to IT mode for ZFS or unRAID

  • Eight internal ports via two Mini-SAS SFF-8087 connectors
  • 6 Gbps SAS and SATA throughput on PCIe 2.0
  • IT-mode firmware enables direct drive access for ZFS
  • LSI SAS2008 controller with eight-lane internal connectivity

PCIe 2.0 HBA with dual Mini-SAS

This LSI M1015 host bus adapter uses the SAS2008 controller on a PCIe 2.0 slot. It provides two internal Mini-SAS SFF-8087 connectors for SAS or SATA drives at 6 Gbps. The card ships with HBA IT mode firmware for direct drive access.

Ideal for ZFS, TrueNAS CORE and unRAID

The IT mode firmware makes this card a good fit for software RAID platforms that manage redundancy themselves. Builders who need hardware RAID offload or external port connectivity should consider a different model.

Highlights

  • Eight internal ports via two Mini-SAS SFF-8087 connectors
  • 6 Gbps SAS and SATA throughput on PCIe 2.0
  • IT-mode firmware enables direct drive access for ZFS
  • LSI SAS2008 controller with eight-lane internal connectivity

Specifications

No published specifications for this item yet.

Questions about this item

How much power does the LSI M1015 9220-8i draw when running continuously?

The LSI SAS2008 controller on this card is rated for a typical power draw of 20 W under full load.

Which cables or backplanes must I already have to connect drives to the two Mini-SAS SFF8087 ports?

You need Mini-SAS SFF8087 to SFF8087 cables for direct backplane links, or SFF8087 to four SATA breakout cables for individual drives.
