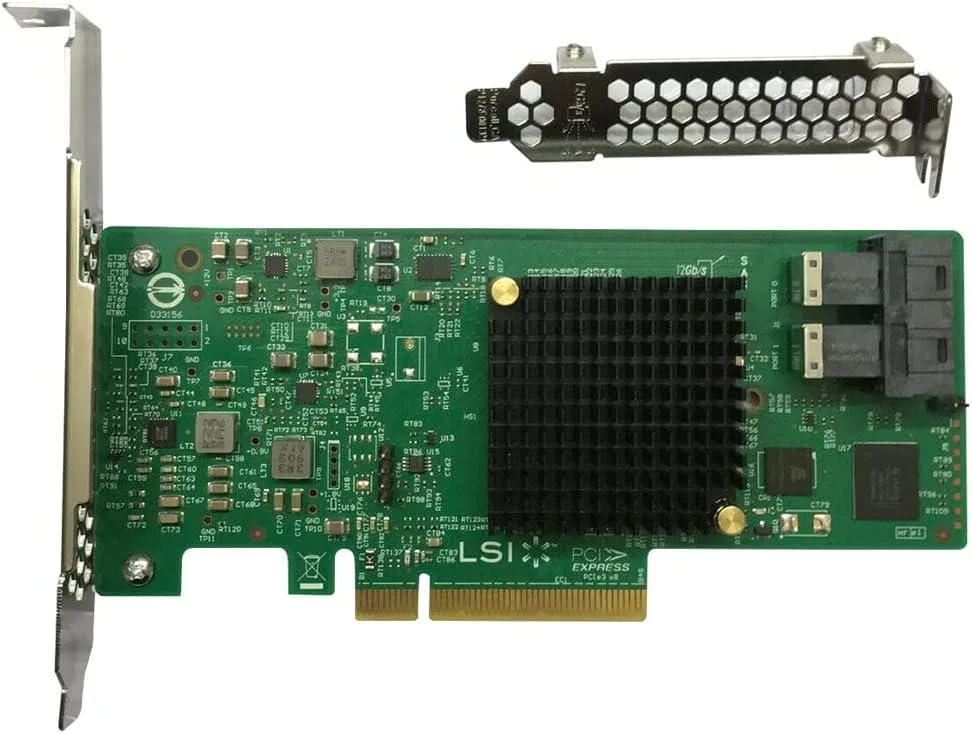

Green circuit board with two SFF-8643 ports and PCIe gold fingers

LSI

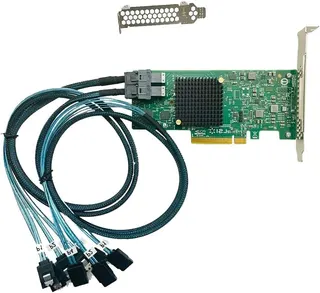

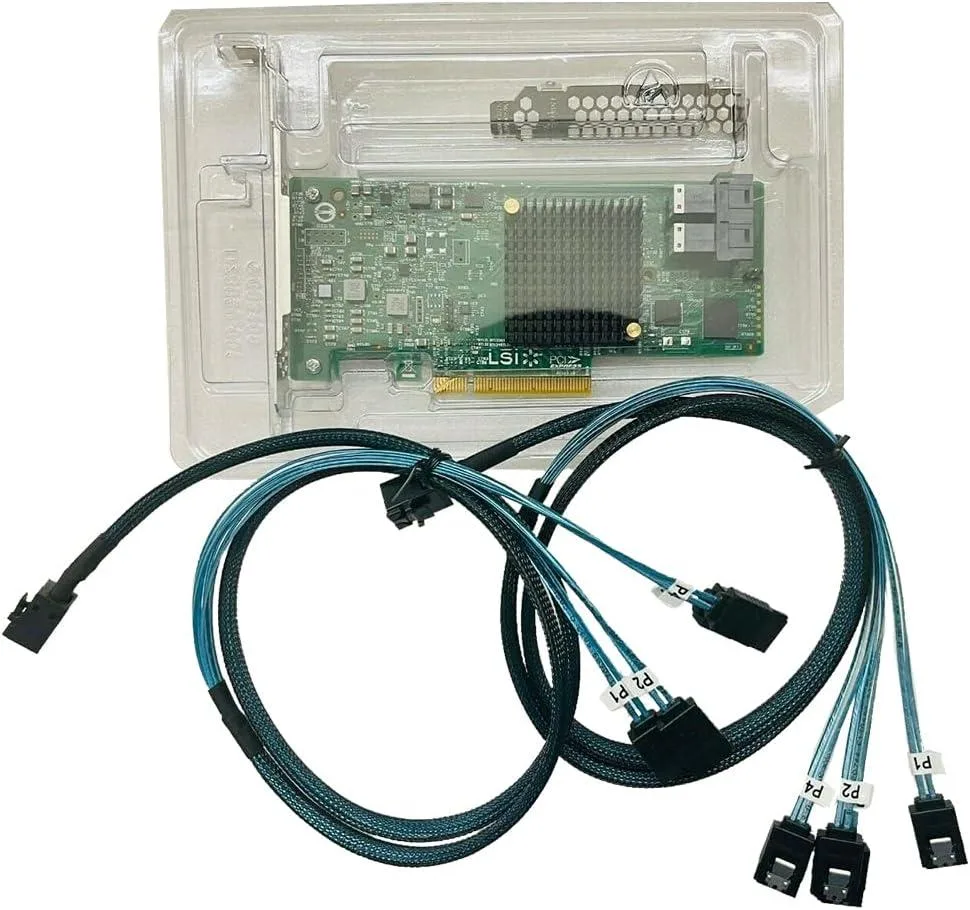

LSI 9300-8i SAS 12Gbps HBA IT Mode + 2 SFF-8643 SATA Cable

SKU CH-J4TV-7VVJ8

Eight-port 12 Gbps SAS host bus adapter with IT-mode firmware and two SFF-8643 cables for ZFS or unRAID arrays

  • 12Gbps SAS throughput for fast storage arrays
  • PCIe 3.0 host interface for modern server platforms
  • HBA IT mode firmware enables direct drive access
  • Two Mini-SAS HD SFF-8643 internal connectors included
  • Bundled SFF-8643 to SATA cables simplify drive installation

LSI 9300-8i HBA with IT Mode

The LSI 9300-8i is a 12Gbps SAS host bus adapter built around the SAS3008 controller. It connects through a PCI E 3.0 slot and presents eight internal lanes via two Mini-SAS HD SFF8643 ports. The card ships in HBA IT mode firmware, exposing drives directly to the operating system without RAID abstraction. Two SFF-8643 to SATA cables are included for immediate drive connectivity.

Suited for ZFS and unRAID storage builds

This adapter fits systems running ZFS on FreeNAS or TrueNAS Core, as well as unRAID arrays that benefit from direct drive control. It is not intended for hardware RAID configurations because the IT mode firmware disables RAID functions. Builds requiring boot RAID volumes or proprietary RAID management should select a different controller.

PCI E 3.0 host interface decides compatibility

The card requires an available PCI E 3.0 slot, which also accepts PCI E 2.0 or newer slots at their respective speeds. Two internal SFF8643 connectors provide the only drive attachment points, so chassis backplanes or drive cages must match this interface. The 12Gbps SAS link speed supports SAS and SATA drives at up to that rate per lane.

Highlights

  • 12Gbps SAS throughput for fast storage arrays
  • PCIe 3.0 host interface for modern server platforms
  • HBA IT mode firmware enables direct drive access
  • Two Mini-SAS HD SFF-8643 internal connectors included
  • Bundled SFF-8643 to SATA cables simplify drive installation

Specifications

No published specifications for this item yet.

Questions about this item

How many drives can the LSI 9300-8i connect at 12Gbps?

The card has two SFF-8643 ports, each supporting four lanes, so eight SAS or SATA drives can run at the full 12Gbps rate.

Does the controller generate noticeable heat during continuous operation?

The SAS3008 controller is a low-power design with no active cooling on the card, so it stays cool inside a normal server chassis with standard airflow.

Which slots and cables are required to install this HBA?

You need a free PCIe 3.0 x8 slot and the two included SFF-8643 to SATA cables to connect your drives.
