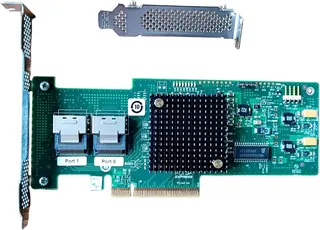

Green circuit board with silver PCIe connector and eight internal SAS ports, low-profile bracket attached

LSI

LSI 9223-8i 6Gbps SAS HBA FW:P20 9211-8i IT Mode

SKU CH-ATMX-T8MAF

Eight-port SAS host bus adapter with LSI SAS2008 chipset, PCIe 3.0 x8 interface and 6Gbps transfer speed running IT mode firmware P20

  • 8 internal ports connect multiple SAS or SATA drives
  • PCIe 3.0 x8 interface provides 6Gbps bandwidth per port
  • LSI SAS2008 controller chipset handles RAID-free HBA workloads
  • Pre-flashed IT Mode P20 firmware (20.00.07.00) enables direct drive access
  • Includes full-height and low-profile brackets for flexible mounting

8-port SAS HBA with IT Mode firmware

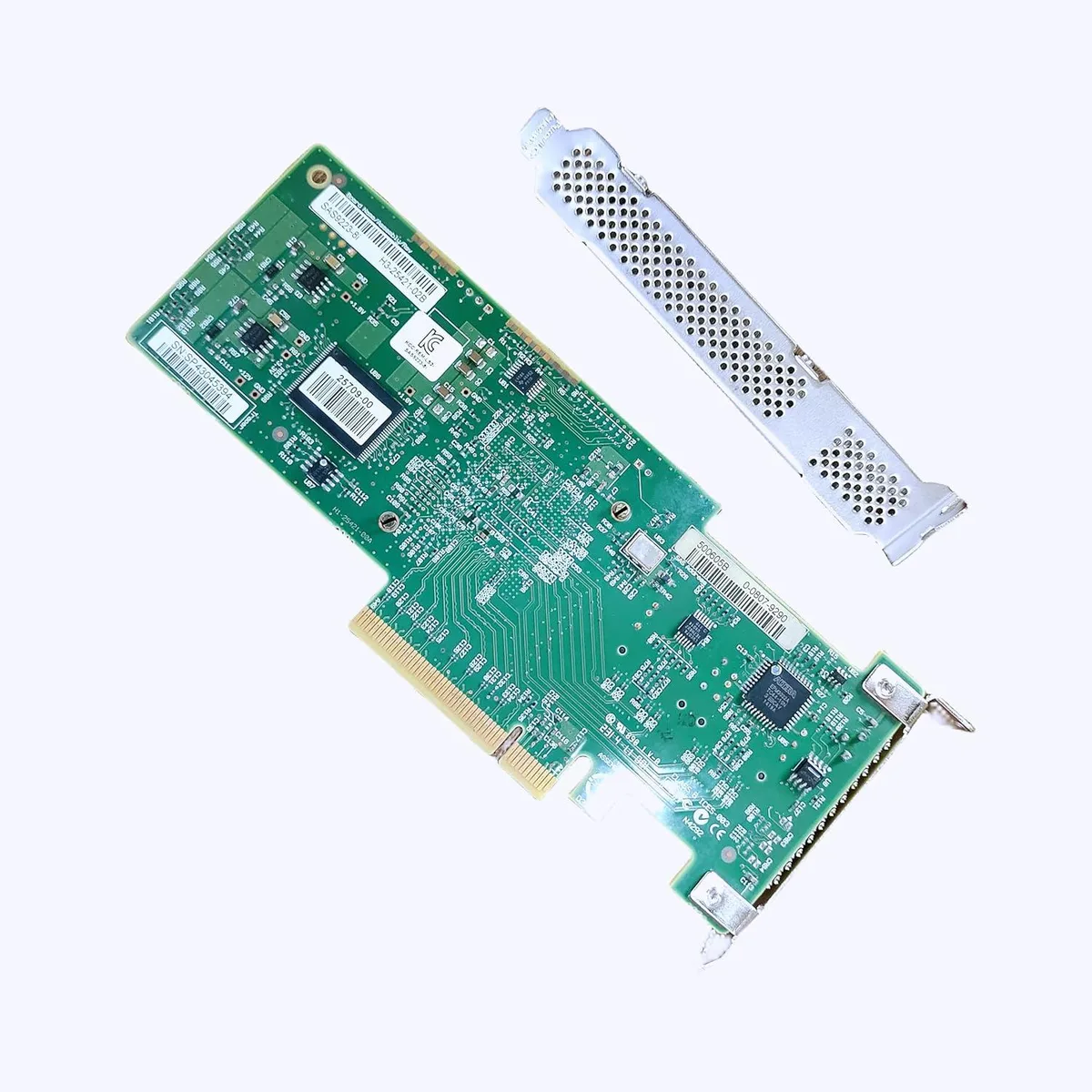

The LSI 9223-8i is an 8-port SAS host bus adapter that runs IT Mode firmware version 20.00.07.00. It connects to the host through a PCIe 3.0 x8 slot and uses the LSI SAS2008 controller chipset. Each port supports 6 Gbps transfer rates for SAS and SATA devices. The card ships with both a high-profile and a low-profile bracket.

Suited for ZFS, FreeNAS or unRAID storage builds

This adapter suits builders who need direct disk access without hardware RAID abstraction. It works with eight SAS or SATA drives and fits in a standard PCIe 3.0 x8 slot. It is not for systems that only offer PCIe x1 or x4 slots, nor for users who require onboard RAID processing.

PCIe 3.0 x8 slot requirement

The card requires a physical PCIe 3.0 x8 connection, so the motherboard must provide that slot width. If the platform only has smaller PCIe slots, the adapter will not fit.

Highlights

  • 8 internal ports connect multiple SAS or SATA drives
  • PCIe 3.0 x8 interface provides 6Gbps bandwidth per port
  • LSI SAS2008 controller chipset handles RAID-free HBA workloads
  • Pre-flashed IT Mode P20 firmware (20.00.07.00) enables direct drive access
  • Includes full-height and low-profile brackets for flexible mounting

Specifications

No published specifications for this item yet.

Questions about this item

Does the LSI 9223-8i need a PCIe 3.0 x8 slot on the motherboard?

Yes, the controller requires a PCIe 3.0 x8 slot to operate at its 6Gbps SAS transmission speed.

Can the 9223-8i connect to SATA drives as well as SAS drives?

Yes, the SAS2008 chipset supports both SAS and SATA drives on its eight ports.

How can I confirm the card is running in IT mode after installation?

The firmware version 20.00.07.00 displayed during POST or in the OS confirms IT mode P20 operation.
