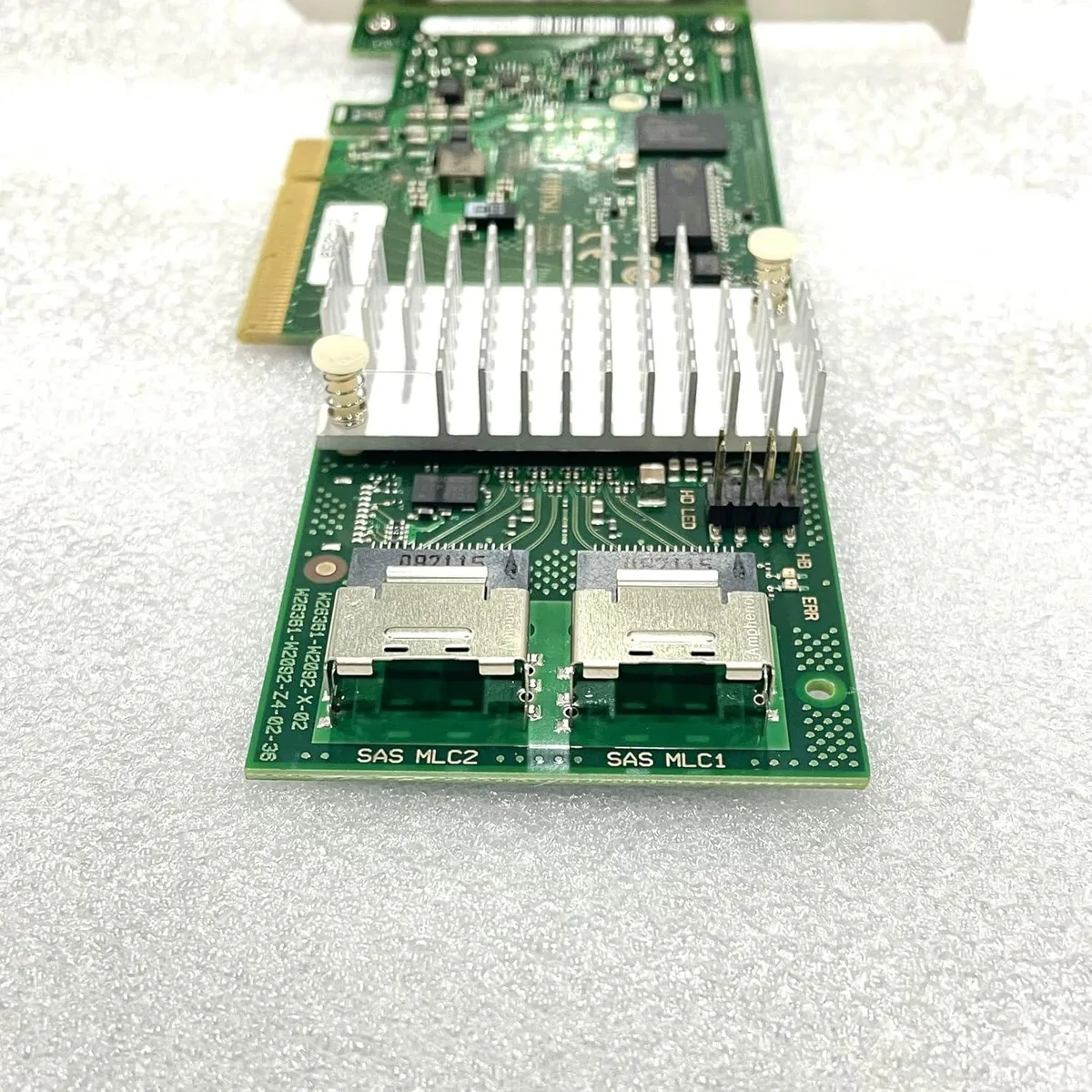

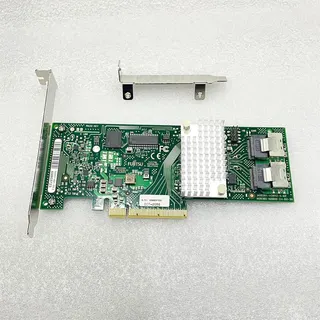

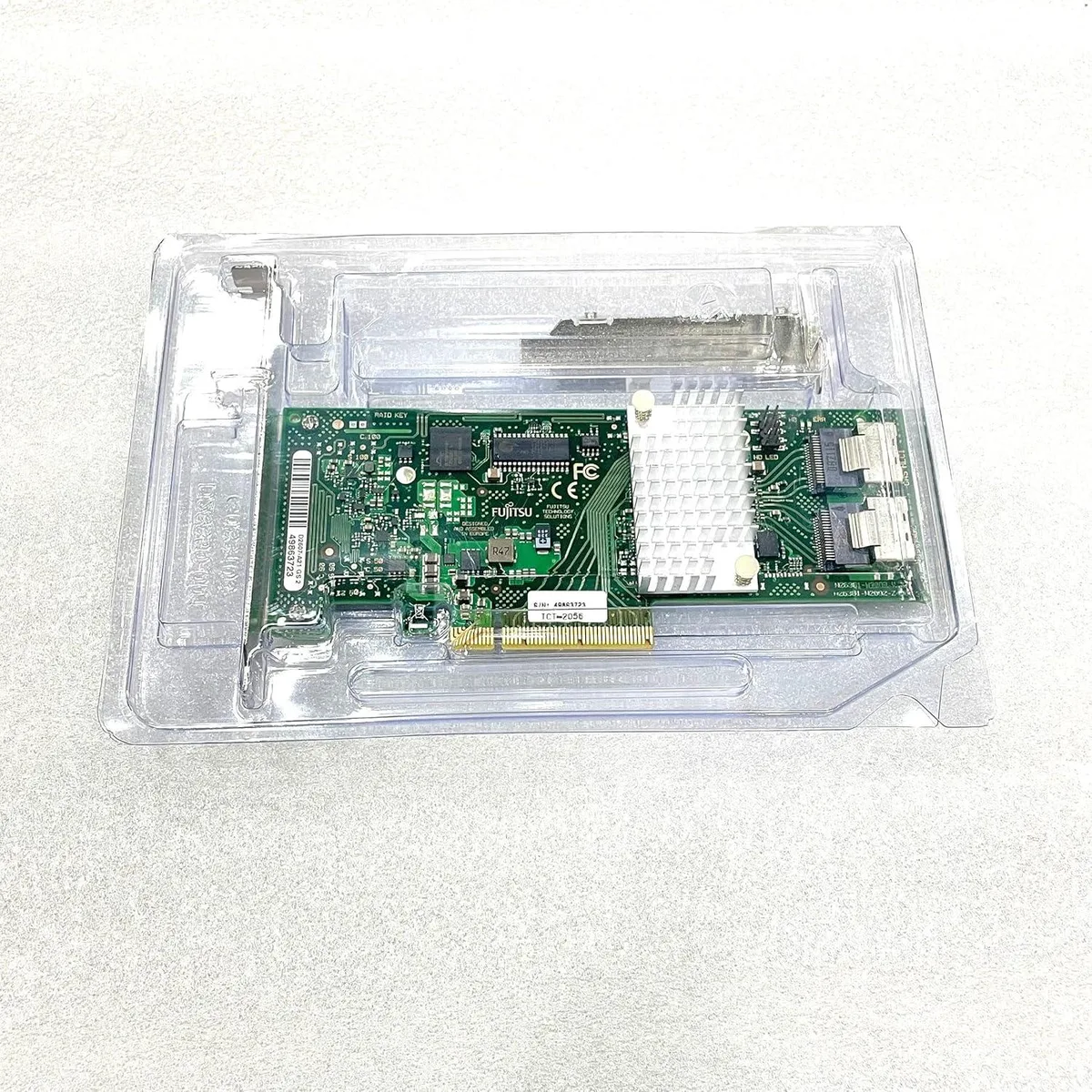

Green PCB HBA card with two internal SAS ports and low-profile bracket

LSI

LSI 9211-8i SAS 2008 6Gbps SATA SAS network card

SKU CH-TDDQ-6VWVG

Eight-port SAS 2008 controller delivers 6 Gbps SATA and SAS connectivity in IT mode for ZFS, FreeNAS or unRAID arrays

  • LSI SAS 2008 controller handles 6Gbps SATA SAS drives
  • IT mode firmware P20 enables direct drive access for ZFS
  • Low-profile and full-height brackets fit various chassis
  • Eight internal ports expand storage connectivity via single PCIe slot

LSI 9211-8i SAS HBA for storage arrays

The LSI 9211-8i is a SAS 2008 host bus adapter that provides eight 6Gbps SATA and SAS ports for connecting multiple drives to a server or workstation. It runs P20 IT mode firmware, making it a direct-attached controller suited for ZFS, FreeNAS and unRAID software RAID configurations.

PCIe installation with bracket options

The card installs in a standard PCI Express slot and ships with both high-profile and low-profile brackets to fit different chassis heights. The IT mode firmware presents drives directly to the operating system without hardware RAID abstraction, which avoids driver conflicts common with RAID-mode firmware but requires the OS to manage the storage pool.

Highlights

  • LSI SAS 2008 controller handles 6Gbps SATA SAS drives
  • IT mode firmware P20 enables direct drive access for ZFS
  • Low-profile and full-height brackets fit various chassis
  • Eight internal ports expand storage connectivity via single PCIe slot

Specifications

No published specifications for this item yet.

Questions about this item

How can I confirm the LSI 9211-8i is operating in IT mode after installation?

The card ships with P20 IT mode firmware; the BIOS will display "IT" during POST and management tools such as sas2flash will report the firmware type as IT.

What accessories are included with the LSI 9211-8i and what must I source separately?

The box contains the controller and both high and low-profile brackets; you will need to provide SATA or SAS cables and a PCI Express slot.
