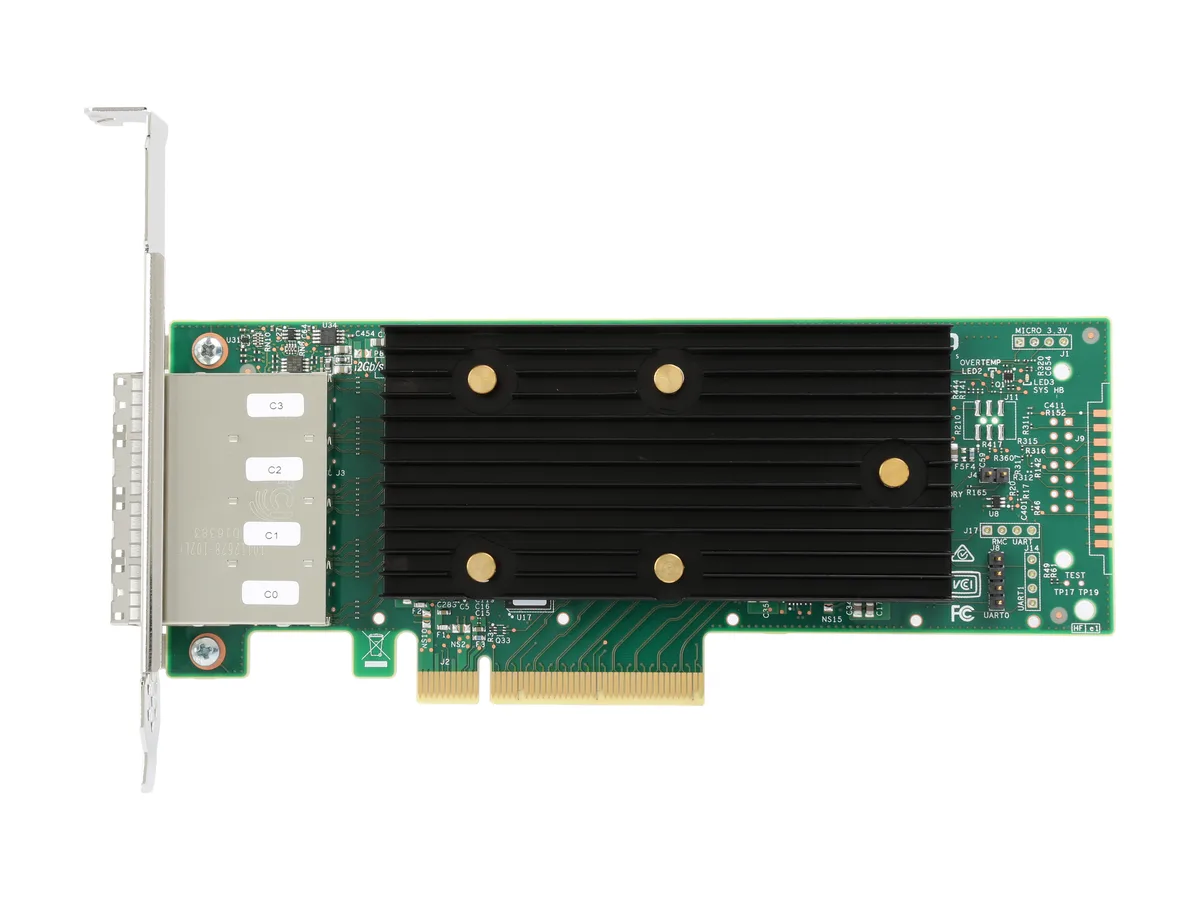

Green circuit board with four silver mini-SAS HD ports and gold PCIe edge connector

LSI

LSI 05-50013-00 SAS 9400-16e RAID controller 12Gb/s x8 PCIe 3.1

SKU CH-X889-JQAV7 MPN 05-50013-00

Connects up to 1024 SAS or SATA drives through four SFF-8644 ports at 12Gb/s over an x8 PCIe 3.1 slot

  • Part05-50013-00
  • TypeSAS
  • External Connectors4 x SFF-8644 mini-SAS HD
  • Interfacex8 lane PCI Express 3.1
  • Transfer RateUp to 12Gb/s
  • Operating Systems SupportedMicrosoft Windows, Linux, VMware.
  • Up to 12Gb/s transfer rate for fast storage throughput
  • Four SFF-8644 mini-SAS HD external ports connect multiple enclosures
  • Supports up to 1024 SAS and SATA devices for large arrays
  • x8 PCI Express 3.1 interface fits standard server slots
  • Typical 11.18W power draw keeps thermal load low

12 Gb/s SAS Tri-Mode Adapter

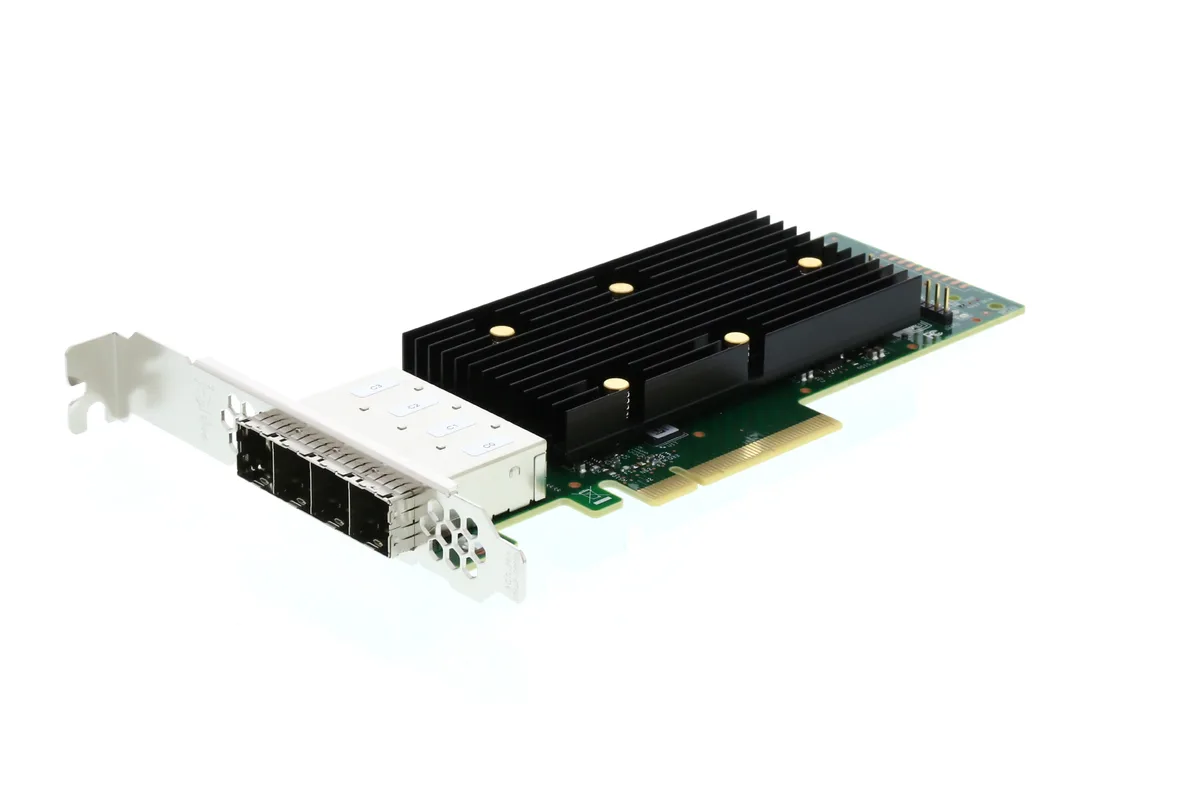

The LSI SAS 9400-16e is a 12 Gb/s SAS tri-mode storage adapter with four SFF-8644 mini-SAS HD external connectors. It installs in an x8 lane PCI Express 3.1 slot and supports up to 1024 SAS or SATA devices. The card is suited for servers and workstations that need external JBOD or direct-attached storage expansion.

External JBOD expansion

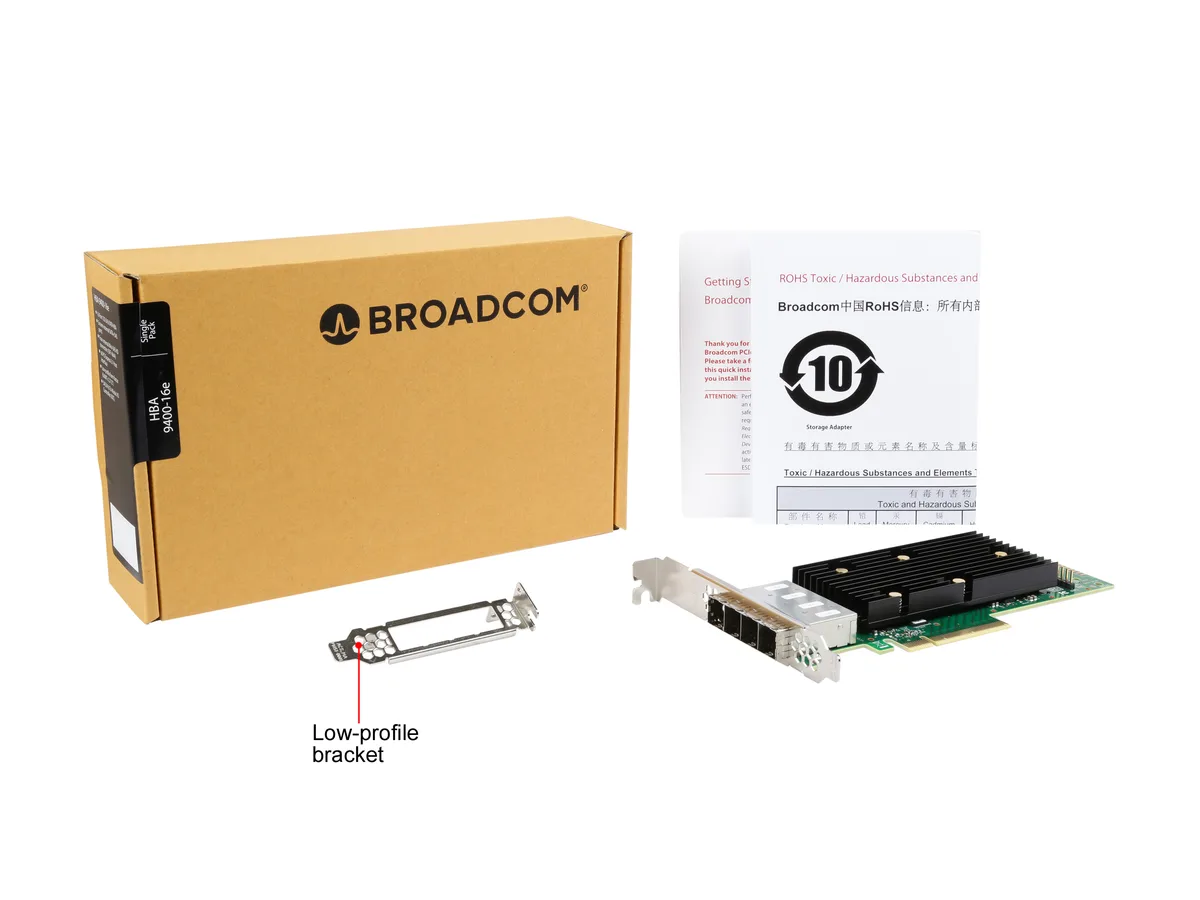

This adapter targets administrators connecting external drive enclosures via mini-SAS HD cables. It does not serve systems that lack a full-height PCIe 3.1 x8 slot or that require internal port connectivity. Buyers needing internal drive attachments or a different bracket height should consider other options.

Four SFF-8644 connectors

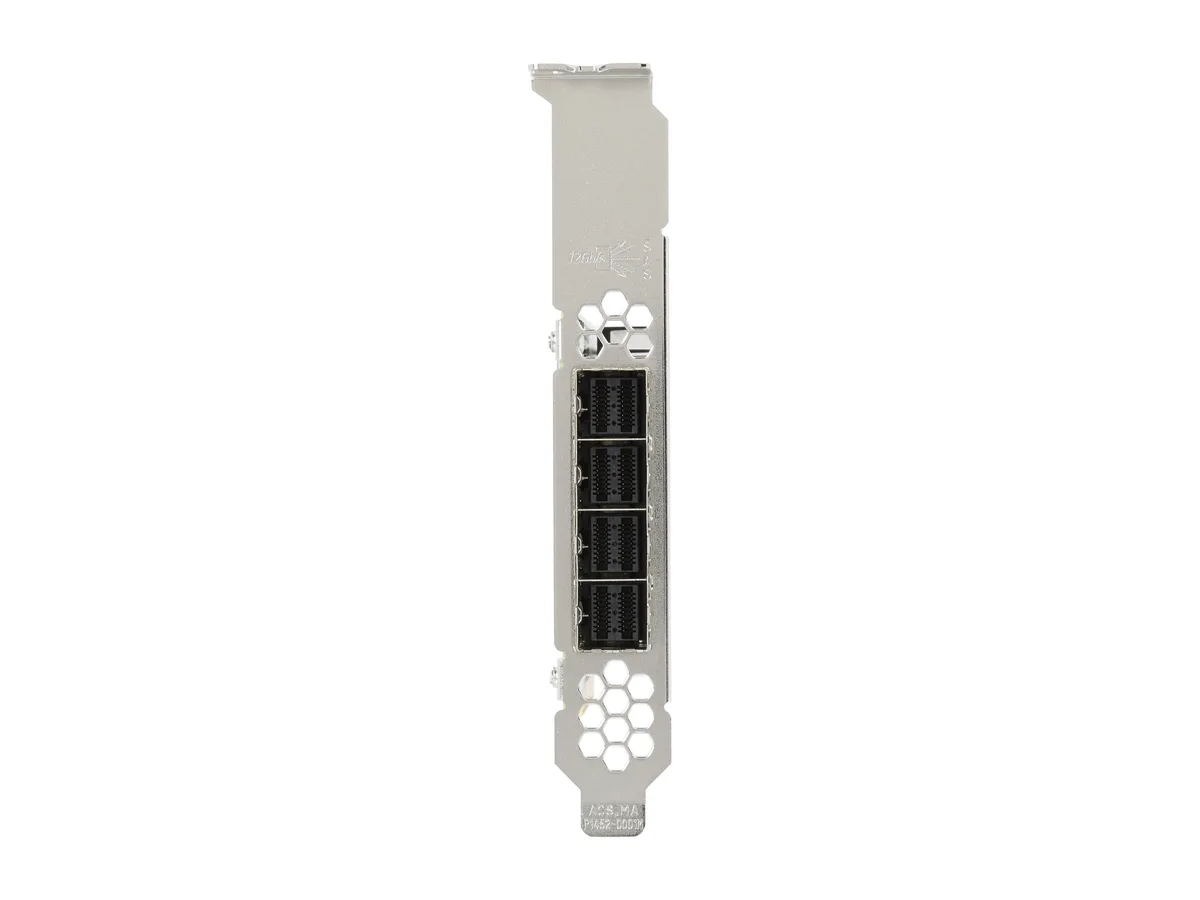

The deciding specification is the four external SFF-8644 mini-SAS HD ports, each operating at up to 12 Gb/s. These ports determine which enclosures and cables can be attached directly to the controller. Verify that your external storage chassis uses matching mini-SAS HD interfaces before purchasing.

Highlights

  • Up to 12Gb/s transfer rate for fast storage throughput
  • Four SFF-8644 mini-SAS HD external ports connect multiple enclosures
  • Supports up to 1024 SAS and SATA devices for large arrays
  • x8 PCI Express 3.1 interface fits standard server slots
  • Typical 11.18W power draw keeps thermal load low

Specifications

BrandLSI
ModelSAS 9400-16e
Part05-50013-00
TypeSAS
External Connectors4 x SFF-8644 mini-SAS HD
Interfacex8 lane PCI Express 3.1
Transfer RateUp to 12Gb/s
Operating Systems SupportedMicrosoft Windows, Linux, VMware.
Dimensions6.60" x 2.72"
FeaturesDevices Supported: SAS / SATA: 1024
Operating Temperature: 10 degree to 55 degree Celsius
Operating Voltage (V): +12V +/- 8%, 3.3V +/- 9%
PCI Power: Typical: 11.18W
Cable Support: Passive Copper, Active copper, Active Optical
I/O Controller: SAS3416
Operating Humidity: 20% to 80% Non-condensing
Shipping weight0.33 kg
Package size231 × 145 × 56 mm

Questions about this item

Does my server need an x8 PCIe 3.1 slot to install the LSI SAS 9400-16e?

Yes, the adapter requires an x8 lane PCI Express 3.1 slot for full bandwidth operation.

Can I connect my existing 6Gb/s SAS drives to the 12Gb/s ports on this controller?

The SAS3416 controller supports SAS and SATA devices at 12Gb/s, 6Gb/s and 3Gb/s speeds simultaneously.

How do I verify the 9400-16e is recognised after installation?

Check the system BIOS or OS device manager for the LSI SAS3416 controller and confirm attached drives appear at the expected link rate.
