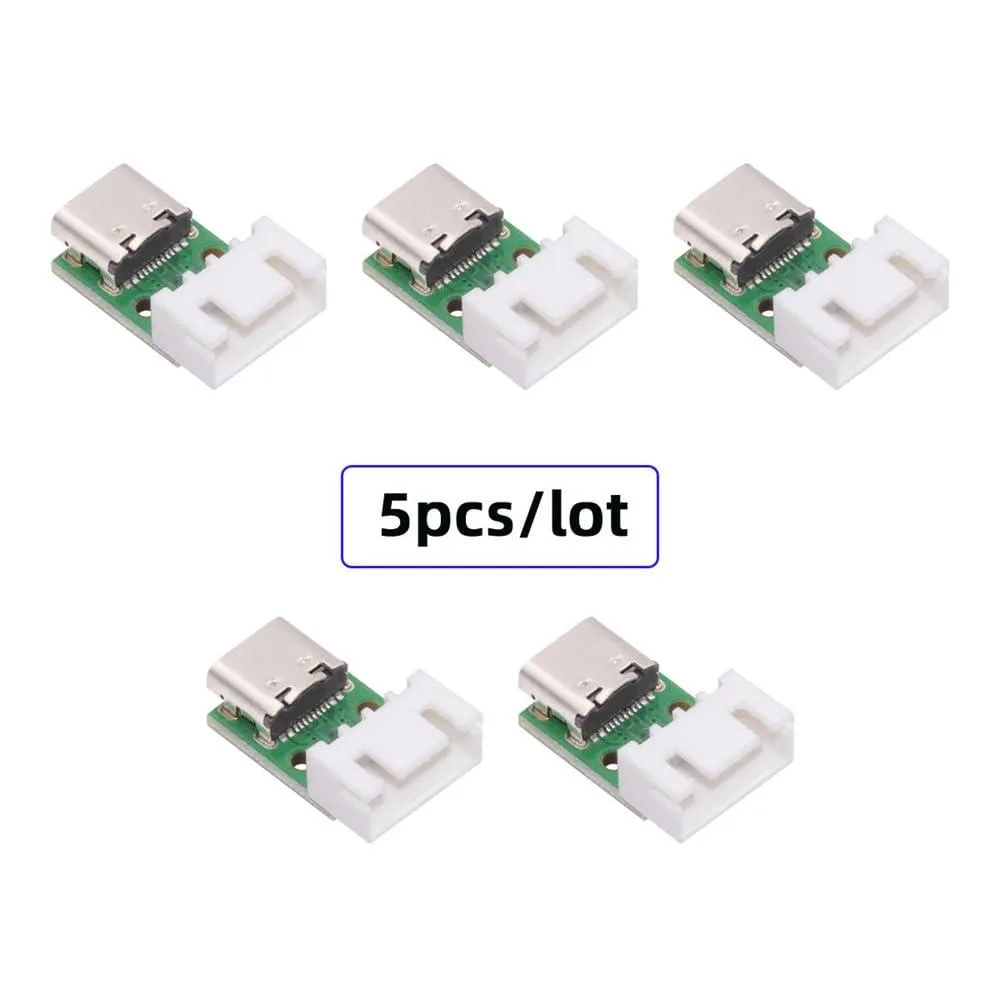

Five USB-C female to 4-pin 2.54 mm wafer adapter boards

LORDWORLD

LORDWORLD USB-C to 4Pin 2.54mm Wafer Adapter 5pcs

SKU CH-HT80-7ATNK

A five-piece adapter set converts USB-C to a 2.54 mm pitch four-pin wafer socket for USB 2.0 data at 480 Mbps and DC 5 V power up to 15 W

  • Easy assembly with 2.54 mm pitch wafer socket
  • Connect mobile devices, laptops and tablets via USB-C for power and data
  • Up to 15 W DC 5 V power delivery through USB 2.0 Type-C
  • Reversible USB-C plug orientation for simple insertion
  • USB 2.0 data transfer at 480 Mbps for fast file moves

USB-C adapter for DIY projects

This five-piece set converts a USB-C female port to a 4-pin 2.54 mm wafer socket for custom electronics work. It suits makers who need a compact Type-C power and data interface on a perfboard or custom PCB. The horizontal orientation keeps the connector profile low inside enclosures.

Solder-ready wafer socket integration

Each adapter presents a standard 2.54 mm pitch header that solders directly to stripboard or a printed circuit board. It replaces bulky breakout boards and frees up layout space for other components. The reversible USB-C receptacle accepts plugs in either orientation without extra circuitry.

USB 2.0 data and 15 W power ceiling

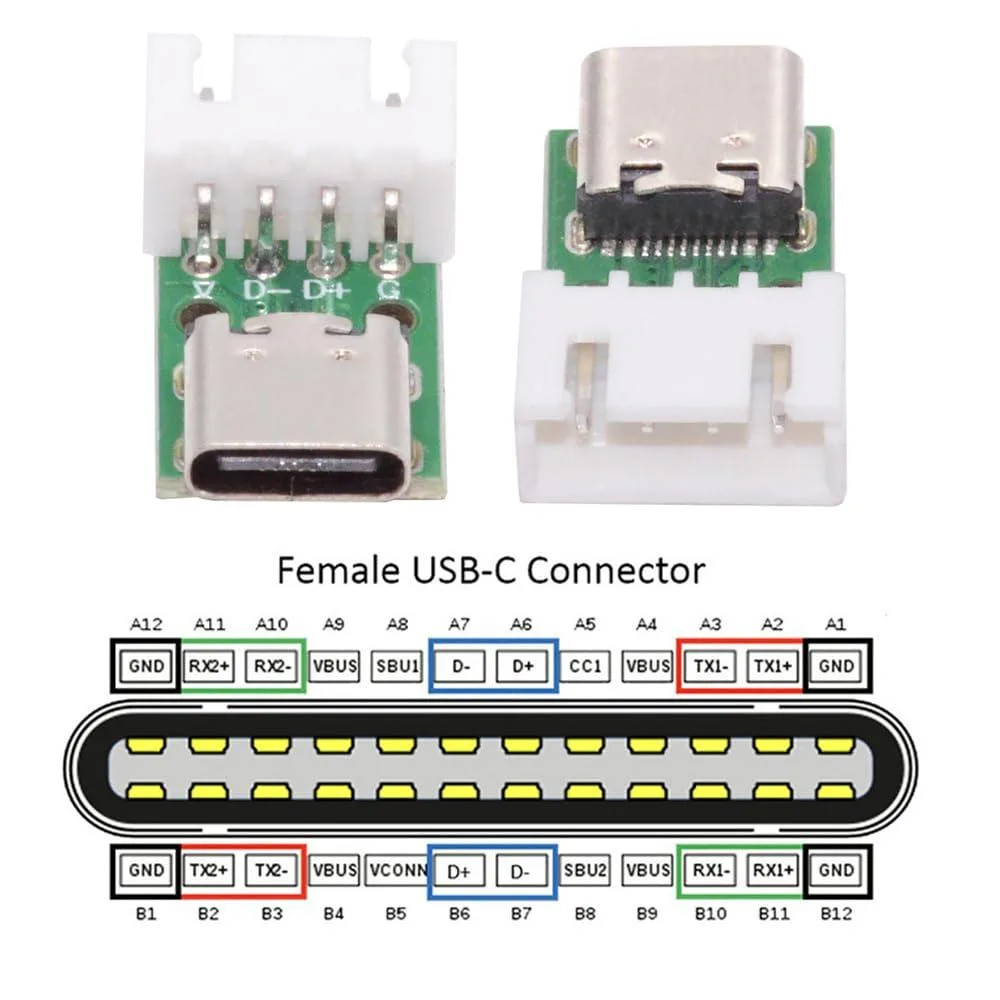

The pinout carries USB 2.0 signals at 480 Mbps and passes DC 5 V up to 15 W for charging or powering attached devices. It does not support USB Power Delivery negotiation or higher voltage profiles. Builds requiring faster data rates or PD contracts cannot use this adapter.

Highlights

  • Easy assembly with 2.54 mm pitch wafer socket
  • Connect mobile devices, laptops and tablets via USB-C for power and data
  • Up to 15 W DC 5 V power delivery through USB 2.0 Type-C
  • Reversible USB-C plug orientation for simple insertion
  • USB 2.0 data transfer at 480 Mbps for fast file moves

Specifications

BrandLORDWORLD

Questions about this item

How much power can the adapter handle before it becomes the bottleneck?

The adapter supports up to 15W at DC 5V, so sustained loads above that will be limited by its rated maximum.

Does the board get hot or draw extra power when left connected all day?

It is a passive connector with no active components, so it adds no measurable heat or idle power draw beyond the cable and device.

What tools or parts are needed to connect the 4-pin wafer side?

You need a 2.54 mm pitch 4-pin wafer plug or bare wires to solder onto the horizontal socket pads.
