LORDWORLD USB-C to 3.5 mm DAC 16/48 100 W PD angled

USB-C DAC with 100 W pass-through

This adapter adds a 3.5 mm audio port and 100 W USB-C power delivery to devices that lack a headphone jack. It suits phone, tablet or laptop users who want wired headphones while charging. The CS201C100 chip handles digital-to-analogue conversion up to 16-bit / 48 kHz PCM. No drivers are required on Windows, macOS or Android.

16-bit / 48 kHz ceiling and single-headset limit

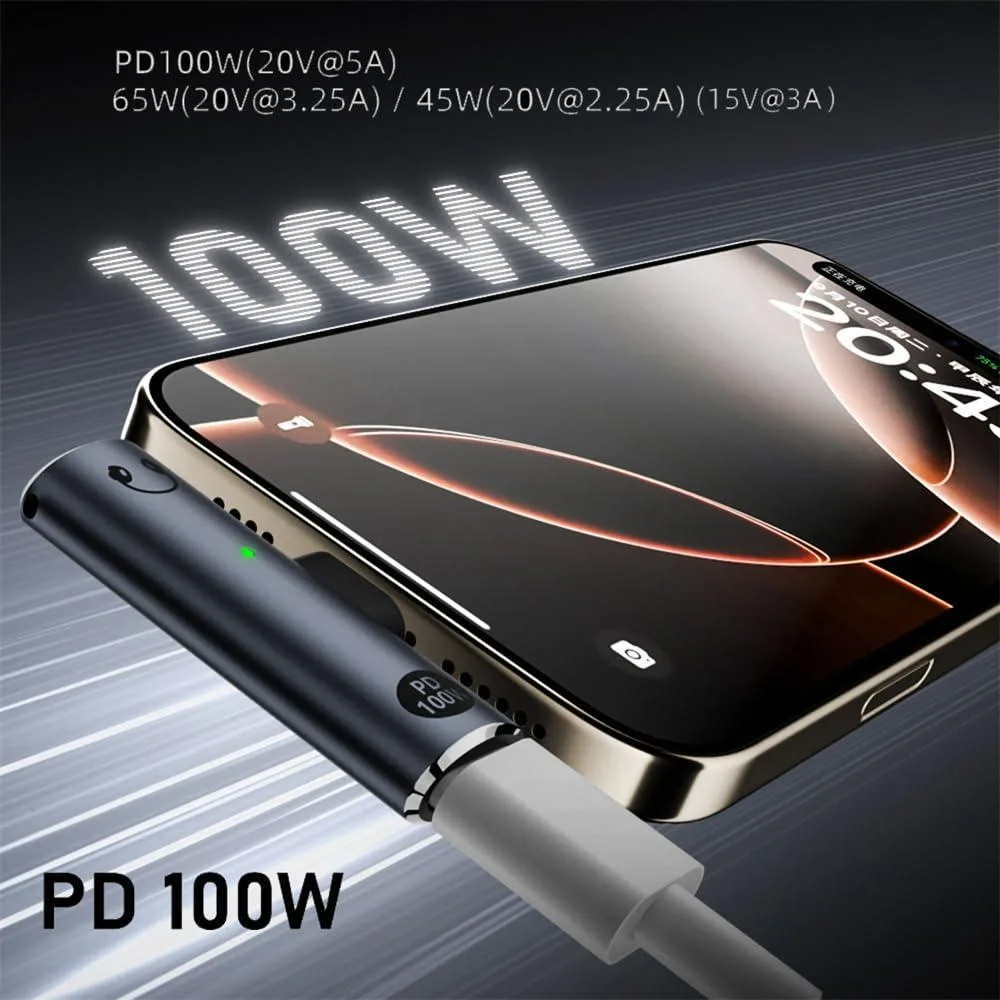

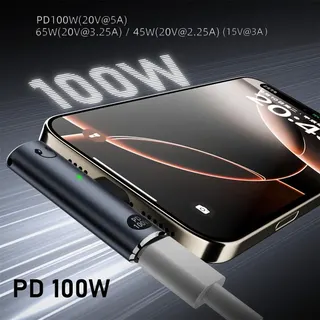

Audio quality tops out at 16-bit / 48 kHz PCM, so high-resolution formats above that rate are down-sampled. The 3.5 mm jack accepts one headset or headphones with inline microphone; it does not split separate mic and headphone plugs. Power delivery negotiates up to 100 W, but the host and cable must also support that level for full speed charging.

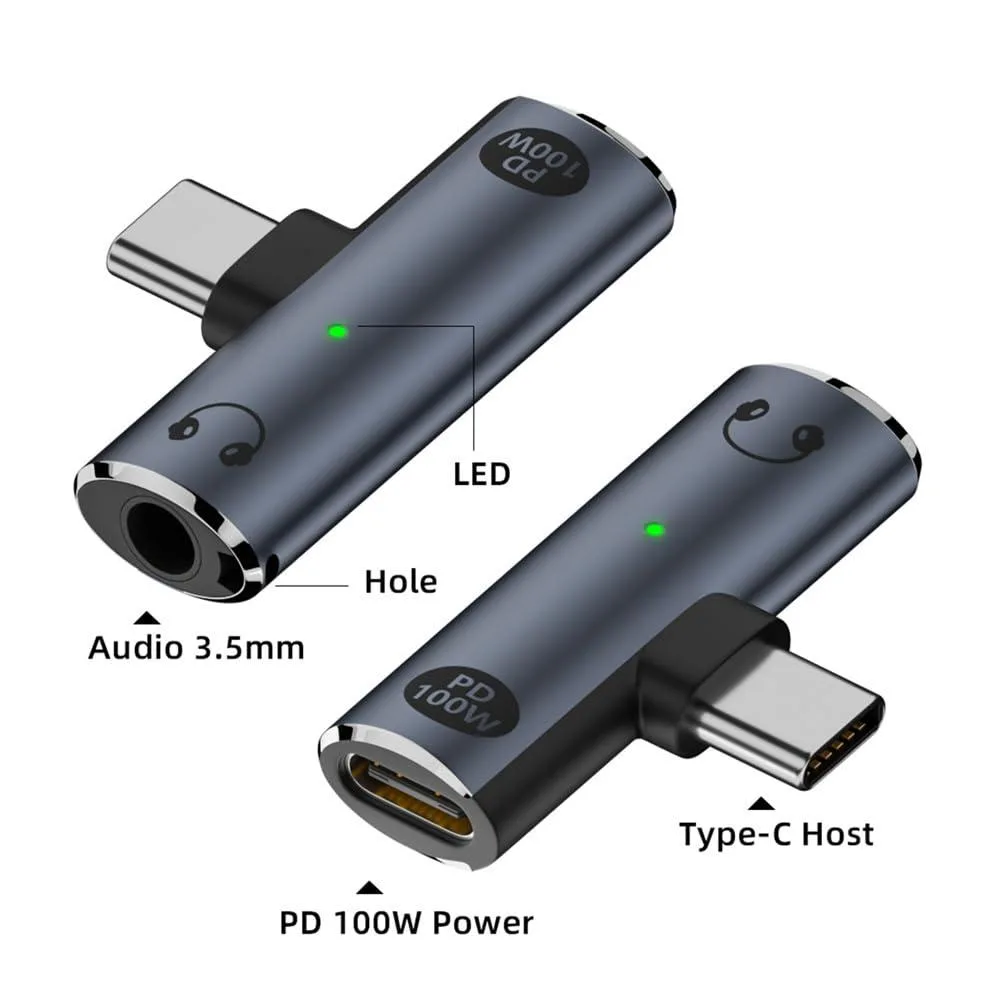

Angled plug for tight ports

The right-angled USB-C connector fits beside other cables or in recessed ports where a straight dongle would not seat. Reversible insertion works either way up. The compact body draws power from the host port itself, so no external supply is needed. Buyers needing simultaneous analogue line-out and separate microphone inputs, or sample rates beyond 48 kHz, should look elsewhere.
