Small green circuit board with USB 3.1 Type-E and 19/20-pin connectors plus a SATA power socket

LORDWORLD

LORDWORLD USB 3.1 Type-E to Dual 19/20Pin & Type-E Adapter

SKU CH-J1MQ-F9SDM

Converts a motherboard Type-E or 19/20-pin header into dual USB 3.0 20-pin and Type-E outputs at 5 Gbps using a GL3510 chipset, with optional SATA power for 5 V 2 A delivery

  • Add two front-panel USB 3.0 ports from a single Type-E or 19/20-pin header
  • GL3510 hub controller delivers full 5 Gbps bandwidth across both outputs
  • Optional SATA power input supplies up to 5 V 2 A for high-draw devices
  • Works with USB 3.1, 3.0, 2.0 and 1.1 devices at native speeds
  • Connects front panels, hubs, card readers and cables via dual 19/20-pin and Type-E sockets

Connection Options

The LORDWORLD adapter converts a motherboard USB 3.1 Type-E header or USB 3.0 19/20-pin socket into dual outputs: one USB 3.0 19/20-pin header and one Type-E header. A GL3510 chipset manages the split and supports the USB 3.1 Gen1 Multiple INs feature to fully utilise the available 5Gbps bandwidth. It is aimed at builders adding front-panel USB ports to a case.

Who It Suits

This suits PC builders whose motherboard provides only a single Type-E or 19/20-pin header but who need to drive two front-panel USB 3.0 devices such as a hub, card reader or cable. It also helps when extra 5V 2A power is drawn from a SATA power connector. Builders without a spare SATA power lead or who require internal USB 2.0-only headers should look elsewhere.

Sustained Operation

Under continuous load the GL3510 maintains the 5Gbps signalling rate defined by the USB 3.1 Gen1 specification while remaining backward compatible with USB 2.0 Hi-Speed at 480Mbps and USB 1.1 Low-Speed at 1.5Mbps. The optional SATA power feed supplies up to 5V 2A so connected devices keep stable voltage during prolonged transfers.

Highlights

  • Add two front-panel USB 3.0 ports from a single Type-E or 19/20-pin header
  • GL3510 hub controller delivers full 5 Gbps bandwidth across both outputs
  • Optional SATA power input supplies up to 5 V 2 A for high-draw devices
  • Works with USB 3.1, 3.0, 2.0 and 1.1 devices at native speeds
  • Connects front panels, hubs, card readers and cables via dual 19/20-pin and Type-E sockets

Specifications

BrandLORDWORLD

Questions about this item

Does my motherboard need a USB 3.1 Type-E header or a 19/20-pin USB 3.0 header to use this adapter?

The adapter plugs into a USB 3.1 Type-E front header, a 19/20-pin USB 3.0 header or a Micro-USB 3.0 port on the motherboard.

Will a legacy USB 2.0 front-panel device still work through the dual Type-E and 20-pin outputs?

Yes, the GL3510 chipset is compliant with USB 2.0 Hi-Speed at 480 Mbps and USB 1.1 Low-Speed at 1.5 Mbps, so older devices will operate normally.

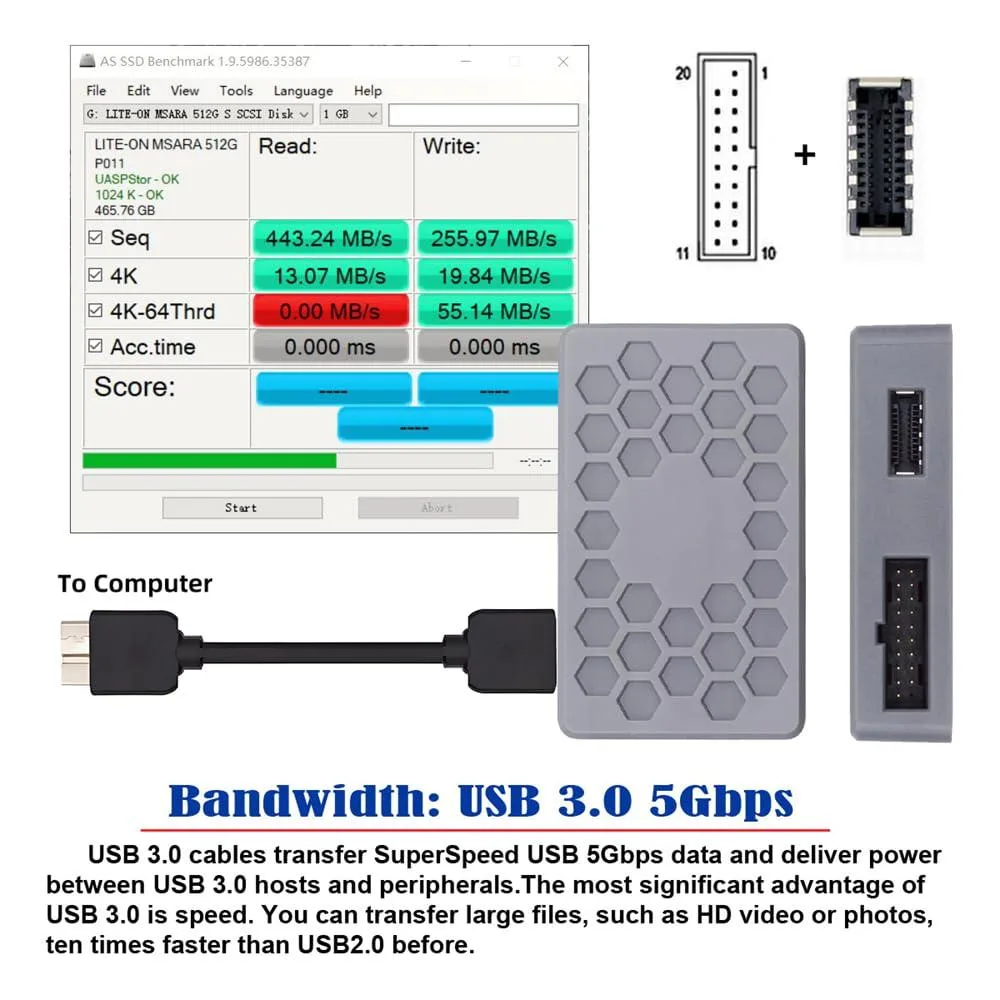

How can I confirm the adapter is delivering the full 5 Gbps data rate after installation?

Connect a USB 3.0 storage device and verify the transfer speed reaches the 5 Gbps rating; the GL3510 chipset uses Multiple INs to fully utilise the USB 3.1 Gen1 bandwidth.
