USB-C male to panel-mount female cable with thumbscrew lock, black finish, one metre

LORDWORLD

LORDWORLD USB 3.1 Type-C Panel Mount Locking Cable 10Gbps 65W 1.0m

SKU CH-223D-WVZ99

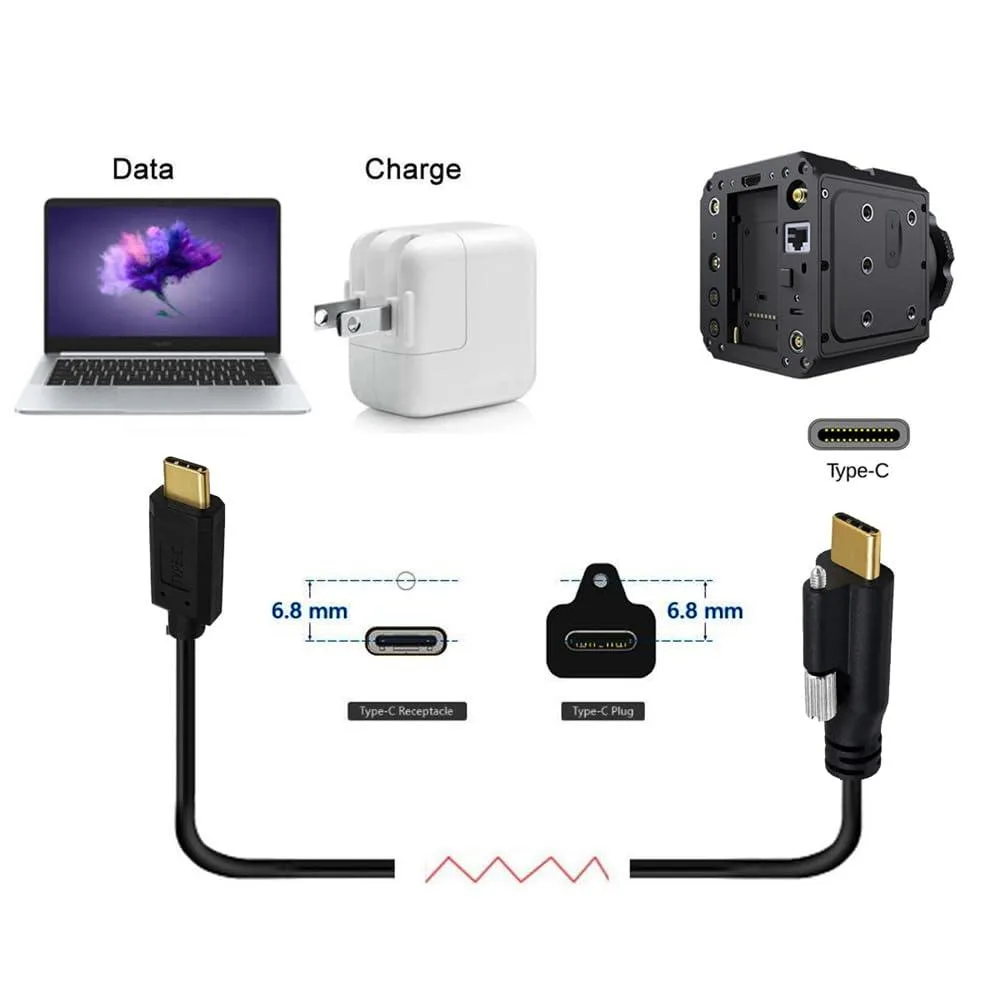

Panel-mount USB-C cable with locking screw delivers 10 Gbps data, 65 W power and 4K 60 Hz video over 1.0 m

  • Secure panel-mount connection with M2 screw locking
  • 10 Gbps data transfer for fast file movement
  • 65 W power delivery charges devices quickly
  • 0 m length fits typical cabinet layouts
  • 4K 60 Hz video output to USB-C monitors

Panel-mount USB-C locking cable

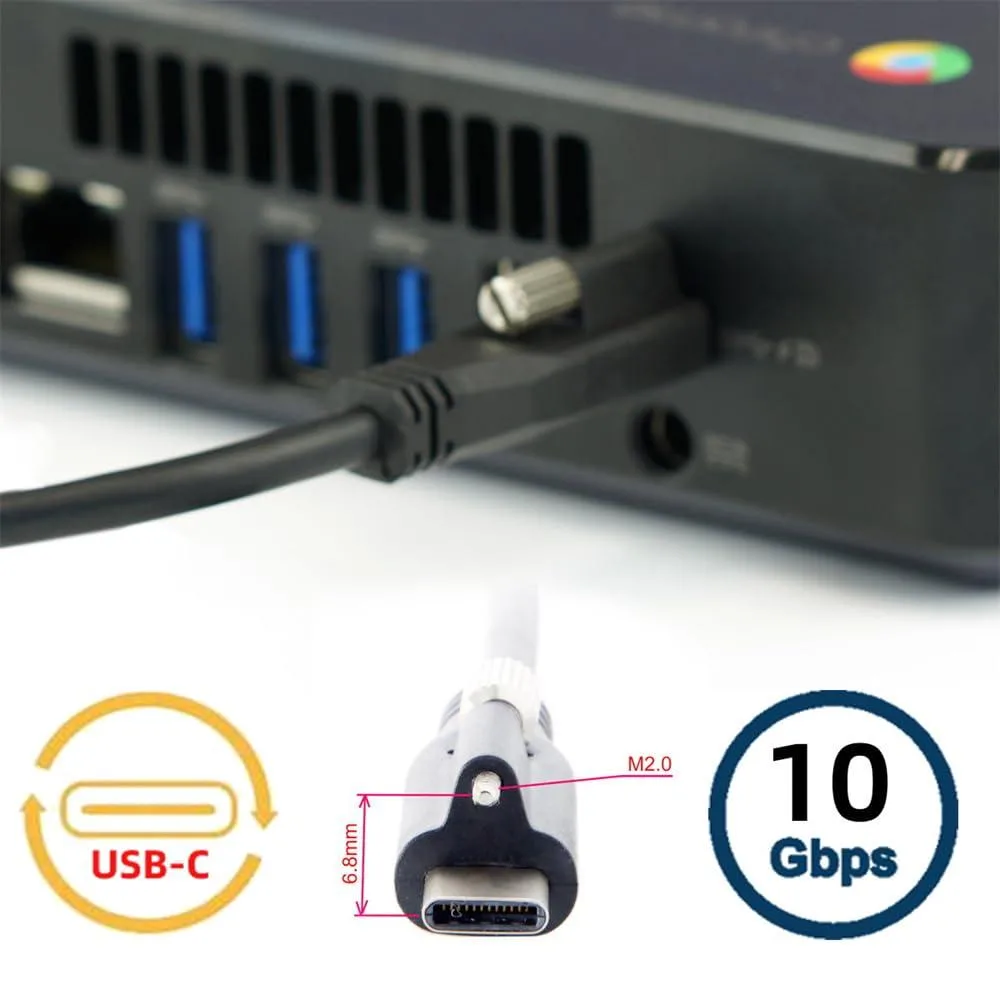

This 1.0m USB 3.1 Type-C cable adds a secure screw-locking panel-mount connector to a cabinet or enclosure. It carries 10Gbps data and up to 65W (20V 3.25A) Power Delivery for connected devices. The reversible USB-C male plug features an M2 locking screw for vibration-resistant mating. It is suited to industrial, machine-vision or embedded installations that need a fixed, rugged USB-C feed-through.

Sustained 10Gbps data and 65W power delivery

The cable maintains 10Gbps signalling and 65W PD continuously through the panel-mount interface without active electronics. Locking screws prevent accidental disconnects that would interrupt long transfers or camera streams. Compliance with the USB-C Vision Standard confirms reliable operation with industrial machine-vision cameras under constant load. No throttle or duty-cycle limits are specified by the manufacturer.

Check DP Alt Mode and panel cut-out before ordering

Video output up to 4K at 60Hz requires the host and monitor USB-C ports to support DisplayPort Alternate Mode; the cable itself does not convert signals. Verify that your enclosure has the correct cut-out for the panel-mount flange and that the M2 screw thread matches your mounting hardware. The 1.0m length fixes the reach between the panel and the device.

Highlights

  • Secure panel-mount connection with M2 screw locking
  • 10 Gbps data transfer for fast file movement
  • 65 W power delivery charges devices quickly
  • 0 m length fits typical cabinet layouts
  • 4K 60 Hz video output to USB-C monitors

Specifications

BrandLORDWORLD

Questions about this item

Does the 1.0 m locking cable generate noticeable heat when delivering 65 W continuously?

The cable is rated for 65 W (20 V 3.25 A) power delivery; under normal use it stays within USB-IF temperature limits and does not become hot to the touch.

What must my device already provide for the panel-mount connector to work?

Your host needs a USB-C port that supports USB 3.1 10 Gbps data and DisplayPort Alternate Mode if you want 4K 60 Hz video output.

Will the M2 screw-lock connector mate with older USB-C ports that lack threads?

The male plug has an M2 locking screw but remains a standard reversible USB-C connector, so it fits any USB-C receptacle; the screw simply engages when a threaded panel mount is present.
