Five black USB-C male plugs with PCB boards and housing covers

LORDWORLD

LORDWORLD USB 3.1 Type C 24Pin Male Plug 5 Pack

SKU CH-J1CS-ZAF4W

Five USB 3.1 Type-C male plugs with 24 pins, 56 kΩ resistor, 3.0 mm strain relief and PCB for DIY cable repair

  • Five connectors in one pack for multiple repairs
  • Reversible USB-C plug inserts either way up

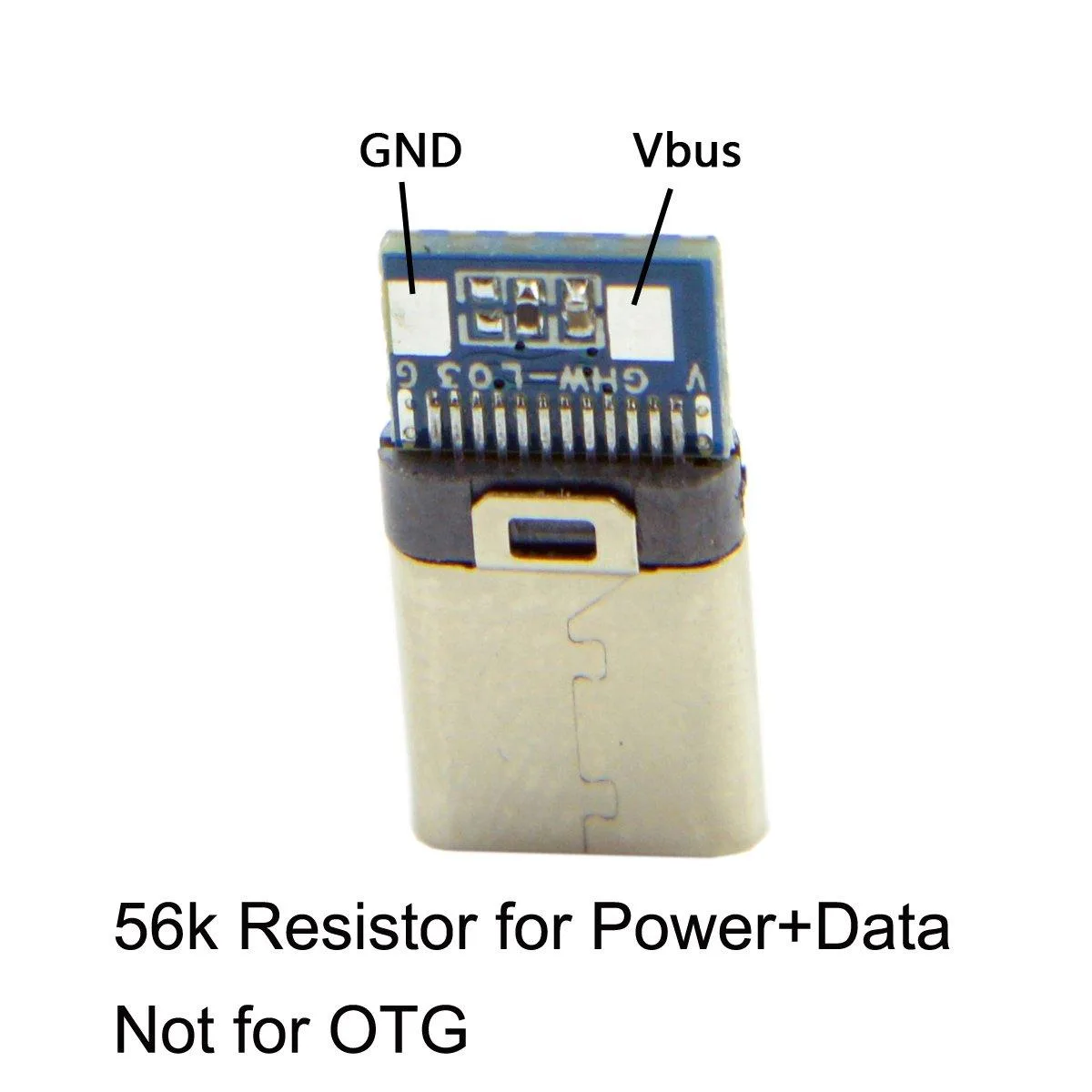

  • 56 kΩ resistor enables power and data negotiation
  • Integrated PCB board lets you solder cables directly
  • 0 mm strain relief and housing cover protect joints

5-pack USB-C DIY solder connectors

This pack contains five USB 3.1 Type C male plugs designed for cable repair or custom builds. Each connector includes a 24-pin layout with a 56k resistor for power and data negotiation. The PCB board is pre-attached so you can solder wires directly. A 3.0 mm strain relief and black housing cover are supplied with every unit.

Reversible insertion and power-handling

The plug inserts either way into a USB-C female port thanks to its reversible design. The onboard 56k resistor enables standard Type-C power and data communication. OTG functionality is not supported, so host-to-host or peripheral-to-peripheral links will not work. Normal use stays within the USB 3.1 specification for current and voltage.

Pre-mounted PCB and strain relief

The factory-soldered PCB removes the need for a separate breakout board during assembly. Wires can be soldered to the exposed pads without additional hardware. The included 3.0 mm strain relief and snap-on housing protect the solder joints from cable flex. No software, drivers or extra components are bundled.

Highlights

  • Five connectors in one pack for multiple repairs
  • Reversible USB-C plug inserts either way up
  • 56 kΩ resistor enables power and data negotiation
  • Integrated PCB board lets you solder cables directly
  • 0 mm strain relief and housing cover protect joints

Specifications

BrandLORDWORLD

Questions about this item

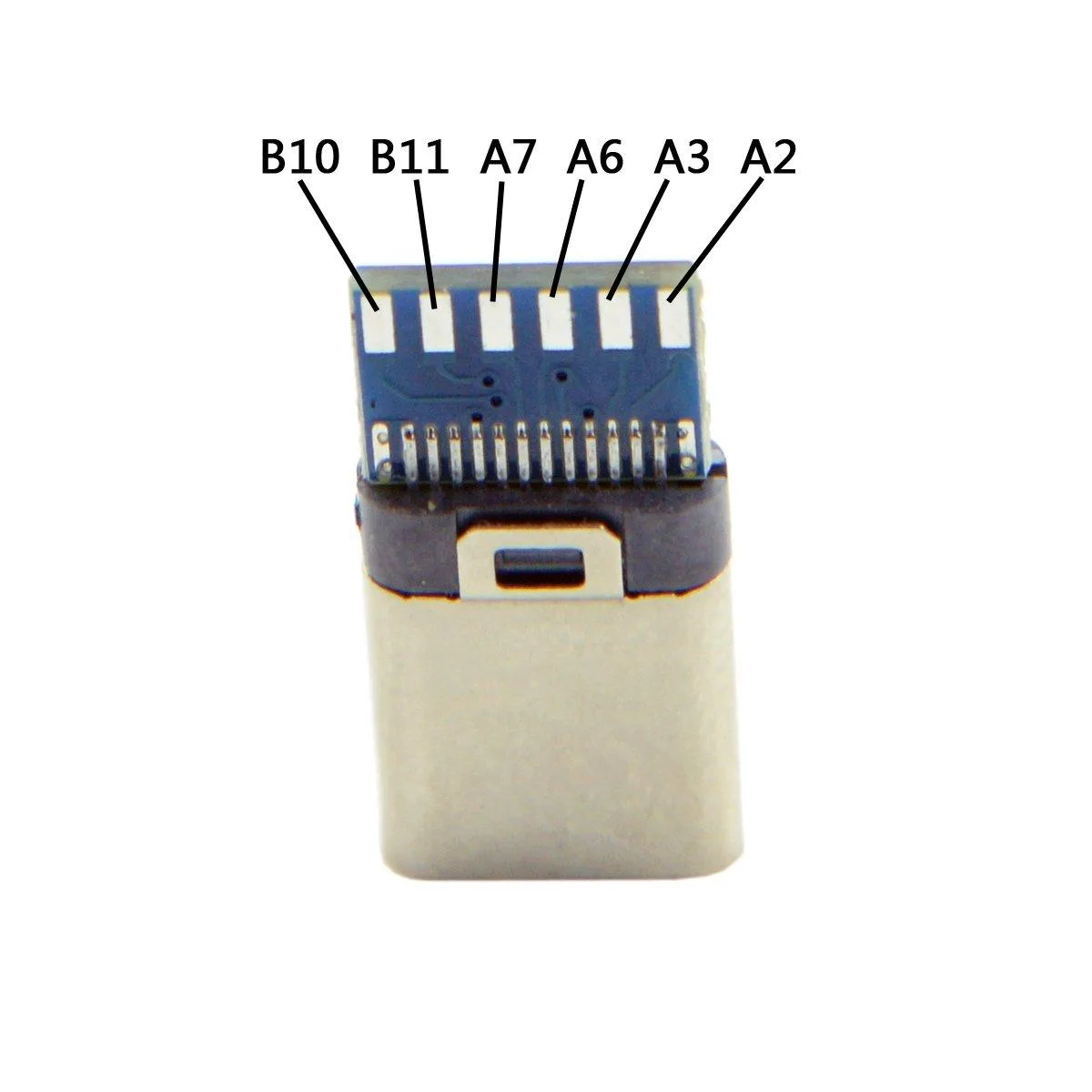

How do I solder wires to the PCB board on this USB 3.1 Type C male plug?

Strip each wire, tin the exposed copper, then solder to the labelled pads on the attached PCB; the 3.0 mm strain relief and housing cover slide on afterwards to secure the cable.

Will the 56 kΩ resistor need replacement after repeated insertions?

The 56 kΩ resistor is surface-mounted on the PCB and rated for the connector's full mating cycles; it does not wear out separately and requires no maintenance.

What is the first limitation I will hit when running high-current charging through these plugs continuously?

The 56 kΩ resistor fixes the Type-C current advertisement at the default USB level, so sustained loads above that negotiation ceiling will be limited by the host port rather than the connector itself.
