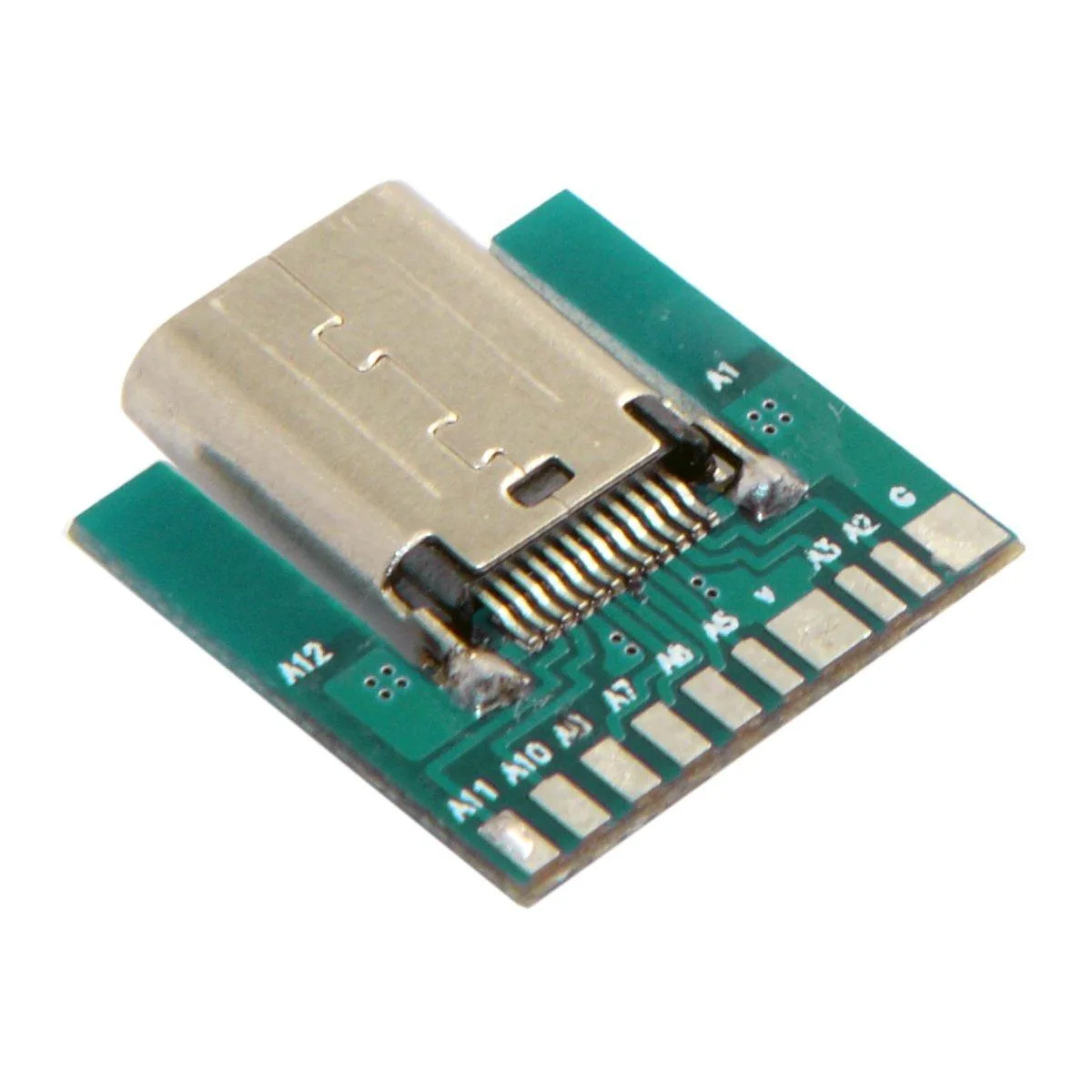

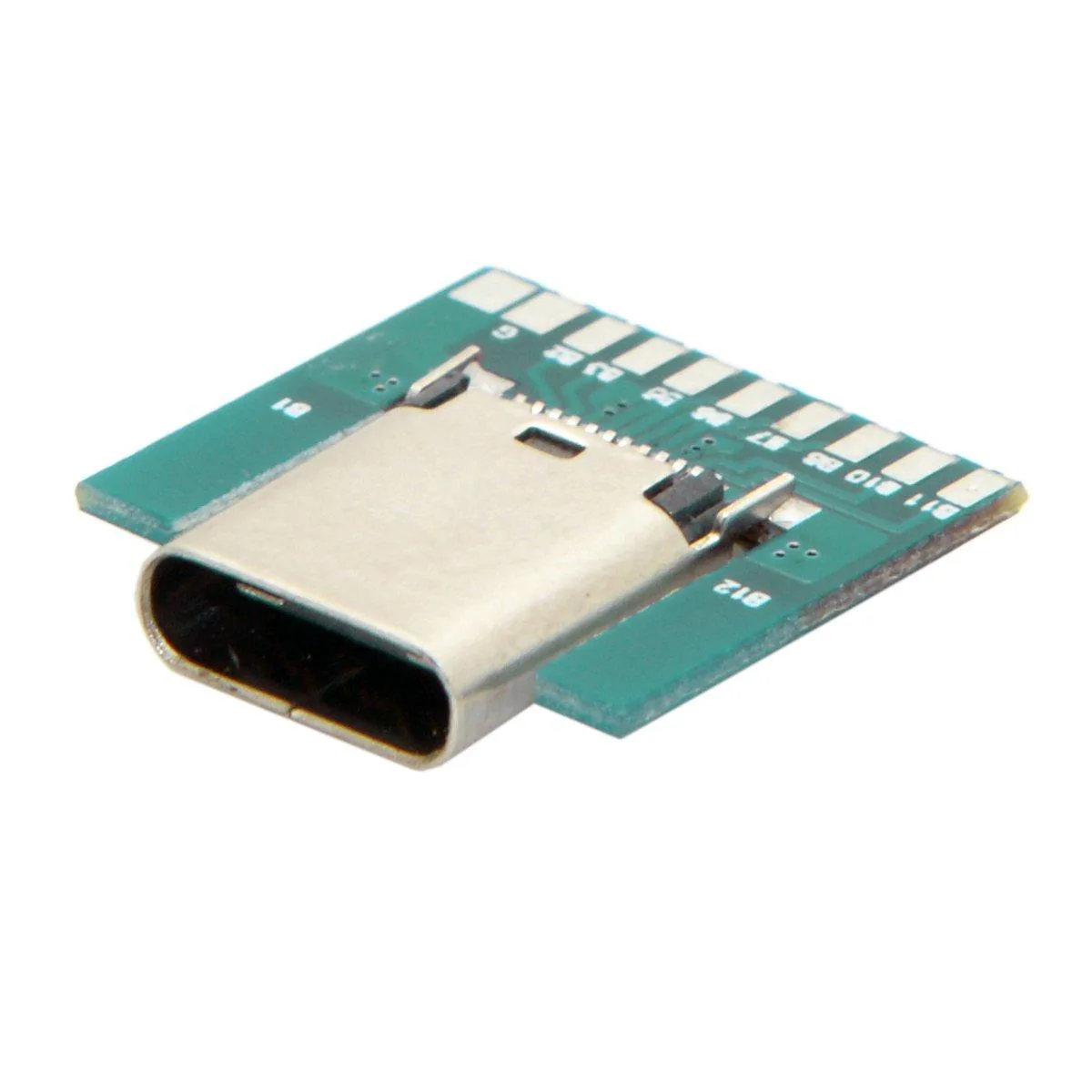

Small green circuit board with a silver 24-pin USB 3.1 Type-C female socket mounted on top

LORDWORLD

LORDWORLD USB 3.1 Type-C 24pin Female Socket SMT with PC Board

SKU CH-2WEF-E8NC6

A 24-pin USB 3.1 Type-C female socket on a PCB for DIY soldering, supporting 10 Gbps data and up to 65 W power delivery at 20 V and 3.25 A

  • USB 3.1 pinout delivers 10 Gbps data speed
  • 24-pin female socket enables full Type-C connectivity
  • SMT mount with pre-attached PC board simplifies board integration
  • DIY-friendly design lets you solder cables directly
  • 65 W maximum power at 20 V and 3.25 A supports fast charging

USB 3.1 Type-C 24-pin female socket

This component is a USB 3.1 Type-C female socket with a 24-pin layout mounted on a printed circuit board. It is intended for makers and engineers who need to add a USB-C receptacle to a custom design or repair an existing device. The surface-mount format allows direct placement on a PCB during assembly.

Thermals, noise and power draw

The connector itself generates no audible noise and has no active cooling requirements. It is rated to handle up to 65 W of power delivery at 20 V and 3.25 A, so thermal load depends on the attached cable and host controller rather than the socket. Data transfers at 10 Gbps add minimal passive heating under normal use.

Build integration and freedoms

The board-mounted design frees the builder from sourcing a separate breakout PCB for the receptacle. You can solder your own cable to the exposed pads, allowing custom cable lengths and routing inside an enclosure. The part requires a compatible USB 3.1 host or controller to achieve the stated speed and power levels.

Highlights

  • USB 3.1 pinout delivers 10 Gbps data speed
  • 24-pin female socket enables full Type-C connectivity
  • SMT mount with pre-attached PC board simplifies board integration
  • DIY-friendly design lets you solder cables directly
  • 65 W maximum power at 20 V and 3.25 A supports fast charging

Specifications

BrandLORDWORLD

Questions about this item

How do I solder wires to the 24-pin USB 3.1 Type-C female socket on the PCB?

Tin each wire, align it with the corresponding pad on the 24-pin footprint, then solder using a fine-tip iron; the step most often missed is verifying every pin for bridges before powering the 10 Gbps data lines.

What maintenance or replacement will the USB 3.1 Type-C female socket need over time?

Inspect the 24-pin SMT pads and PCB traces for cracked solder or lifted copper after repeated cable insertions; replace the whole board if the 10 Gbps signal integrity drops or the 65 W power path shows resistance.

What limit appears first when the connector runs at 20 V and 3.25 A continuously?

The 65 W power ceiling is reached first, so sustained loads at the maximum 20 V / 3.25 A rating will hit thermal limits on the PCB traces before the 10 Gbps data lines saturate.
