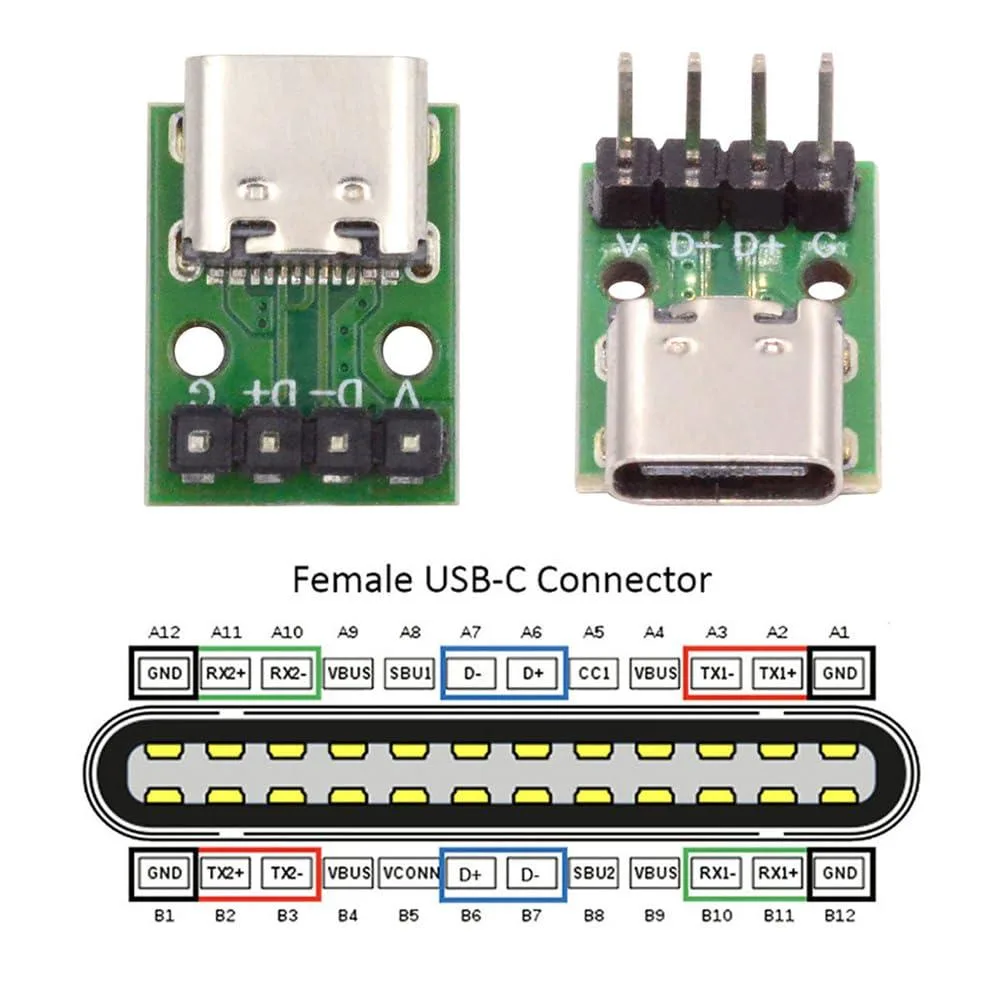

Small USB-C female socket on green PCB with four 2.54mm header pins

LORDWORLD

LORDWORLD USB 2.0 Type-C Female to 4-Pin 2.54mm Header 15W

SKU CH-HDPN-RWMVC

A USB 2.0 Type-C female to 4-pin 2.54 mm header adapter delivering 480 Mbps data and up to 15 W power

  • USB 2.0 data at 480 Mbps for quick file transfers
  • Reversible Type-C plug inserts either way for easy connection
  • Delivers up to 15 W at DC 5 V for efficient charging
  • 4-pin 2.54 mm header suits DIY boards and test setups
  • Supports USB 2.0 data and power only, not Type-C PD function

USB-C to 4-pin header adapter

This LORDWORLD adapter converts a USB 2.0 Type-C female port to a 4-pin 2.54 mm pitch header. It supports data transfer at 480 Mbps and delivers up to 15 W of power at DC 5 V. The reversible Type-C connector accepts plugs in either orientation. The pinout carries USB 2.0 data and DC power only, not Type-C Power Delivery negotiation.

Check header pitch and power needs

Verify that your target board or device uses a 2.54 mm pitch 4-pin header before ordering. Ensure the host can supply DC 5 V and that 15 W meets the attached device’s power requirement. The adapter does not support Power Delivery negotiation, so connected equipment must operate with a fixed 5 V supply. Confirm the pin assignment matches your design’s signal and ground layout.

Vertical solder mount for DIY builds

The vertical through-hole header is intended for hand soldering onto prototype or custom PCBs. A 2.54 mm pitch suits standard perfboard and stripboard spacing. The Type-C receptacle is rated for USB 2.0 speeds and reversible insertion, simplifying cable management in tight enclosures. No active components are included, so signal integrity depends on trace routing and solder quality.

Highlights

  • USB 2.0 data at 480 Mbps for quick file transfers
  • Reversible Type-C plug inserts either way for easy connection
  • Delivers up to 15 W at DC 5 V for efficient charging
  • 4-pin 2.54 mm header suits DIY boards and test setups
  • Supports USB 2.0 data and power only, not Type-C PD function

Specifications

BrandLORDWORLD

Questions about this item

What comes in the pack and is any extra cable or solder needed?

The set includes five Type-C female sockets with 4-pin 2.54 mm headers; you will need to solder wires or a cable to the header pins yourself.

Which version should I pick for USB 2.0 data and up to 15 W charging?

This single version delivers USB 2.0 at 480 Mbps and supports DC 5 V up to 15 W; there are no alternative capacities to choose from.

What does the 15 W figure mean when I plug a device into my PC?

It means the adapter can pass up to 15 W of DC 5 V power from a USB 2.0 Type-C source while simultaneously carrying 480 Mbps data.
