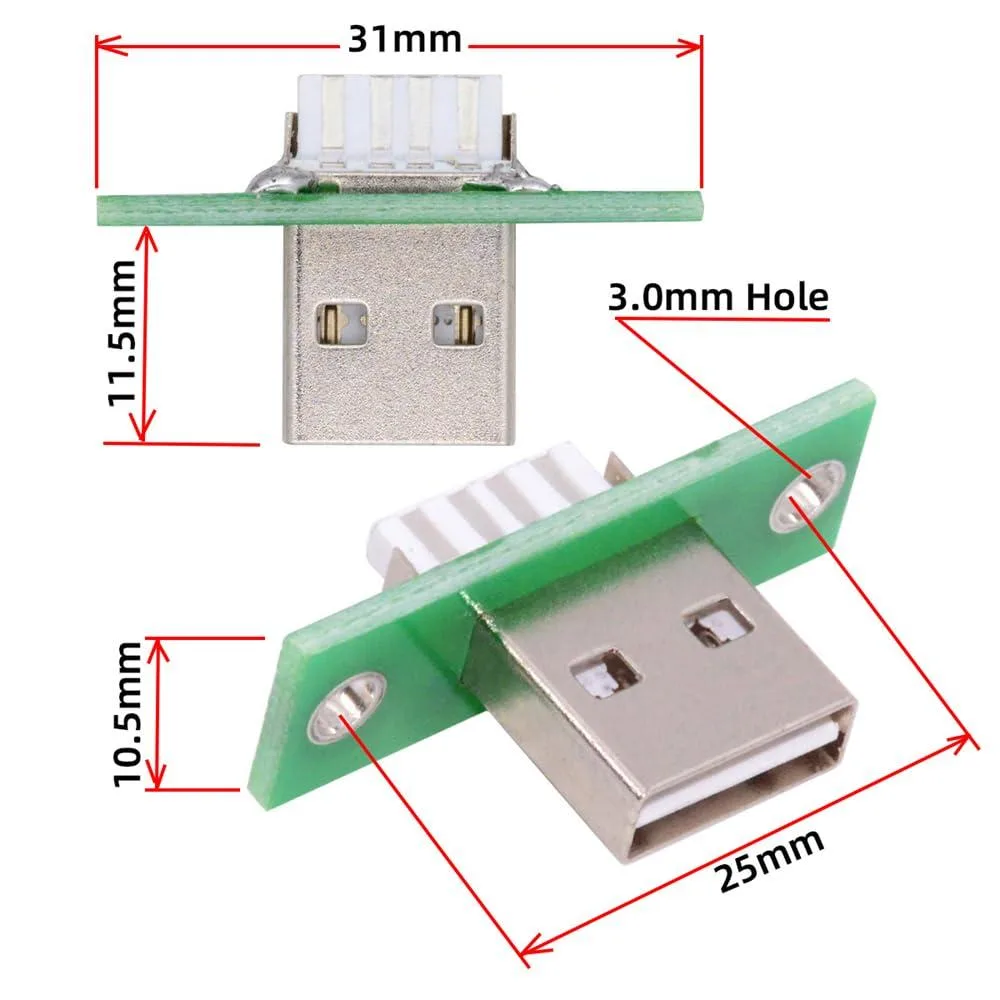

Five rectangular USB Type-A male panel-mount connectors with metal shells and solder tabs

LORDWORLD

LORDWORLD USB 2.0 Type-A Male Panel Mount Connector 5pcs Reversible Solder 480Mbps

SKU CH-VZZ1-4FVQH

A pack of five reversible USB 2.0 Type-A male panel-mount connectors rated for 480 Mbps data and 5 V 2 A power

  • Connect mobile devices, laptops and tablets simultaneously for data and power
  • Achieve 480Mbps throughput with USB 2.0 host and device pairing
  • Deliver up to DC 5V 2A charging through USB 2.0 power source
  • Reversible Type-A plug removes orientation hassles during insertion
  • Panel-mount design extends USB-A connections into cabinet devices

Five-piece panel-mount kit

This set supplies five USB 2.0 Type-A male connectors designed for panel mounting. Each unit accepts a standard Type-A plug in either orientation, letting hobbyists and technicians add a reversible external port to enclosures, test rigs or custom panels. Solder terminals provide a permanent connection for both data and power lines.

Reversible mating under load

The reversible housing removes the need to align the plug, which reduces wear on the port during frequent insertions. Rated for 480Mbps throughput and DC 5V 2A delivery, the connector maintains both signal and power paths simultaneously during sustained transfers or charging sessions. Panel mounting secures the body so cable strain does not transfer to the solder joints.

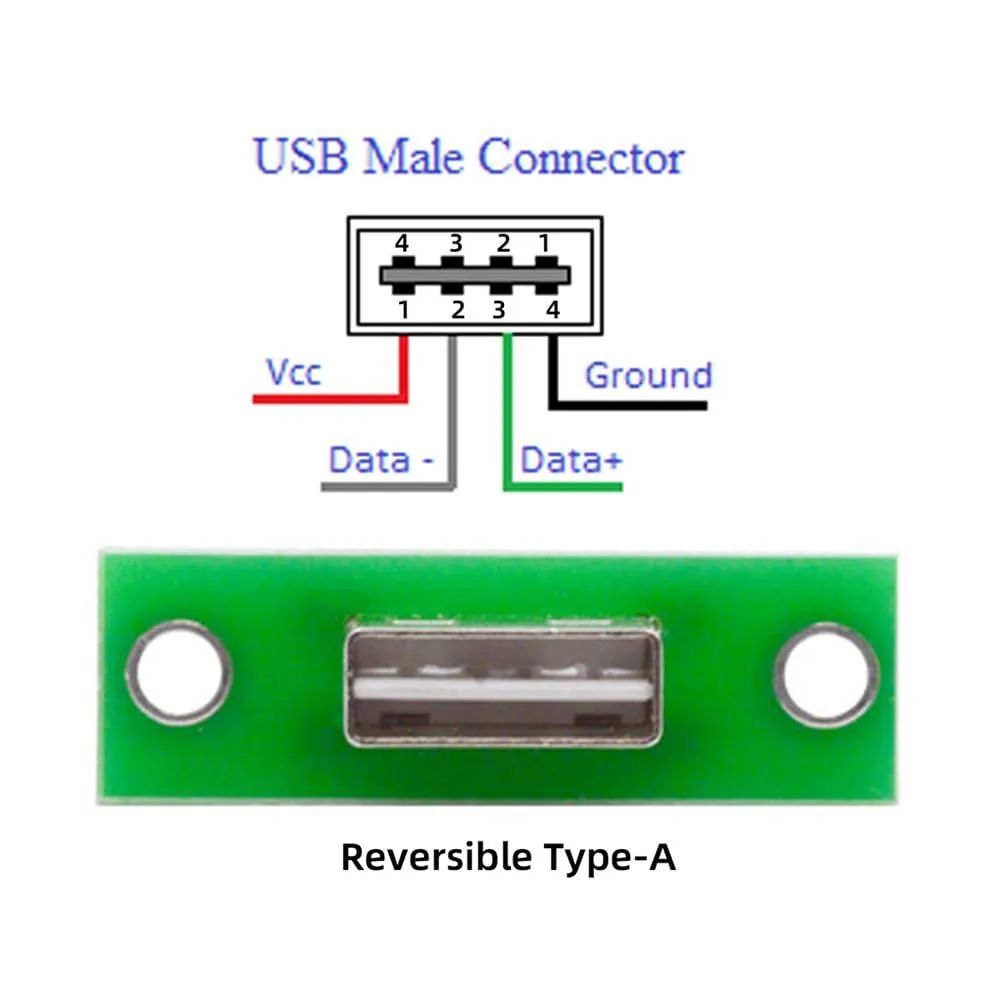

Solder-type termination

Installation requires soldering wires to the rear terminals, so the part suits builders comfortable with a soldering iron and heat-shrink insulation. No crimp or screw-terminal option is included, and the connector is not intended for cable-end repairs that demand a strain-relieved hood.

Highlights

  • Connect mobile devices, laptops and tablets simultaneously for data and power
  • Achieve 480Mbps throughput with USB 2.0 host and device pairing
  • Deliver up to DC 5V 2A charging through USB 2.0 power source
  • Reversible Type-A plug removes orientation hassles during insertion
  • Panel-mount design extends USB-A connections into cabinet devices

Specifications

BrandLORDWORLD

Questions about this item

Does the reversible Type-A panel mount connector generate noticeable heat when powering devices at 5V 2A continuously?

The connector is rated for up to DC 5V 2A with USB 2.0 power, so normal operation at that level should not produce excessive heat.

What tools or materials do I need to install these panel-mount connectors into a cabinet?

You need a panel cut-out for the mount, a soldering iron and solder for the four connections, and basic hand tools to secure the connector.

Will these USB 2.0 Type-A panel mounts work reliably with older USB 1.1 peripherals I still use?

Yes, the connectors support USB 2.0 at 480Mbps and are backward compatible with USB 1.1 devices.
