LORDWORLD SS2-50R 50A 125/250V Marine Shore Power Socket (CS6369)
A 50 A 125/250 V marine shore-power socket, ETL certified with three poles and four wires for 8–4 AWG copper cable
- ETL-certified safety for reliable shore-power connections
- 50 A 125/250 V rating handles heavy marine loads
- Straight-blade SS2-50R design fits standard CS6369 inlets
- Accepts 8–4 AWG copper wire for flexible installation
- Colour-coded terminals simplify correct wiring
50 A 125/250 V Marine Shore Power Socket

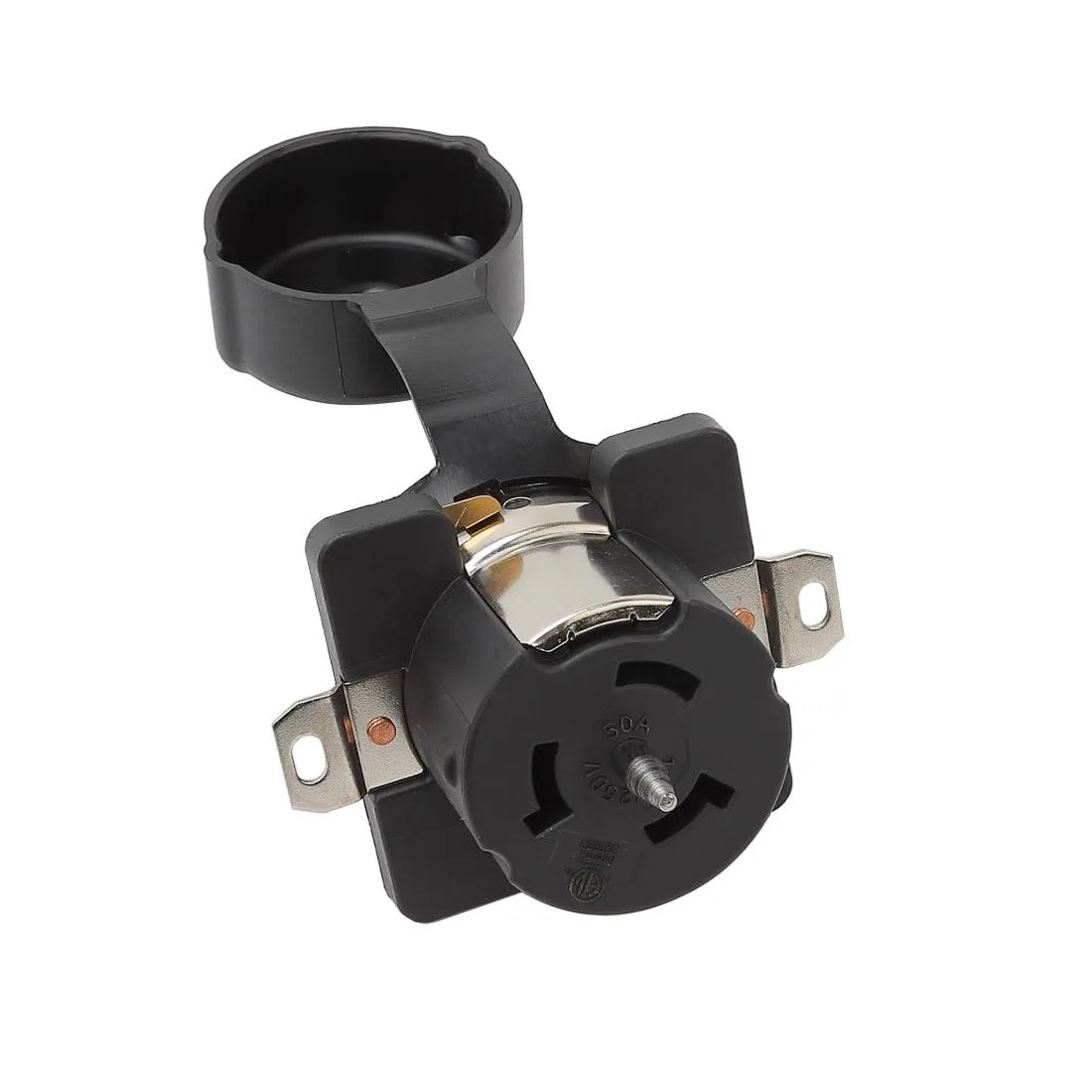

This LORDWORLD SS2-50R receptacle is a female NEMA SS2-50R socket rated for 50 A at 125/250 V AC. It carries ETL certification and uses a straight-blade, three-pole, four-wire configuration compatible with the CS6369 standard. The black housing suits marine shore-power installations where a 50 A supply is required.
Suits installers wiring 50 A shore-power pedestals
The device accepts copper conductors from 8 AWG to 4 AWG and works with flexible cord types such as SO, ST, STO, STOO, SOW, SOOW, STW, STOW, STOOW, SEOW and SEOOW. Terminals are colour-coded: white for neutral, green for ground, black and red for the two live poles. Buyers needing a different amperage, voltage or blade pattern should select a matching NEMA configuration instead.
CS6369-compatible NEMA SS2-50R blade pattern
The single specification that decides fit is the NEMA SS2-50R straight-blade geometry rated 50 A 125/250 V, which matches the CS6369 reference. Only cords and inlets built to that exact blade arrangement will engage correctly.
Highlights
- ETL-certified safety for reliable shore-power connections
- 50 A 125/250 V rating handles heavy marine loads
- Straight-blade SS2-50R design fits standard CS6369 inlets
- Accepts 8–4 AWG copper wire for flexible installation
- Colour-coded terminals simplify correct wiring
Specifications
| Brand | LORDWORLD |
|---|
Questions about this item
What current and voltage does the SS2-50R receptacle support?
The SS2-50R is rated for 50 amps at 125/250 volts AC, matching the NEMA SS 2-50R standard for marine shore power connections.
What wire gauges and cord types fit this socket?
It accepts copper conductors from 8 AWG to 4 AWG and works with SO, ST, STO, STOO, SOW, SOOW, STW, STOW, STOOW, SEOW and SEOOW jacketed cords in that gauge range.
How are the four terminals identified for correct wiring?
Terminals are colour-coded: white for neutral (W), green for ground (G), and black or red for the two live legs (X and Y); tightening each screw fully before energising the circuit is the step most often missed.
