Green rectangular circuit board with screw terminals, DC jack, USB-C port and multiple indicator LEDs

LORDWORLD

LORDWORLD Solar Power Management Module (D) 6V-24V

SKU CH-175E-MHAH2

Solar power management board with MPPT charging for 6V to 24V panels and Type-C input, plus battery protection circuits

  • MPPT tracking maximises solar panel efficiency
  • Charges battery from solar panel or Type-C adapter
  • Accepts 6 V to 24 V input via jack or screw terminal
  • LED indicators show solar and battery status
  • Protection against over-charge, over-discharge, overheat and over-current

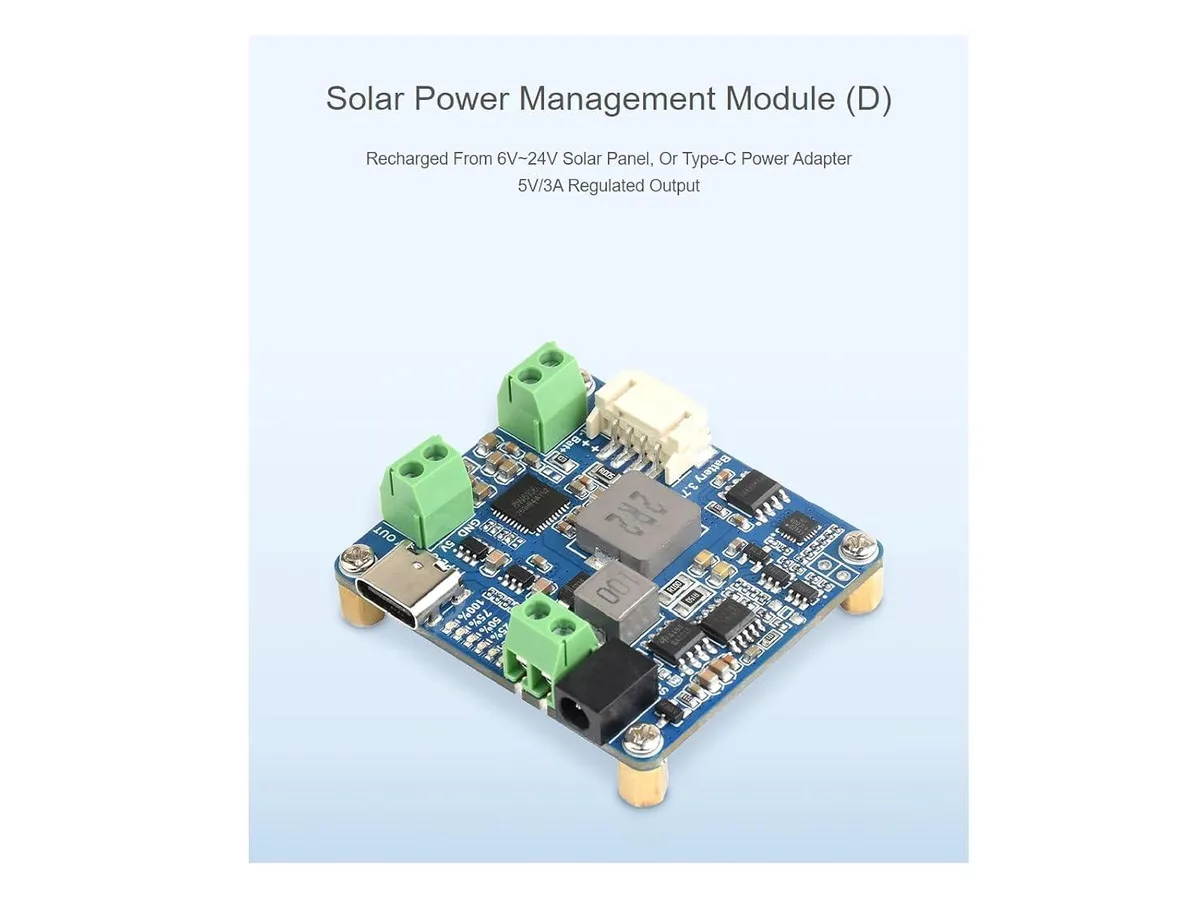

Solar Power Management Module (D)

This module manages power from a solar panel or Type-C adapter for development boards such as Raspberry Pi, Jetson Nano and Arduino. It applies MPPT to maximise panel efficiency and charges the connected battery. Multiple LED indicators show the status of the solar input and battery. Protection circuits guard against over-charge, over-discharge, overheat and over-current.

Suitable for solar-powered IoT and edge projects

Builders who need a charge controller with MPPT for 6V to 24V panels and dual input options will find this module appropriate. It is not for installations that require input voltages outside the stated range or for systems that cannot accommodate a DC-002 jack or screw terminal connection.

Input voltage range 6V to 24V

The module accepts solar panels rated between 6V and 24V and automatically adapts to the input voltage through the DC-002 jack or screw terminal. This single specification determines whether the board matches the panel you plan to use.

Highlights

  • MPPT tracking maximises solar panel efficiency
  • Charges battery from solar panel or Type-C adapter
  • Accepts 6 V to 24 V input via jack or screw terminal
  • LED indicators show solar and battery status
  • Protection against over-charge, over-discharge, overheat and over-current

Specifications

BrandLORDWORLD

Questions about this item

What input connectors does the module accept for a 6V to 24V solar panel?

The module accepts a DC-002 jack or screw terminal for solar panel input with anti-reverse protection.

How do I connect both a solar panel and a USB Type-C adapter for charging?

Connect the solar panel to the DC-002 jack or screw terminal and plug the Type-C adapter into the USB-C port; the module manages both sources automatically.

What battery protections are built in for long-term outdoor use?

The board includes over-charge, over-discharge, overheat and over-current protection circuits for safe continuous operation.
