LORDWORLD SKR PICO V1.0 Control Board with TMC2209 UART Stepper Motor for Voron V0 V0.1 3D Printer Motherboard
A compact 3D printer controller board for Voron V0 and V0.1 with TMC2209 UART drivers, integrated Raspberry Pi frame and Type-C interface
- Designed for Voron V0 and V0.1 printers
- ARM Cortex-M0+ RP2040 microcontroller powers the board
- TMC2209 UART drivers provide quiet motor control
- Type-C port handles main control communication
- Fuse kit with holder simplifies installation and replacement

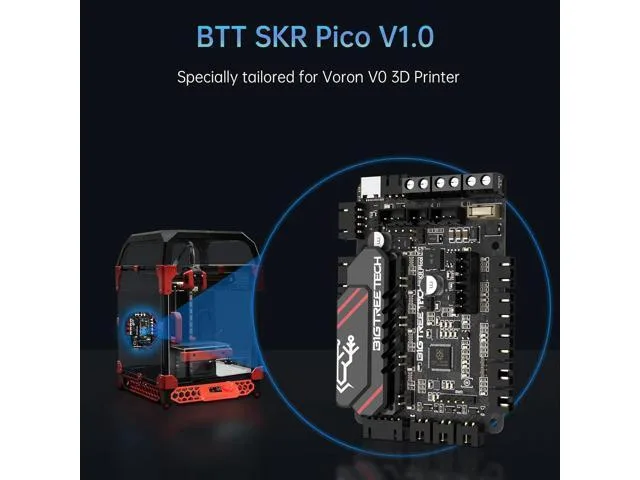

Control board for Voron V0 and V0.1

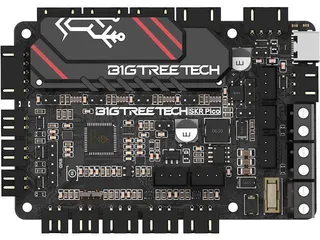

The LORDWORLD SKR PICO V1.0 is a compact control board designed for Voron V0 and V0.1 3D printers. It integrates a TMC2209 UART stepper driver and an ARM Cortex-M0+ RP2040 microcontroller. The board includes a Raspberry Pi mounting frame for Klipper firmware support. A Type-C interface handles main control communication.
Space-saving lateral design
The lateral seat design matches the longitudinal mounting requirements of Voron V0 and V0.1 machines. A Raspberry Pi can be installed directly on the board frame to save internal space. The fuse kit uses a separate holder for easy disassembly and installation. Builders needing a different form factor or additional expansion headers cannot use this board.

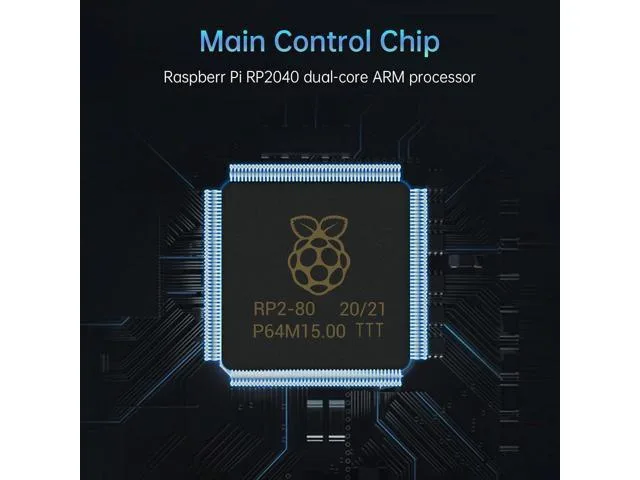

RP2040 microcontroller with TMC2209 drivers
The RP2040 MCU and TMC2209 UART stepper motors define the board’s motion control capabilities. This combination determines whether the board meets the performance needs of a specific Voron build. Users requiring a different MCU architecture or driver count must select another controller.
Highlights
- Designed for Voron V0 and V0.1 printers
- ARM Cortex-M0+ RP2040 microcontroller powers the board
- TMC2209 UART drivers provide quiet motor control
- Type-C port handles main control communication
- Fuse kit with holder simplifies installation and replacement
Specifications
| Brand | LORDWORLD |
|---|
Questions about this item
Which version of the SKR Pico control board is designed for my Voron V0 or V0.1 printer?
The SKR Pico V1.0 is the brand-new version built specifically for the Voron V0 and V0.1, featuring a lateral seat design that matches the longitudinal mounting space of those machines.
What does the RP2040 MCU mean for daily printing on this board?
The ARM Cortex-M0+ RP2040 microcontroller runs the main control firmware and communicates with a host Raspberry Pi over the Type-C interface to enable Klipper-based printing.
How does the UART connection on the TMC2209 drivers affect motor control?
UART allows the firmware to configure the TMC2209 stepper drivers digitally — setting current, microstepping and enabling sensorless homing without physical jumpers or potentiometers.
