Green printed circuit board with a 74 pin SFF-8654 connector and a PCIe 8x edge connector

LORDWORLD

LORDWORLD SFF-8654 8X PCIe 4.0 Raid Adapter 32Gbps 74Pin

SKU CH-80A7-GDW35

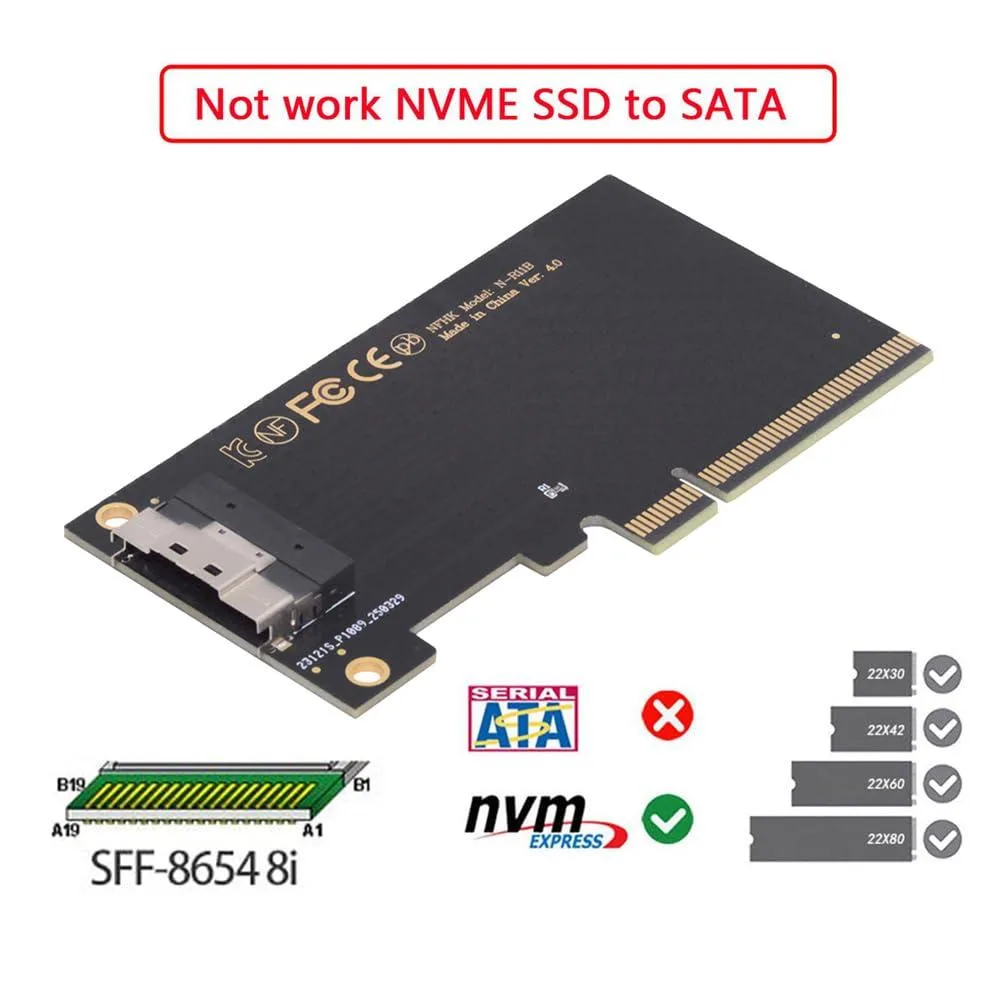

Converts a PCIe 4.0 x8 slot to a 74-pin SFF-8654 connector for SSDs or eGPUs at up to 32 Gbps

  • PCIe 4.0 support delivers up to 32Gbps transfer speed
  • Backward compatible with PCIe 3.0 for broader motherboard use
  • Converts PCIe sockets to SFF-8654 8X with 74-pin connector
  • Fixing holes enable secure installation in small hosts and laptops
  • Requires motherboard with detachable PCI-E channels for dual-disk operation

SFF-8654 8X Raid Adapter

This LORDWORLD adapter brings a single external Slimline 74Pin SFF-8654 8X port to systems with a detachable PCIe 8x lane. It suits builders who need to connect one SSD or eGPU graphics card through an optional cable in small hosts, desktops or laptops. The card converts an internal PCIe socket to the SFF-8654 interface and includes fixing holes for secure mounting. It is not for buyers whose motherboards lack bifurcation support or who need multiple drive connections without a splitter.

PCIe 4.0 Signal Transmission

The board transmits PCI Express 4.0 signals using the PCIe protocol at up to 32Gbps and remains backward compatible with PCIe 3.0. High-speed data transfer is designed for SSDs that use SFF-8654 8x connectors, delivering fast and reliable throughput. Only motherboards with detachable PCI-E channels are supported; boards without signal split can recognise only one disk. No active cooling or external power connectors are described in the specifications.

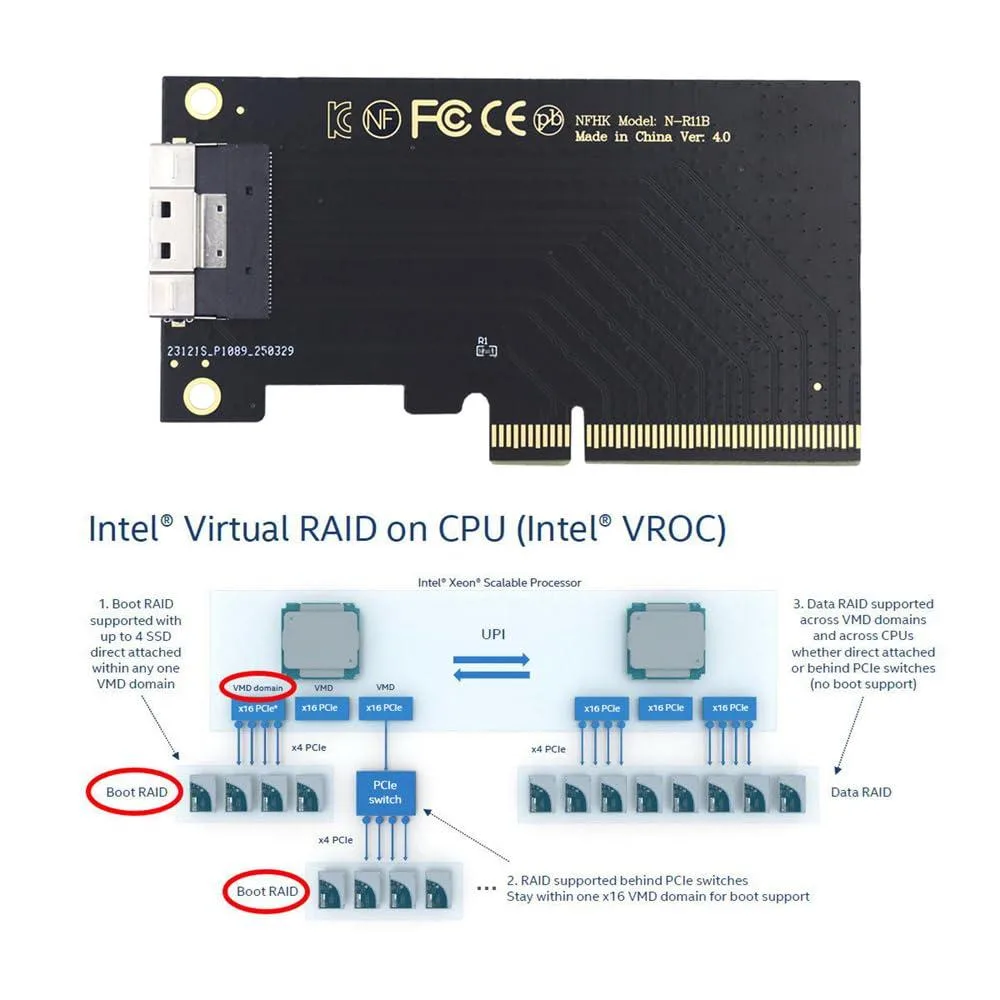

VROC RAID 0 Hyper Adapter

The adapter enables VROC RAID 0 across two disks when the motherboard PCIe channel provides bifurcation. A single detachable PCIe 8x motherboard slot connects to the card, which installs internally through the SFF-8654 interface. No bundled cables, drivers or management software are listed, so the optional cable and any RAID configuration utilities must be sourced separately. Builders without a bifurcation-capable platform cannot use the dual-disk RAID function.

Highlights

  • PCIe 4.0 support delivers up to 32Gbps transfer speed
  • Backward compatible with PCIe 3.0 for broader motherboard use
  • Converts PCIe sockets to SFF-8654 8X with 74-pin connector
  • Fixing holes enable secure installation in small hosts and laptops
  • Requires motherboard with detachable PCI-E channels for dual-disk operation

Specifications

BrandLORDWORLD

Questions about this item

What PCIe generation does the SFF-8654 8X adapter use and what throughput does it reach?

It runs on PCIe 4.0 and delivers up to 32 Gbps of bandwidth, while remaining compatible with PCIe 3.0 hosts.

What physical mounting features does the LORDWORLD RAID card include?

The board has fixing holes so it can be secured inside small hosts, desktops or laptops when converting a PCIe slot to an SFF-8654 8X connector.

How is the adapter installed and what motherboard requirement is often missed?

Insert the card into a detachable PCIe 8x slot; the motherboard must support PCIe lane splitting, otherwise only one attached drive will be detected.
