Green PCB adapter with SFF-8654 74-pin and PCIe 16X connectors

LORDWORLD

LORDWORLD SFF-8654 8X 74Pin to PCIe 16X Adapter

SKU CH-YG87-Q8TMK

Converts a SFF-8654 8X 74Pin port to a PCIe 16X slot for GPU, SSD or expansion cards at up to 32Gbps with PCIe 4.0/5.0 support

  • Fast data transfers up to 32Gbps via SFF-8654 8x
  • PCIe 4.0 and 5.0 support with 3.0 backward compatibility
  • 16X PCIe slot accepts GPU, SSD or expansion card
  • 6-pin 12V power input for stable card operation
  • Fits small hosts, desktops and laptops with fixing holes

SFF-8654 8X adapter for PCIe expansion

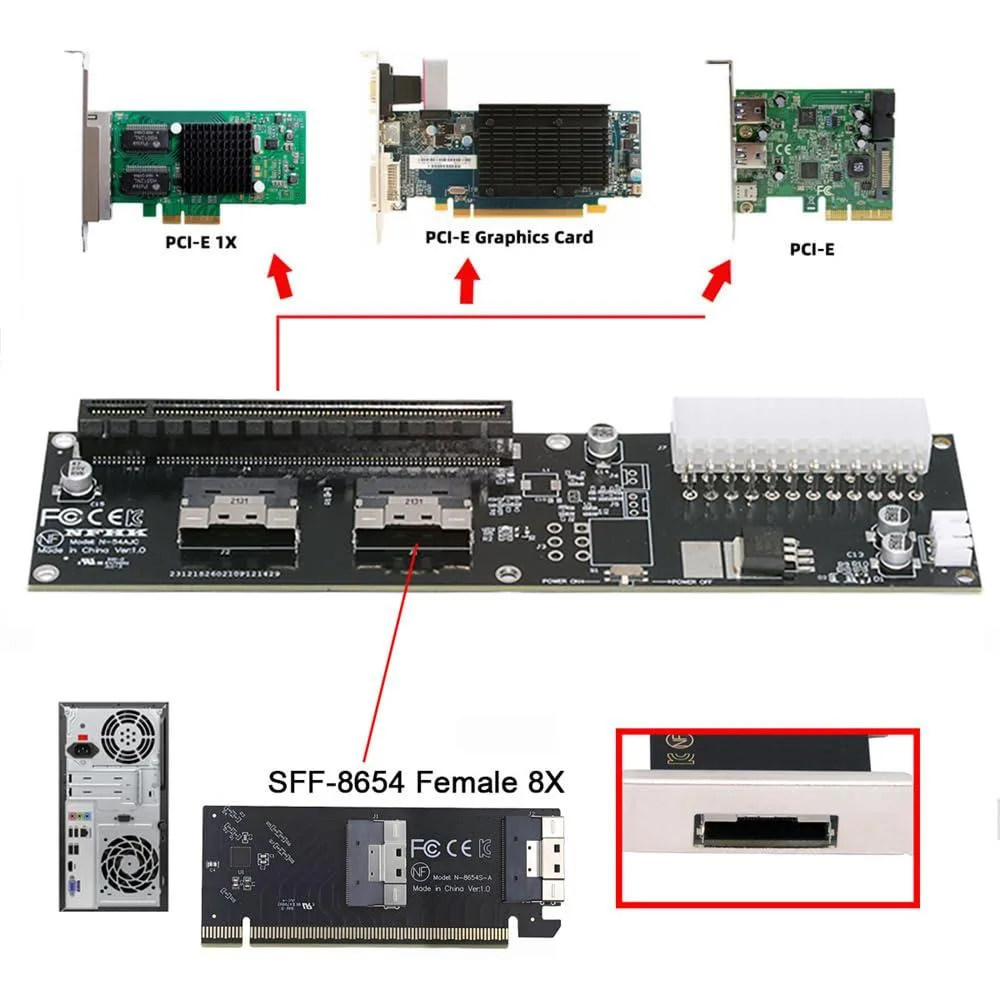

This adapter connects a motherboard with detachable PCIe channels to a PCIe 16X device through an SFF-8654 8X 74Pin interface. It is intended for builders adding a GPU, SSD or other expansion card to small hosts, desktops or laptops that expose the Slimline connector.

ATX 24Pin and 6Pin power inputs

The board includes an ATX 24Pin connector and a PCIe 6Pin port that supplies 12V power to the attached card. The onboard switch controls PCIe power delivery, and the adapter requires a motherboard capable of bifurcation; without signal splitting only one device is recognised.

Internal installation with fixing holes

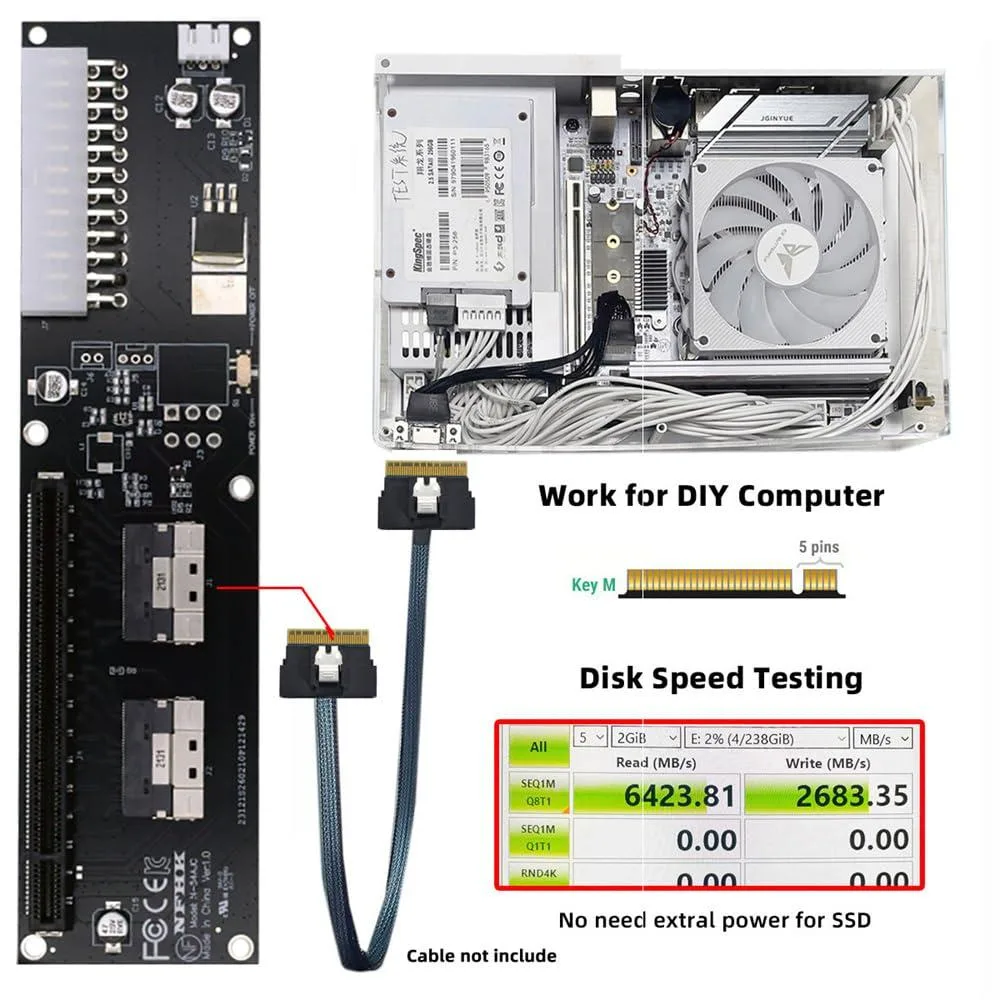

The converter mounts internally using the provided fixing holes and plugs directly into the SFF-8654 8X slot and the PCIe 16X socket. Compatibility is limited to platforms with detachable PCIe lanes, and an optional cable is needed to reach external devices.

Highlights

  • Fast data transfers up to 32Gbps via SFF-8654 8x
  • PCIe 4.0 and 5.0 support with 3.0 backward compatibility
  • 16X PCIe slot accepts GPU, SSD or expansion card
  • 6-pin 12V power input for stable card operation
  • Fits small hosts, desktops and laptops with fixing holes

Specifications

BrandLORDWORLD

Questions about this item

Does the SFF-8654 8X 74Pin connector wear out after repeated insertions?

The adapter uses a standard SFF-8654 8X 74Pin interface rated for normal server-grade mating cycles; no scheduled replacement is required unless physical damage occurs.

What limits throughput first when the link runs at 32Gbps continuously?

The PCIe 4.0/5.0 x8 electrical lane width and the 32Gbps signalling ceiling set the hard bandwidth limit under sustained load.

How much heat or fan noise does the board add when a GPU draws 12V through the 6Pin power port all day?

The passive PCB adds negligible heat; all thermal load comes from the attached card and the motherboard slot, not from the adapter itself.
