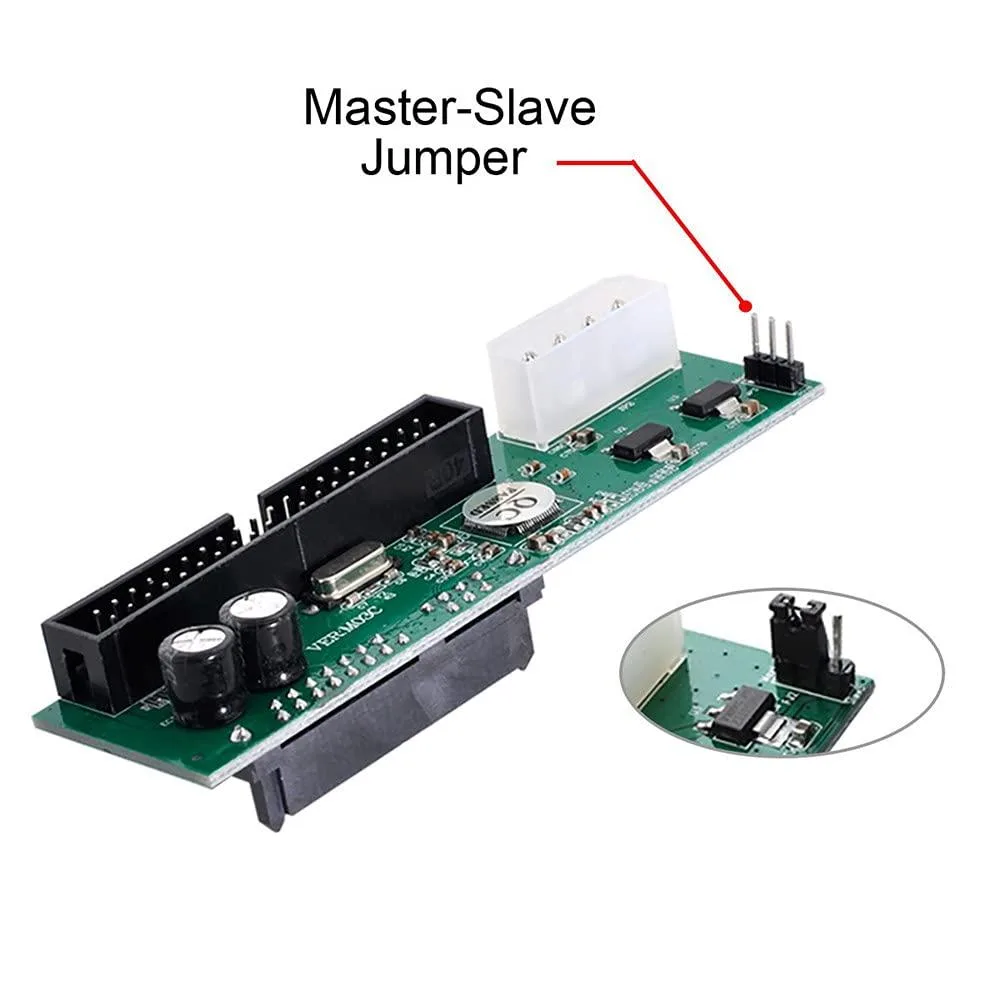

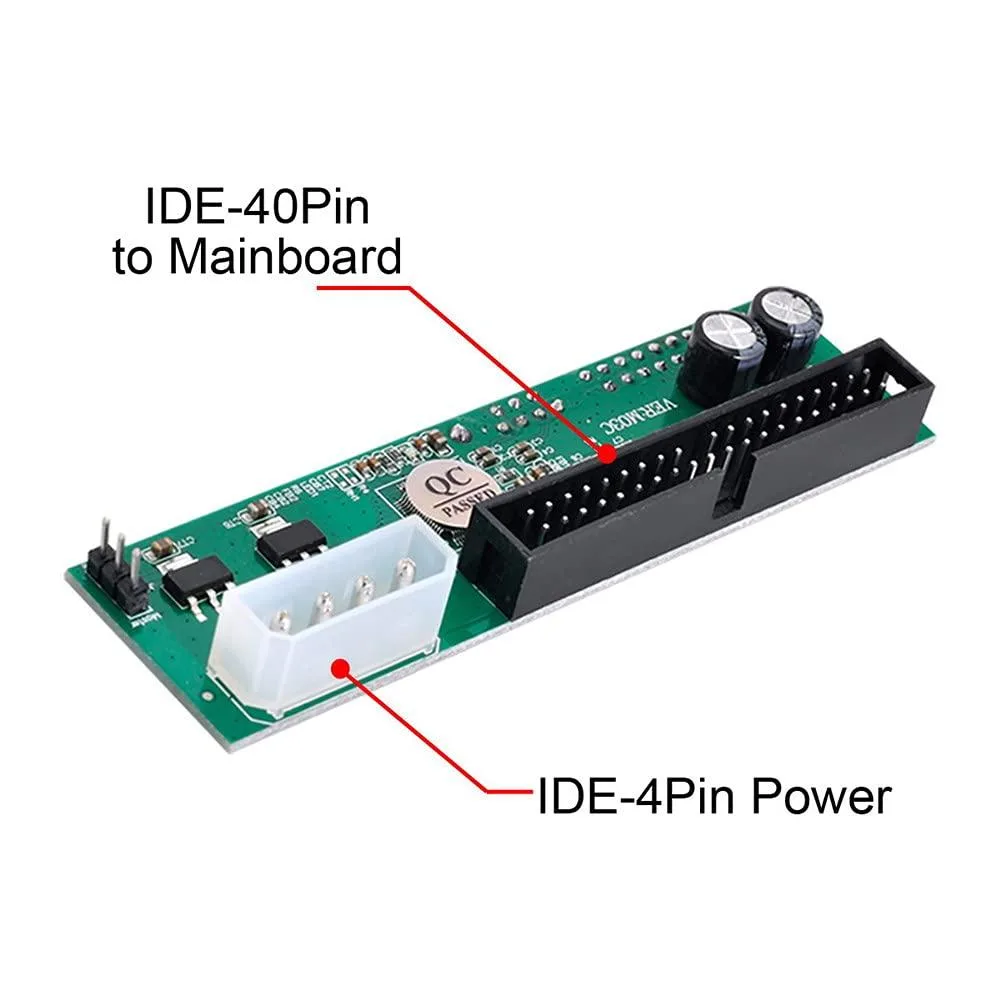

Green circuit board with black 40-pin IDE connector and SATA data plus power ports

LORDWORLD

LORDWORLD SATA to IDE 40Pin Adapter 2.5 3.5

SKU CH-K16Z-KQAZQ

Converts 2.5 or 3.5 inch SATA drives to IDE 40-pin with master/slave jumper, supporting 66/100/133 MB/s speeds for legacy system upgrades

  • Connect 2.5 or 3.5 SATA drives to IDE motherboards via 40Pin converter
  • Supports IDE transfer rates of 66 100 133MB/s with master slave jumper
  • Driverless plug and play operation simplifies installation on legacy systems
  • Upgrade older IDE computers to modern SATA HDD or SSD storage
  • Broad OS compatibility from DOS through Windows 10 and Linux

SATA-to-IDE converter for legacy systems

This adapter connects 2.5 or 3.5 inch SATA drives to a 40-pin IDE motherboard header. It targets owners of older desktops who want to replace a failed PATA drive with a modern SATA HDD or SSD. No driver installation is required and the board works with DOS, Windows 98 through Windows 10 and Linux. The unit is not hot-swappable so the system must be powered down before swapping drives.

IDE 66/100/133 MB/s bandwidth ceiling

The converter supports IDE transfer modes up to 133 MB/s, which matches the peak throughput of Ultra ATA/133 drives. A modern SATA SSD will hit this ceiling quickly, so sequential read and write speeds are limited to the IDE bus rather than the drive’s native capability. Random I/O still benefits from the SSD’s low latency, but sustained transfers cannot exceed the 133 MB/s interface limit. Master and slave jumpers let two drives share the cable when the board provides a second connector.

Passive board with minimal power draw

The PCB draws power directly from the IDE header and adds no active cooling, so it produces no audible noise. Power consumption is negligible compared with the attached drive and does not stress older power supplies. Because the adapter is a simple signal converter, thermals are dictated entirely by the drive itself; ensure the chassis airflow matches the drive’s specifications.

Highlights

  • Connect 2.5 or 3.5 SATA drives to IDE motherboards via 40Pin converter
  • Supports IDE transfer rates of 66 100 133MB/s with master slave jumper
  • Driverless plug and play operation simplifies installation on legacy systems
  • Upgrade older IDE computers to modern SATA HDD or SSD storage
  • Broad OS compatibility from DOS through Windows 10 and Linux

Specifications

BrandLORDWORLD

Questions about this item

Will the 40Pin adapter let me keep my existing IDE 66/100/133MB/s motherboard while installing a 2.5 or 3.5" SATA drive?

Yes, the converter board connects any 2.5 or 3.5" SATA drive to a 40Pin IDE motherboard and supports IDE 66, 100 and 133MB/s modes using the master/slave jumper.

How can I verify the adapter is functioning correctly once installed?

The system BIOS should detect the SATA drive on the IDE channel and the operating system — from DOS through Windows 10 or Linux — will recognise it without any driver installation.

What comes in the box and do I need a separate power cable for the SATA drive?

The package contains the PCBA adapter board only; you must supply a standard SATA power cable from your PSU to power the connected drive.
