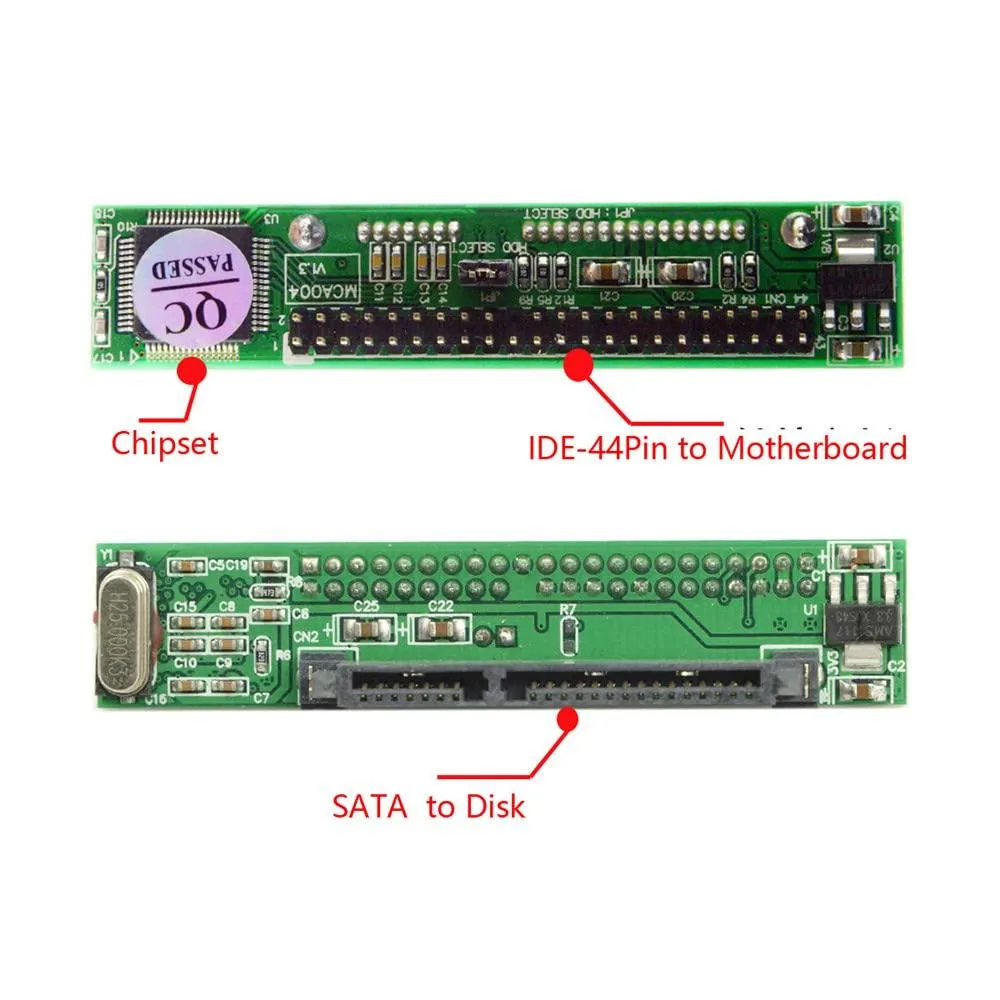

Small green circuit board with a 44-pin IDE connector and SATA female port, compact rectangular shape

LORDWORLD

LORDWORLD SATA Female to IDE 44Pin Adapter PCBA 2.5" HDD/SSD

SKU CH-GBPD-ZEP3V

Converts a 2.5 inch SATA drive to a 44 pin IDE interface without extra power or drivers

  • Connect 2.5" SATA drives to 44-pin IDE systems
  • Supports IDE transfer rates of 66, 100 and 133 MB/s
  • Powers the drive directly from the 44-pin connector — no extra supply needed
  • Works driver-free with DOS, Windows 98 through Windows 7 and Linux
  • Compact 69 mm x 14 mm x 17 mm board fits tight laptop bays

Compact SATA-to-IDE 44-pin adapter

This PCBA converts a 2.5 inch SATA SSD or HDD to a 44-pin IDE interface for laptops and mini computers. It draws power directly from the IDE connector so no extra cables or supply are required. The board measures 69 mm by 14 mm by 17 mm and installs without drivers. It is not hot-swappable.

500 GB drive capacity limit

The adapter works with any SATA drive up to 500 GB and supports IDE transfer rates of 66, 100 and 133 MB/s. Drives larger than 500 GB are not supported. Compatibility covers DOS, Windows 98 through Windows 7 and Linux.

Passive thermal profile and low power

No active cooling is present; the small PCB dissipates minimal heat during normal operation. Power is supplied entirely through the 44-pin IDE connection, keeping overall draw low. The unit runs silently with no moving parts.

Highlights

  • Connect 2.5" SATA drives to 44-pin IDE systems
  • Supports IDE transfer rates of 66, 100 and 133 MB/s
  • Powers the drive directly from the 44-pin connector — no extra supply needed
  • Works driver-free with DOS, Windows 98 through Windows 7 and Linux
  • Compact 69 mm x 14 mm x 17 mm board fits tight laptop bays

Specifications

BrandLORDWORLD

Questions about this item

Will a 500GB SATA drive run at full speed through the IDE 44‑pin interface?

The adapter supports IDE 66/100/133MB/s, so the drive will be limited to the IDE bus maximum of 133MB/s rather than its native SATA rate.

Does the 44‑pin IDE connector supply enough power for a 2.5" SATA SSD without extra cables?

Yes, the 44‑pin IDE connector delivers power directly to the drive, so no separate power supply or adapter is required.

What are the exact board dimensions to confirm it fits inside a laptop drive bay?

The PCBA measures 69 mm long, 14 mm wide and 17 mm high (2.72" x 0.55" x 0.69").
