Small black circuit board with a wide 22-pin SATA plug and two smaller Mac SSD sockets plus a toggle switch

LORDWORLD

LORDWORLD SATA 22Pin to 12+6Pin 17+7Pin Mac Adapter

SKU CH-4JR4-YMCNF

Connects a SATA host to 2010-2013 MacBook Air and Pro SSDs using a switchable 12+6pin or 17+7pin interface

  • Connect 2.5 inch SATA drives to Mac SSD slots via 22pin to 12+6pin and 17+7pin adapters
  • Switch between 12+6pin and 17+7pin SSD connections for 2011 to 2013 Mac models
  • Use one 7+15pin host connector for broad operating system compatibility
  • Format Mac SSDs as FAT or NTFS for Windows read access via Disk Management
  • Supports A1425 A1398 MC975 MC976 enclosures for 2010 2011 2012 Mac Air Pro Retina

Adapter Purpose

This adapter connects legacy MacBook Air and Pro SSDs from 2010 through early 2013 to a standard SATA host. It suits technicians and owners recovering data or repurposing drives from models identified as A1398, A1425, MC975 and MC976.

Connector Limits

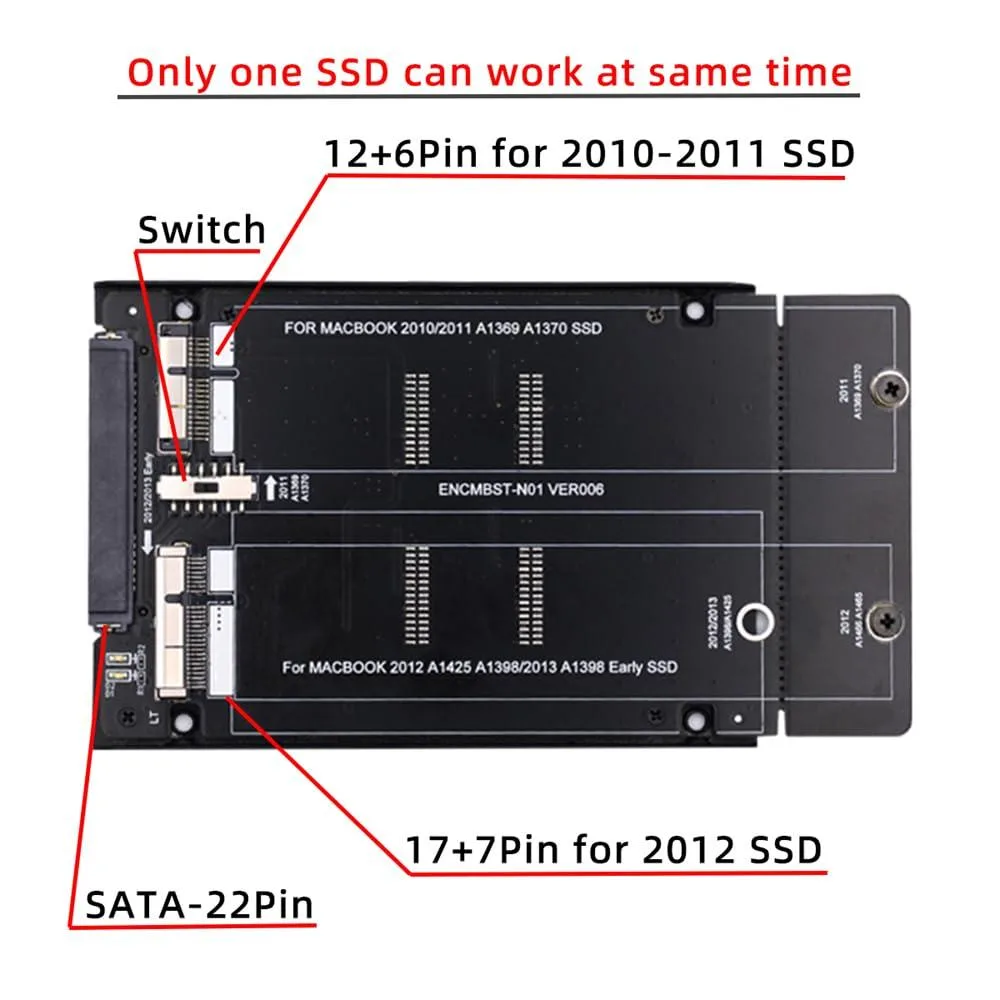

The board carries a single 7+15-pin SATA link and two drive sockets: one 12+6-pin and one 17+7-pin. Only one socket is active at a time, selected by an onboard switch. Drives formatted for macOS remain readable only on macOS unless reformatted to FAT or NTFS under Windows.

Build Integration

The 2.5-inch form factor lets the adapter sit in a typical drive bay or external enclosure. No additional power connector is described, so the host SATA port must supply sufficient current. The package excludes the SSD itself.

Highlights

  • Connect 2.5 inch SATA drives to Mac SSD slots via 22pin to 12+6pin and 17+7pin adapters
  • Switch between 12+6pin and 17+7pin SSD connections for 2011 to 2013 Mac models
  • Use one 7+15pin host connector for broad operating system compatibility
  • Format Mac SSDs as FAT or NTFS for Windows read access via Disk Management
  • Supports A1425 A1398 MC975 MC976 enclosures for 2010 2011 2012 Mac Air Pro Retina

Specifications

BrandLORDWORLD

Questions about this item

Will the 7+15pin SATA host connector plug into the SATA port on my older desktop motherboard?

Yes, the adapter presents a standard 7+15pin SATA interface on the host side so it connects directly to any desktop SATA data and power port.

How do I know the switch is set correctly for my 12+6pin or 17+7pin SSD?

Slide the switch to match the pin count printed on the board; the LED will light when the selected SSD is powered and detected by the OS.

Does the package include mounting screws or a 2.5inch drive caddy for the SSD?

The box contains only the adapter board; no screws, caddy or SSD are supplied so you will need your own 2.5inch mounting hardware.
