A green circuit board with one SATA input and five SATA output connectors, plus a power socket

LORDWORLD

LORDWORLD SATA 1-to-5 Port Multiplier JMB575

SKU CH-FNMN-4TZ2T

Splits one SATA host port into five independent 6 Gbps channels using a JMB575 multiplier, compatible with JMS582, JMB585, ASM1061, ASM1064 and ASM1166 controllers

  • Expands one SATA port to five drives
  • JMB575 chip integrates five independent SATA channels
  • Works with JMS582, JMB585, ASM1061, ASM1064, ASM1166 host controllers
  • Cascaded mode allows up to five drives on one host

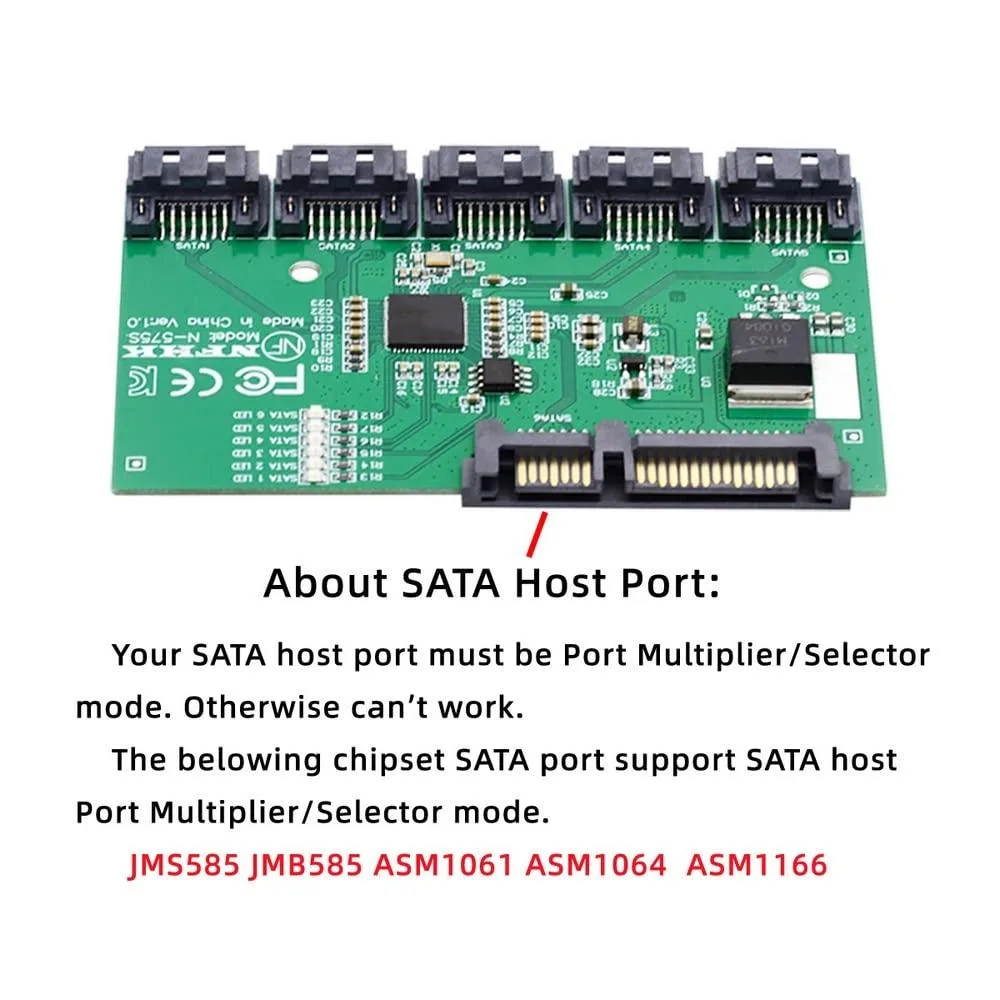

  • Requires host port in Multiplier / Selector mode

Port multiplier for SATA expansion

This LORDWORLD adapter uses a JMB575 chip to split a single SATA host connection into five independent SATA 6Gbps ports. It is designed for users who need to attach multiple drives to a host controller that supports port multiplier or selector mode.

Suited for supported host controllers only

The device works with host chipsets including JMS582, JMB585, ASM1061, ASM1064 and ASM1166 when they are set to port multiplier mode. Builders whose host ports lack this capability will not be able to use the adapter.

Cascaded operation with five drives

In cascaded mode the JMB575 chip manages up to five drives simultaneously through its integrated microprocessor and five independent channels. Sustained throughput depends on the host link and drive mix rather than on a single-burst rating.

Highlights

  • Expands one SATA port to five drives
  • JMB575 chip integrates five independent SATA channels
  • Works with JMS582, JMB585, ASM1061, ASM1064, ASM1166 host controllers
  • Cascaded mode allows up to five drives on one host
  • Requires host port in Multiplier / Selector mode

Specifications

BrandLORDWORLD

Questions about this item

Does my motherboard SATA controller need to support port multiplier mode for this JMB575 adapter to work?

Yes, the host SATA port must be in port multiplier or selector mode; otherwise the adapter cannot function.

Will this multiplier work with my existing ASM1061 or JMB585 controller card?

The JMB575 supports controllers using JMS582, JMB585, ASM1061, ASM1064 or ASM1166 chipsets.

How can I verify that all five connected drives are running at 6 Gbps after setup?

Check each drive's negotiated link speed in your OS disk utility or BIOS; all should report SATA 6 Gbps when the multiplier is configured correctly.
