Silver 1U rack panel with 48 quarter-inch TRS jacks and toggle switches

LORDWORLD

LORDWORLD S Patch Plus 48 Point Balanced TRS Patch Bay

SKU CH-FWPP-8GJB5

A 48-point balanced TRS patch bay with front-panel normal, half-normal and thru switching for studio racks

  • Central connection point for 48 balanced audio channels
  • Solid construction with 48 front and 48 rear 1/4-inch TRS jacks
  • Eliminates rear-rack cable reaching for faster workflow
  • Per-channel toggle switches for Normalled, Half-normalled or Thru modes
  • Thru mode routes rear top input directly to front top output

48-Point Balanced TRS Patch Bay

The LORDWORLD S Patch Plus provides a fully balanced 48-point patch bay in a single rack unit. It centralises audio connections so engineers can route signals without reaching behind equipment racks. Front and rear panels each carry 48 quarter-inch TRS jacks for a clean signal path.

Quarter-Inch TRS Interface Limits

Each channel uses a 1/4-inch TRS connector rated for balanced operation. The physical jack spacing and toggle-switch density set the practical channel count at 48 points per rack unit. No additional I/O or digital conversion is built into the unit.

48 Channels Normalled Half-Normalled Thru

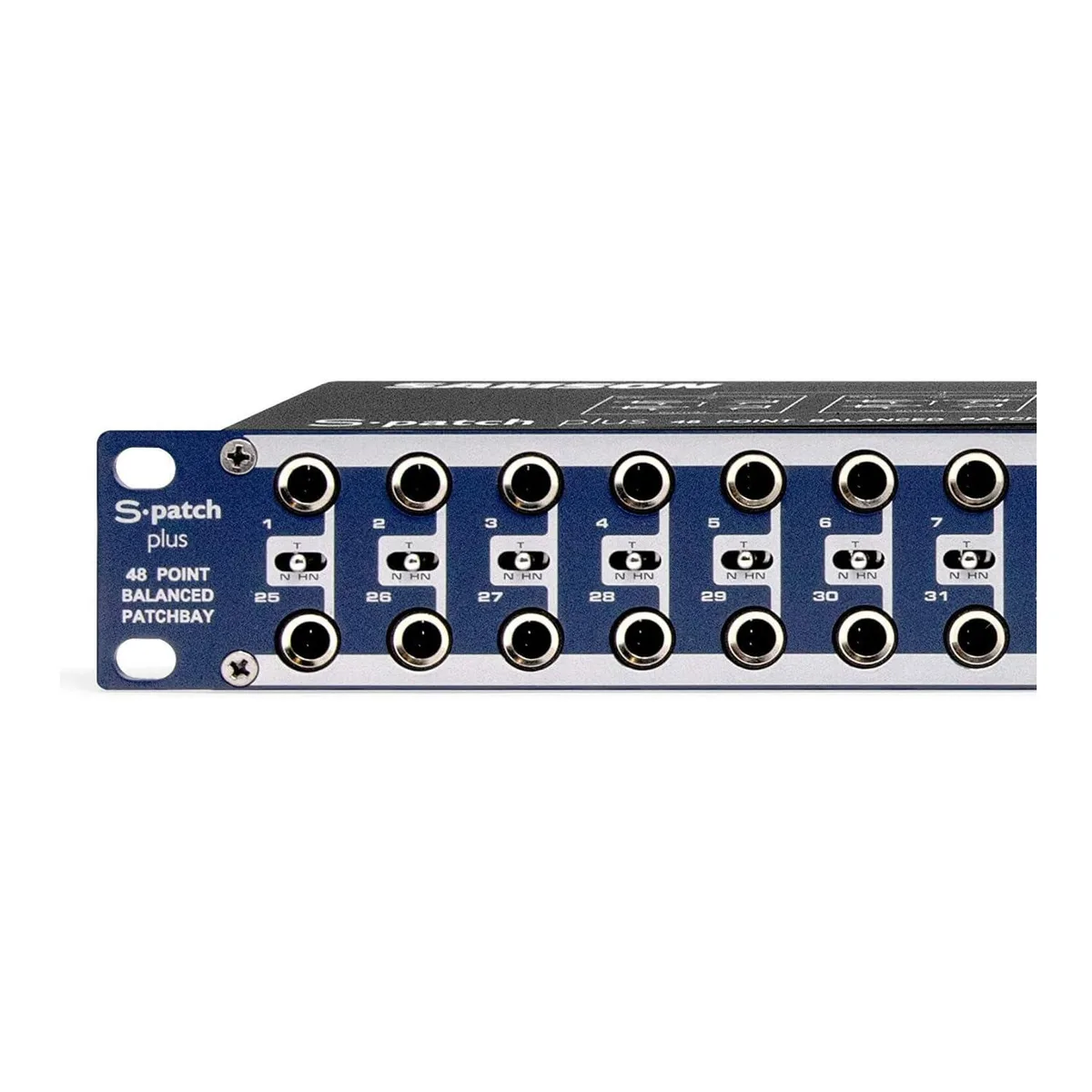

Miniature toggle switches let every channel operate in Normalled, Half-normalled or Thru mode. Thru mode passes signal directly from rear top input to front top output and from front bottom input to rear bottom output. Studios needing more than 48 simultaneous patch points must cascade additional bays.

Highlights

  • Central connection point for 48 balanced audio channels
  • Solid construction with 48 front and 48 rear 1/4-inch TRS jacks
  • Eliminates rear-rack cable reaching for faster workflow
  • Per-channel toggle switches for Normalled, Half-normalled or Thru modes
  • Thru mode routes rear top input directly to front top output

Specifications

BrandLORDWORLD

Questions about this item

How many connection points does the LORDWORLD S Patch Plus provide?

The unit offers 48 TRS points on the front panel and 48 on the rear, giving a single central location for all balanced audio routing.

What signal flow does Thru mode create on the S Patch Plus?

Thru mode passes the rear top input straight to the front top output, while the front bottom input feeds the rear bottom output with no normalled connection.

How are the 48 channels switched between Normalled, Half-normalled and Thru operation?

Each channel has its own miniature toggle switch on the front panel, letting you set the mode per pair without opening the rack.
